5 MDA 5SVA RCA / 5AV RCA / 3AV RCA • Specifications MDA 5SVA RCA / 5AV RCA / 3AV RCA • Connections
Connections
4
DISTRIBUTION AMPLIFIER
MDA SERIES
Front Panel, all MDA Models
MDA 3AV RCA
OUTPUTS
1 2 3
MDA 5AV RCA
OUTPUTS
1 2 3 4 5
INPUT
IN
LOOP
HIGH Z
75 Ohm
OUTPUTS
1
2
3
4 5
INPUT
IN
LOOP
HIGH Z
75 Ohm
OUTPUTS
1
2 3 100-240V ~ 50/60Hz
0.2A
100-240V ~ 50/60Hz
0.2A
INPUT
L
R
INPUT
L
R
MDA 5SVA RCA INPUT
IN
LOOP
HIGH Z
75 Ohm
OUTPUTS
1
2
3
4 5 100-240V ~ 50/60Hz
0.2A OUTPUTS 1 2 3 4 5
INPUT
L
R
MDA 3AV RCA,
Rear Panel
MDA 5AV RCA,
Rear Panel
MDA 5SVA RCA,
Rear Panel
11
5 7 10 6 9
4 8
5 7 10 6 9
4 8
2 7 10 3 9
1 8

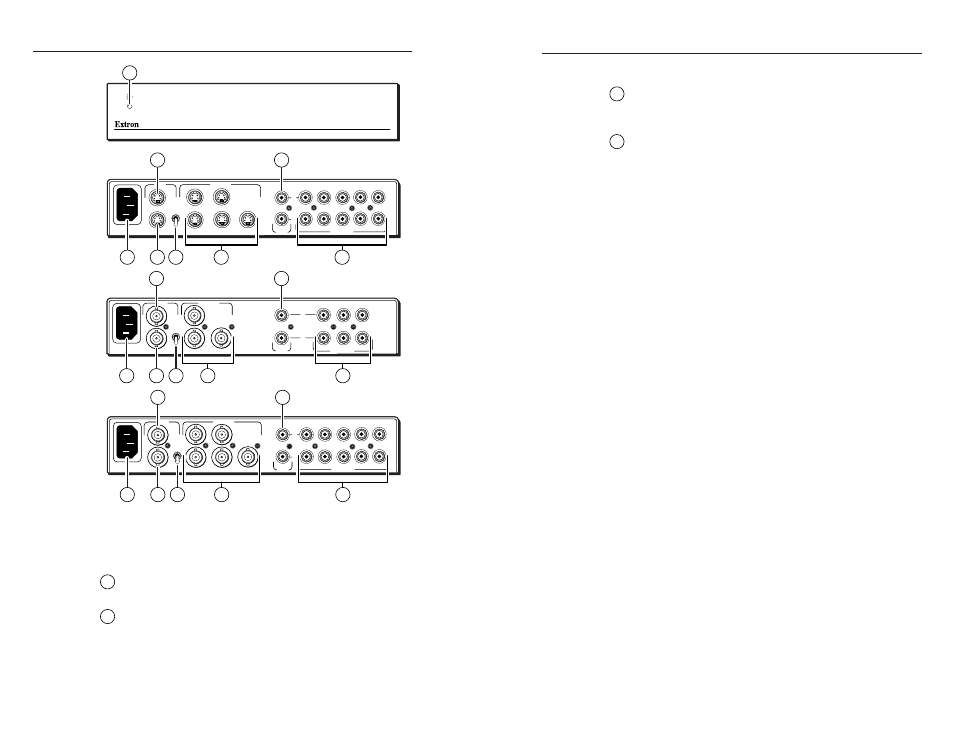

Figure 2 — MDA 3 and MDA 5 Series front and
rear panels
Audio connections (all models)
8 Audio Input connectors — Connect an unbalanced stereo
audio signal to these L(eft) and R(ight) RCA connectors.
9 Audio Outputs connectors — Connect up to three
(MDA 3AV RCA) or five (MDA 5AV RCA or
MDA 5SVA RCA) stereo audio devices to these L(eft) and
R(ight) RCA connectors.
Power
10 Power connector— Plug a standard IEC power cord into
this connector to connect the MDA to a 100 to 240VAC,
50 Hz or 60 Hz power source.
11 Power LED — The power LED indicates power is applied.
Specifications
Video
Gain ............................................... Unity
Bandwidth
MDA 5SVA RCA ............. 270 MHz (-3dB)
MDA 3AV RCA, MDA 5AV RCA
435 MHz (-3dB)
Differential phase error .............. 0.05º, 0 to 50 MHz
Differential gain error ................. <0.05%, 0 to 50 MHz
Video input
Number/signal type
MDA 5SVA RCA ............. 1 NTSC/PAL/SECAM S-video
MDA 3AV RCA, MDA 5AV RCA
1 NTSC/PAL/SECAM composite video
Connectors
MDA 5SVA RCA ............. 1 4-pin mini DIN female
MDA 3AV RCA, MDA 5AV RCA
1 BNC female
Nominal level
MDA 5SVA RCA ............. Y: 1.0V p-p (including sync), C: 0.3V p-p
MDA 3AV RCA, MDA 5AV RCA
1.0V p-p (including sync)
Minimum/maximum level
MDA 5SVA RCA ............. Y: 0.4V to 2.0V p-p with no offset
MDA 3AV RCA, MDA 5AV RCA
0.4V to 2.0V p-p with no offset
Impedance .................................... 75 ohms
Return loss .................................... -40dB @ 0 to 10 MHz
Maximum DC offset .................... 5.0V
