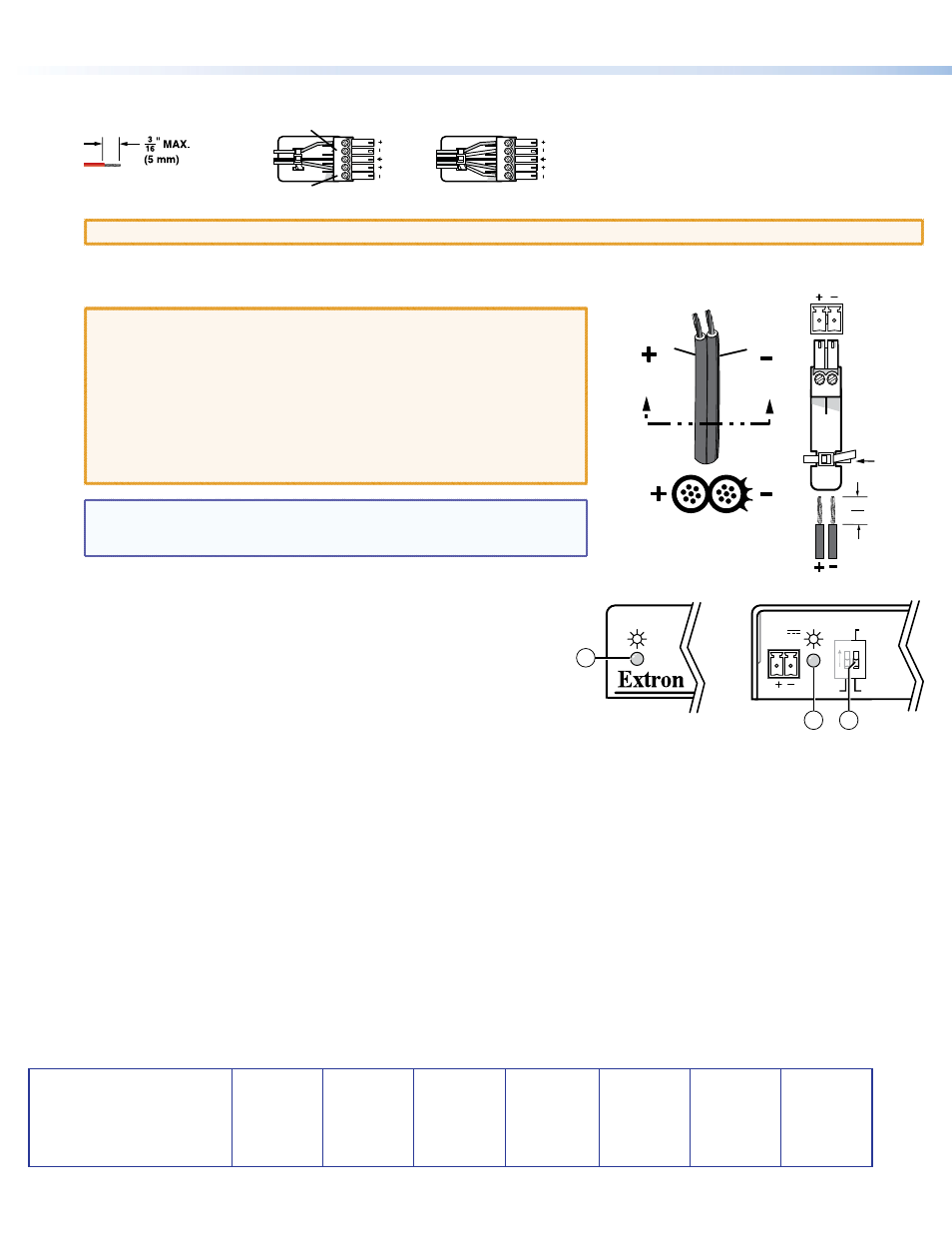

g Audio Output connector (Rx) — Connect a balanced or unbalanced stereo or mono audio device to the receiver via the Audio
captive screw connector. See the drawing below.
Unbalanced Stereo Output Balanced Stereo Output
Do not tin the wires!
Tip
Ring
Tip
Ring
Sleeves
Tip
No Ground Here
No Ground Here
Tip
Sleeves
LR LR
ATTENTION: Connect the sleeves to the ground contact. DO NOT connect the sleeves to the negative (–) contacts.
h Power connector — Connect an IEC power cord between the included 12 VDC power supply and a 100-240 VAC, 50-60 Hz source.
Connect the power supply to either unit as shown at right.
ATTENTION: This product is intended to be supplied by a Listed Power
Unit marked “Class 2” or “LPS,” rated 12 VDC, 1.0 A. Always use a
power supply supplied by or specified by Extron. Use of an unauthorized
power supply voids all regulatory compliance certification and may cause
damage to the supply and the end product. Unless otherwise stated,
the AC/DC adapters are not suitable for use in air handling spaces or
in wall cavities. The installation must always be in accordance with the
applicable provisions of National Electrical Code ANSI/NFPA 70, article 75
and the Canadian Electrical Code part 1, section 16. The power supply
shall not be permanently fixed to a building structure or similar structure.
NOTE: Only one power supply is required. A single power supply connected
to either unit in the pair powers both units. A power supply is included
with each transmitter.
Operation
Rear
(Tx)
LOCAL SPARE
REMOTE
DDC ROUTE
POWER
12V
0.8 A MAX
1 2
ON
2 3
1
After all devices are powered up, the system is fully operational. See the
definitions of the power indications (shown at right), below:
a
Power LED (front panel) —
Amber — The unit is receiving power, either locally or remotely (on the DTP
cable).
Green — The unit is powered on and is receiving an active DVI signal, either
on the DVI input if a transmitter, or transmitted on the DTP cable if a receiver.
b
Power LED (rear panel) —
Amber — The unit is receiving power remotely (on the DTP cable).
Green — The unit is receiving power locally.
c
DDC Route switch — This rear panel switch selects either the remote or local DVI display as the display data channel (DDC)
reference for EDID and HDCP communication.
If any problems are encountered, verify that the cables are routed and connected properly. If your problems persist, call the Extron S3
Sales and Technical Support Hotline that is closest to you, at the number shown below.
68-2341-50
Rev
A
12 12
Power Supply
Output Cord
SECTION A–A
Ridges
Smooth
A A
Captive
Screw
Connector
Tie Wrap
3"
16 (5 mm) Max.
