68-1518-50 Rev. C

09 11

2

© 2011 Extron Electronics All rights reserved.

www.extron.com

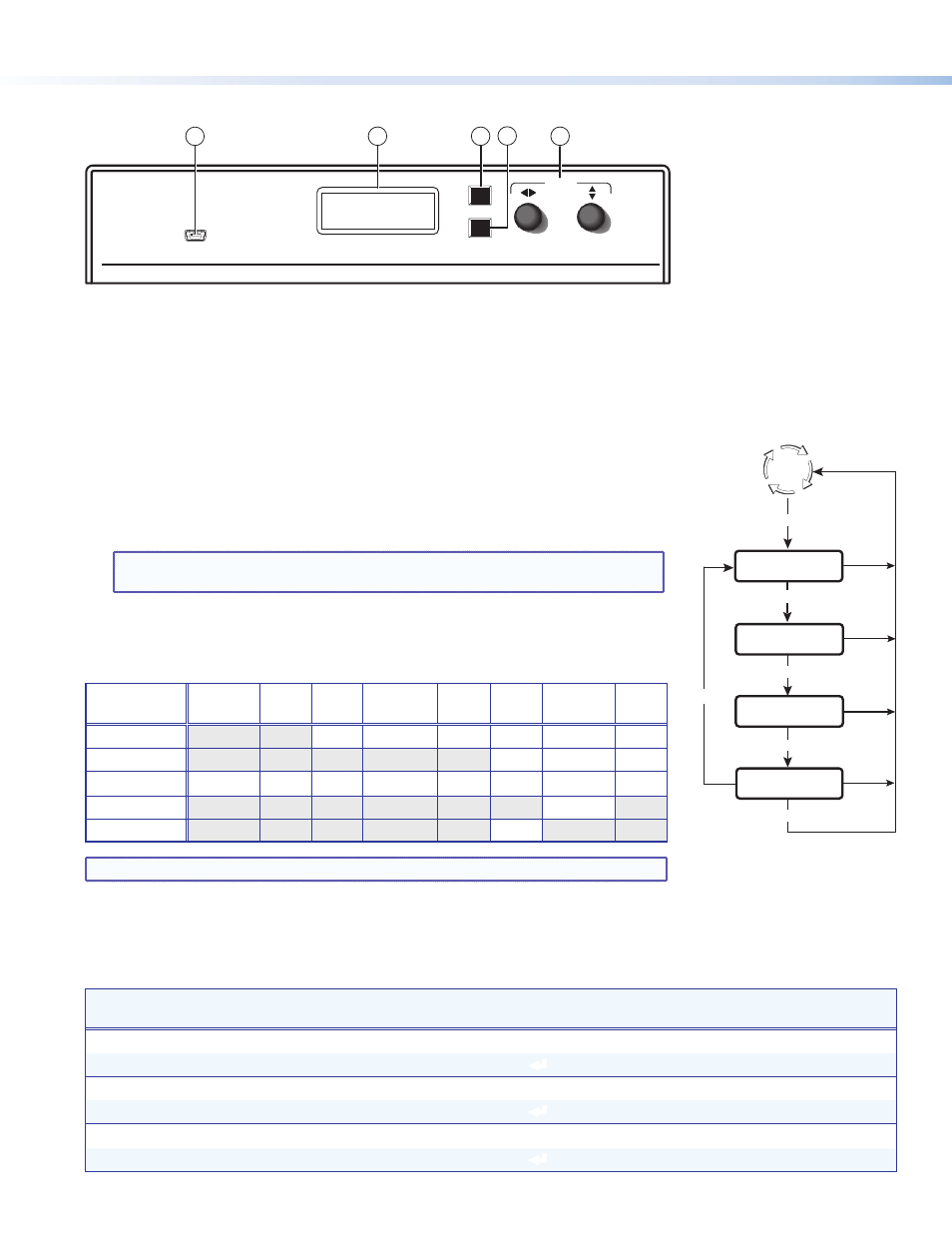

Front Panel Features

Extron

NEXT

MENU

DVC 501 SD

DIGITAL VIDEO CONVERTER

ADJUST

CONFIG

1

2

3

5

4

a

USB Config port

b

LCD screen

c

Menu button

d

Next button

e

Adjust knobs

Configuring the DVC 501 SD Using the Front Panel

Menu selections are displayed on the LCD screen. To use any menu, press the Menu button repeatedly until the desired
menu is displayed (see the menu flow diagram below). Press the Next button repeatedly until the desired submenu appears.
Rotate an Adjust knob to select an item from a submenu. To return to the main menu at any time, press the Menu button.
After 30 seconds of inactivity, the screen displays the default cycle.

1.

From the Output Config submenus, use the Adjust knobs to select the output signal
type and the sync polarity to match the requirements of the display device.

2.

From the Advanced Config menu, Test Pattern submenu, select the Crop, Crosshatch,
Colorbars, and Grayscale test patterns to confirm that the settings of the display device
are correct.

NOTE: Test pattern timings are based on the incoming SDI signals and are not

displayed if an active signal is not present.

3.

Use the Audio Config submenus to configure the audio as desired.

Supported Input Resolutions

Supported

Resolutions 23.98 Hz 24 Hz 25 Hz 29.97 Hz 30 Hz 50 Hz 59.94 Hz 60 Hz
720p

X

X

X

X

X

X

1080i

X

X

X

1080p

X

X

X

X

X

X

X

X

NTSC

X

PAL

X

NOTE: The output resolution always matches the input resolution.

Simple Instruction Set (SIS) Commands

When setting up the DVC 501 SD, you can issue SIS commands from your computer via RS-232 or USB as an alternative to
the front panel controls. See the DVC 501 SD Series User Guide for a complete list of available SIS commands.

Command

ASCII command

(Host to Converter)

Response

(Converter to Host)

Additional Description

Mute video

1B

Vmt1]

Mute the video output.

Unmute video

0B

Vmt0 ]

Display the video output.

Mute audio

1Z

Amt1 ]

Mute the audio output.

Unmute audio

0Z

Amt0 ]

Unmute the audio output.

Enable lock (executive) mode

1X

Exe1]

Lock all front panel functions.

Disable lock mode

0X

Exe0 ]

Enable all front panel functions.

AUDIO

CONFIG

30 sec.

Default

Cycle

Menu

EXIT MENU

PRESS NEXT

OUTPUT
CONFIG

30 sec.

30 sec.

Menu

ADVANCED

CONFIG

30 sec.

Menu

Menu

Menu

Next
