12 HTL 2231D
Engl
ish

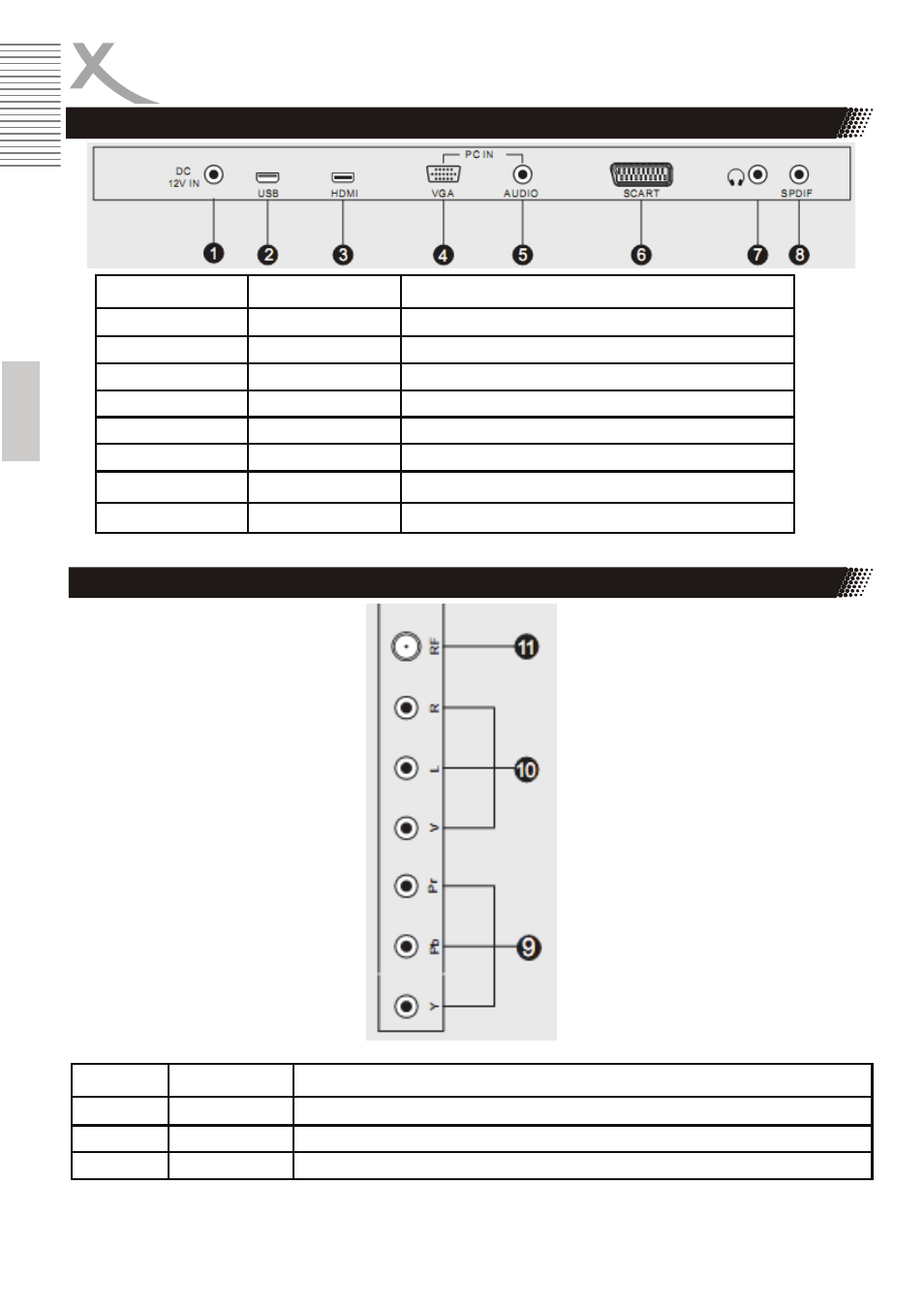

Connectors
Name Function Description
DC 12V In DAC power input
USB USB port for PVR function
HDMI HDMI Audio/Vido Input
PC IN VGA VGA signal of computer input
PC IN AUDIO Audio Input for VGA
SCART Euro AV (Audio/Video) input
HEADPHONE Headphone
SPDIF Digital Sound output
No.
1
2
3
4
5
6
7
8
Rear Side Left
Bottom Rear Side
No. Name Function Description
9 Y Pb Pr Y video input for component
10 V / L / R CVBS video input and Stereo (R/L) audio input for CVBS and YPbPr
11 RF RF Antenna input for DVB-T o analogue TV
