ADA 6 Component ADA 6 Component
ADA 6 Component
3 2
The Extron ADA 6 Component is a component/HDTV (high-
definition television) distribution amplifier. It is designed for use
when one component/HDTV video signal must be sent to up to
six output devices (11 with looping) without loss of signal quality.
Features
• Accepts and outputs component video.
• High bandwidth provides signal distribution with no loss of
picture quality.
• Looping allows two amplifiers to be connected to provide up to
11 outputs.
Installation
To install the ADA 6 Component, do the following:
1 . Remove power cords from the amplifier and all input and
output devices.
2 . If you are rack mounting the amplifier, attach it to a rack
front panel (Extron part number 60-126-01) or rack shelf
(Extron part number 60-030-01), and then mount the
assembly in the rack.
3 . Connect the input BNC connectors to the signal source, such
as a high-definition television (HDTV). There are three
connectors: R-Y, B-Y, and Y.
4 . If you are looping amplifiers, choose the unit that will be #1,
and connect one set of its outputs to the input on
amplifier #2.
5 . Connect each output to the R-Y, B-Y, and Y connectors on its
destination, such as a monitor or large screen projector.
6 . Attach a BNC 75-ohm termination plug to each unused
output connector.
7 . Reattach power cords, and apply power to the amplifier and
to all input and output devices.
Operation

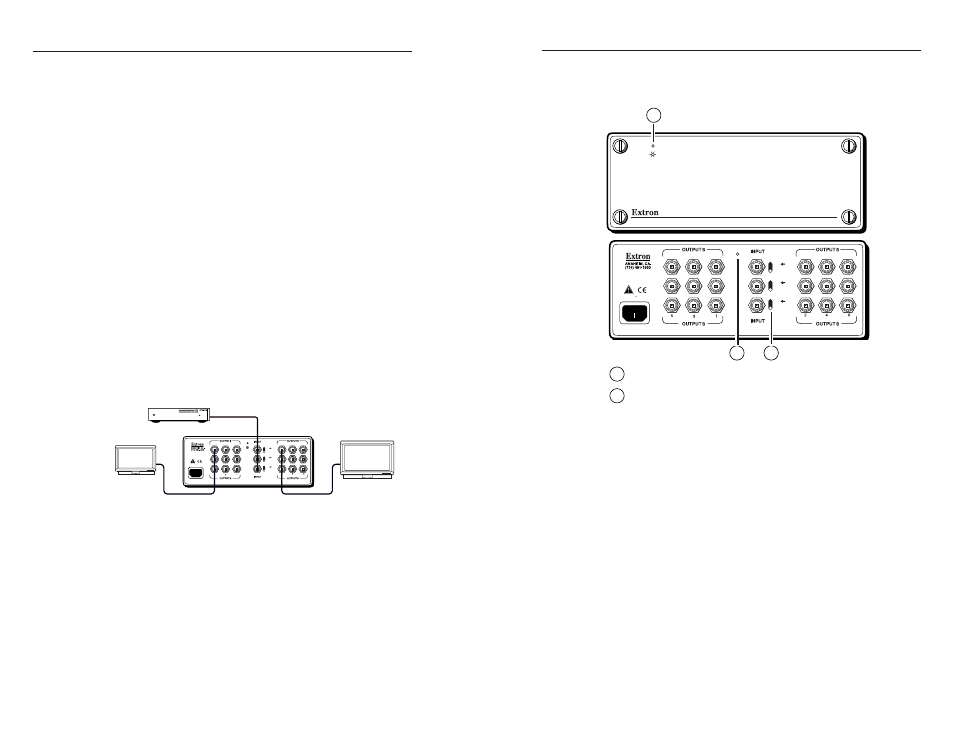

The figure below shows the amplifier’s front and rear panels.
1 Power LEDs — Light to indicate that the amplifier is on.
2 AC/DC Coupling switches (3) — Normally, set to AC (up).
If the application requires DC coupling, set to DC (down).
Specifications
Video
Gain ................................................ Unity
Bandwidth ..................................... 180 MHz (-3dB), fully loaded
Video input
Number/signal type ................... 1 RGsB, component video, S-video,
composite video
Connectors ................................... 3 BNC female
Minimum/maximum levels ....... Analog ....... 0.5V to 1.5V p-p with no DC
offset at unity gain
Impedance .................................... 75 ohms
Horizontal frequency .................. 15 kHz to 150 kHz
Vertical frequency ....................... 15 Hz to 140 Hz
Return loss .................................... -38dB @ 5 MHz
AC/DC coupling ......................... Yes, switch-selectable
ADA 6 Component
INPUT
HDTV Large Screen
Display
HDTV CRT
HDTV Receiver
R-Y
B-Y
Y
R-Y
B-Y
Y
R-Y
B-Y
Y
R-Y
AC DC
AC
DC
AC
DC
COUPLING
B-Y
Y
R-Y
B-Y
Y
R-Y
B-Y
Y
R-Y
B-Y
Y
100- 240 V 50/60 Hz 0.20A MAX
1 2
R-Y
B-Y
Y
R-Y
B-Y
Y
R-Y
B-Y
Y
R-Y
AC
DC
AC
DC
AC
DC
COUPLING
B-Y
Y
R-Y
B-Y
Y
R-Y
B-Y
Y
R-Y
B-Y
Y
100- 240 V 50/60 Hz
0.20A MAX
ADA 6 Component
Component/HDTV Distribution Amplifier
