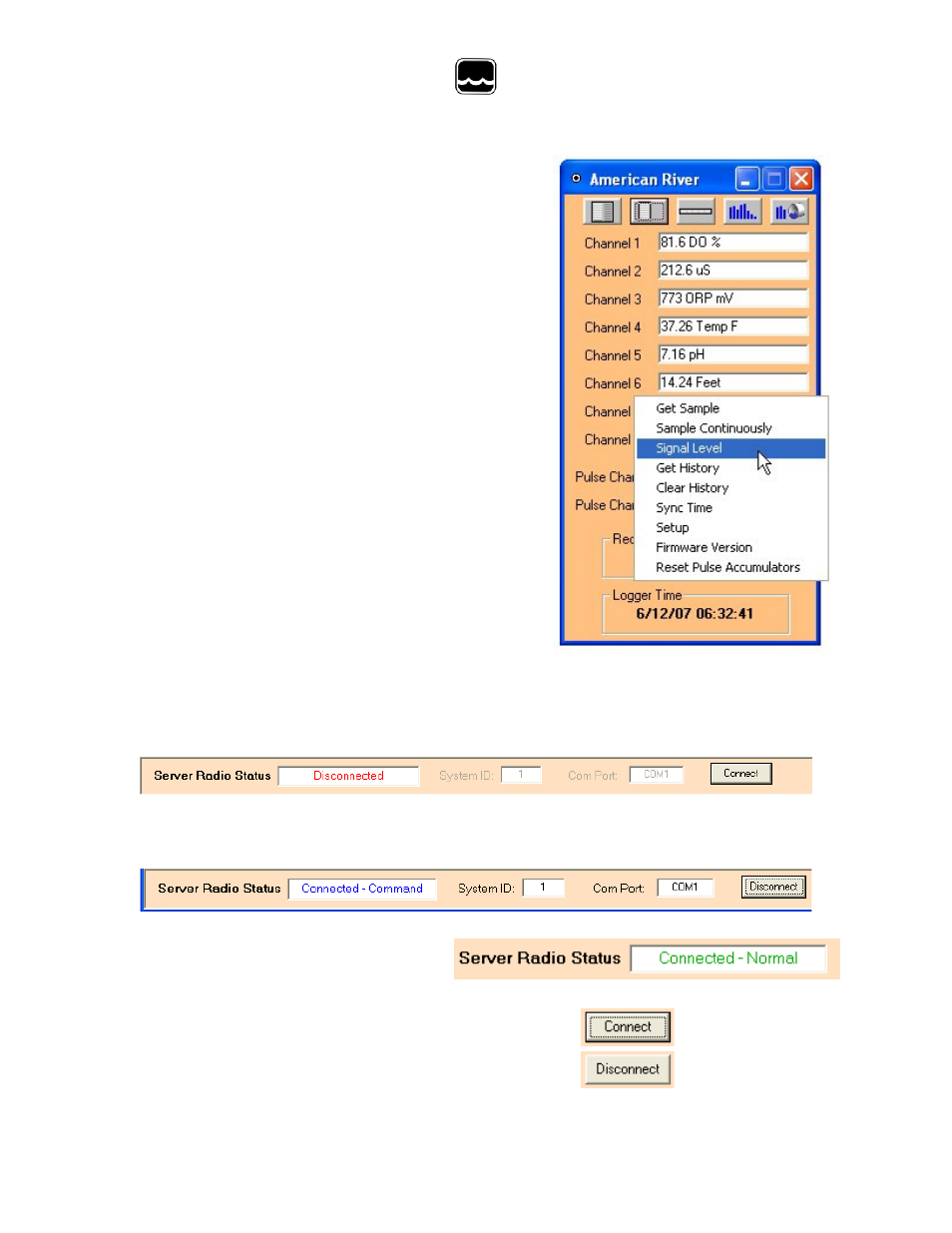

These actions are also available by moving the
cursor over an open data window and right clicking
the mouse. A menu will be displayed with the
actions described above as well as two others.
Firmware Version: This function returns the
revision of firmware in the data logger that the
modem is connected to.
Reset Pulse Accumulators: This action will
Reset the digital pulse accumulators to zero.
VIII. Server Status Bar
The server status bar is located at the bottom of the
main screen and shows the connection status of the server. The System ID field
should always read one, other system Id’s are not currently supported by this
software. The COM port is also shown for reference. If the server is disconnected
from the software, the status is shown and the connection button reads “Connect”.
Upon a successful connection, the status reads Command, indicating that the server
is ready to receive commands from the software.
When commands have been correctly
received by the client radio, the status
reads Normal.
Use the dual-function connection button to Connect
and Disconnect the server from the software.
