Per ulteriori informazioni, vedere, Figura 13, Figura – Xylem e-NSCS User Manual
Page 64: Figura 15, Figure 13, Figure 14, Figure 15, Figure 10, Gure 11, Figure 12
13.
T [°C] Hv [m]
20
0,2
30
0,4
40
0,7
50
1,2
60
2,0
70
3,1
80
4,8
90
7,1
100
10,3
110
14,6
120
20,2

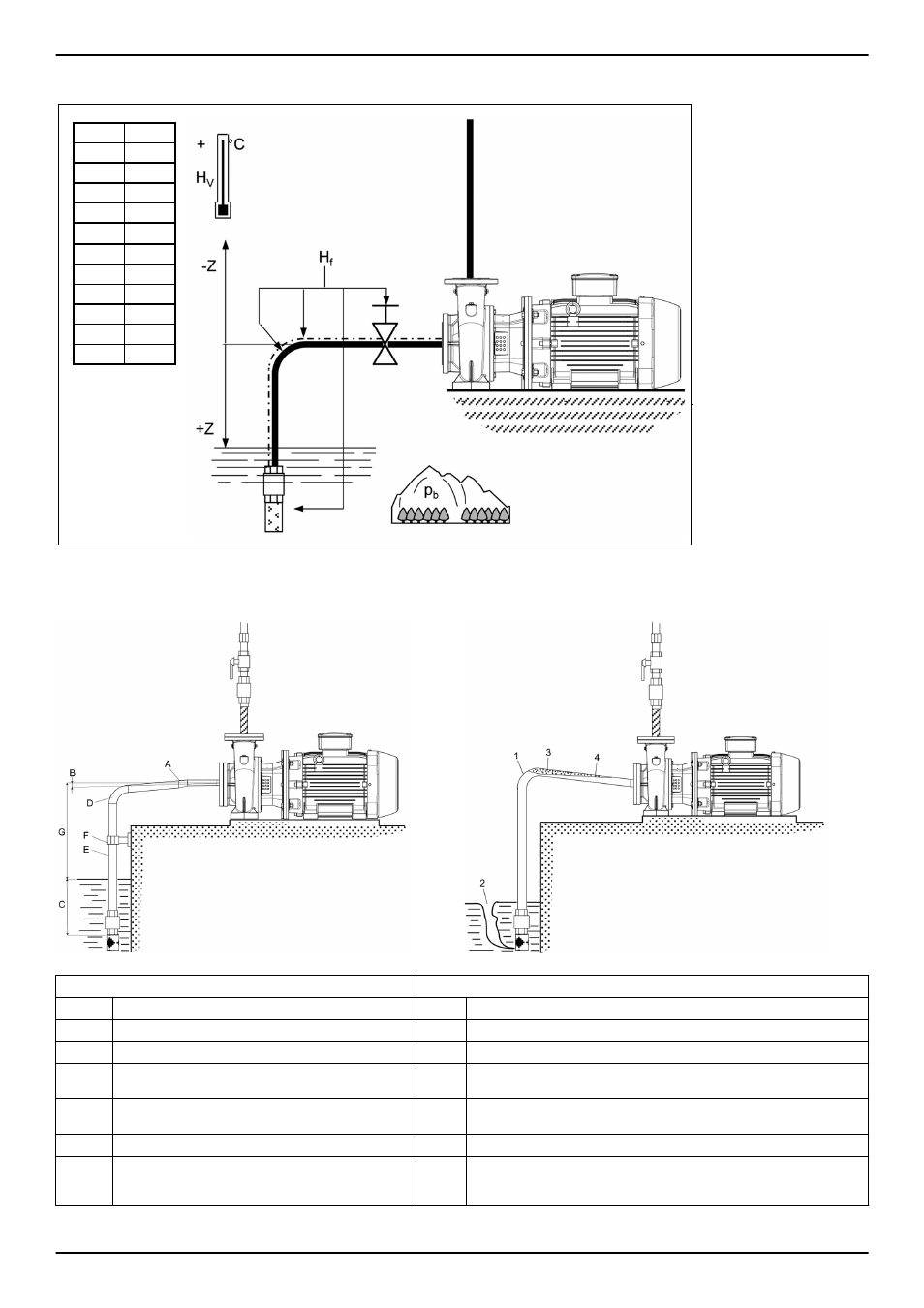

Appendice tecnica • Technical appendix • Technischer Anhang • Teknik ek • Техническое приложение
14.
15.
Istallazione corretta
Istallazione non corretta
A
Riduzione eccentrica
1
Curva stretta; elevata resistenza di flusso
B
Pendenza positiva
2
Immersion insufficiente; aspirazione aria
C
Buona immersione
3
Pendenza positiva; sacche d'aria
D
Curva larga
4
Diametro del tubo < diametro bocca della pompa; elevata resistenza di
flusso
E
Diametro tubo d'aspirazione > diametro bocca della
pompa
F
Morsetto tubo
G
L'aspirazione soprabattente dipende dalla pompa e
dall'installazione. In condizioni normali il dislivello non
è superiore a 5-6 m.
it • en • fr • de • tr • ru
64
