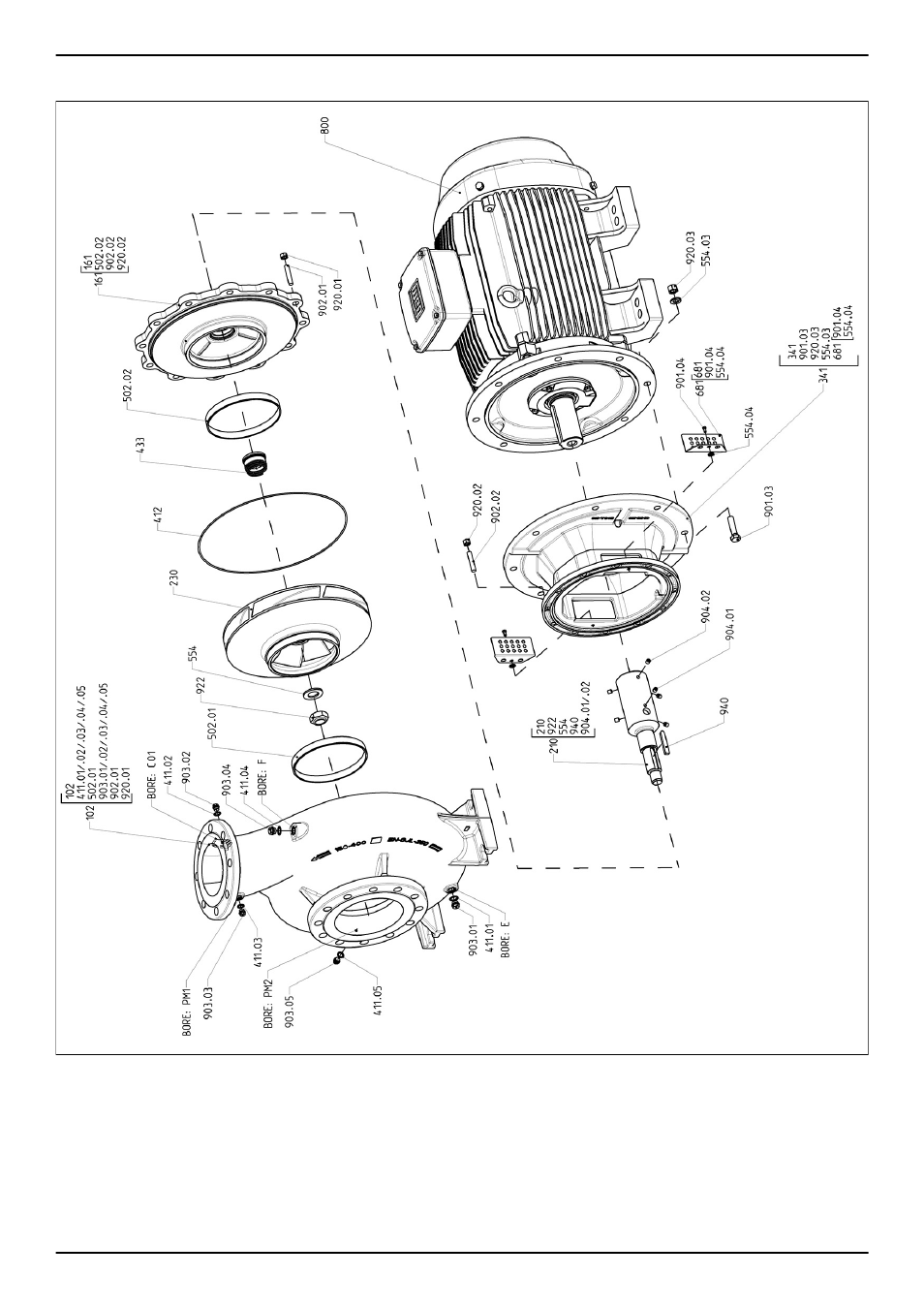

Figura 3, Figure 3, Abbildung 3 – Xylem e-NSCS User Manual
Page 57: Şekil 3, Ye bakın, Рис. 3
3.
NSCS 100
-315/1
10/W4...
NSCS 100-315/150/W4...
NSCS 100-315/185/W4...
NSCS 100-315/220/W4...
NSCS 100-315/300/W4...
NSCS 100-400/300/W4...
NSCS 100-400/370/W4...
NSCS 100-400/450/W4...
NSCS 125-400/370/W4...
NSCS 125-400/450/W4...
NSCS 125-400/550/W4...
NSCS 125-400/750/W4...
NSCS 150-400/550/W4...
NSCS 150-400/750/W4...
NSCS 150-400/900/W4...
102
Corpo a spirale • Volute casing • Spiralgehäuse • Salyangoz gövde • Спиралевидный кожух
161
Copertura corpo pompa • Casing cover • Gehäusedeckel • Kutu kapağı • Крышка кожуха
210
Albero • Shaft • Welle • Şaft • Вал
230
Girante • Impeller • Laufrad • Çark • Рабочее колесо
341
Lanterna motore • Motor adapter • Motoraufnahme • Motor adaptörü • Переходник крепления двигателя
411
Guarnizione • Gasket • Flachdichtung • Conta • Прокладка
412
Guarnizione O-ring • O-ring • O-Ring • O-ring • Уплотнительное кольцо
433
Tenuta meccanica • Mechanical seal • Gleitringdichtung • Mekanik keçe • Механическое уплотнение
502
Anello usura • Wear ring • Spaltring • Aşınma halkası • Компенсационное кольцо
