Xylem MagFlux Day flow logger function - Manual (Page 18)

18
22-06-2009
Device Type Frequency Range Max Range Min Precision SensorName
2 10 12,7480011 0 1.0E-5 MagFlux1
2 0 3531,466797 0 1.0 MagFlux1
Range max for serial 1 is a constant at 100m3 ( 3531,466797 ft³) (This is a default scale of
the Y axis)
Unit Value ID
GPM 600
ft³ 1440
Serial 1 ft³
09-05-2009 00:00:00 0,433355987
10-05-2009 00:00:00 0,82404983
11-05-2009 00:00:00 0,816733658
12-05-2009 00:00:00 0,82700789

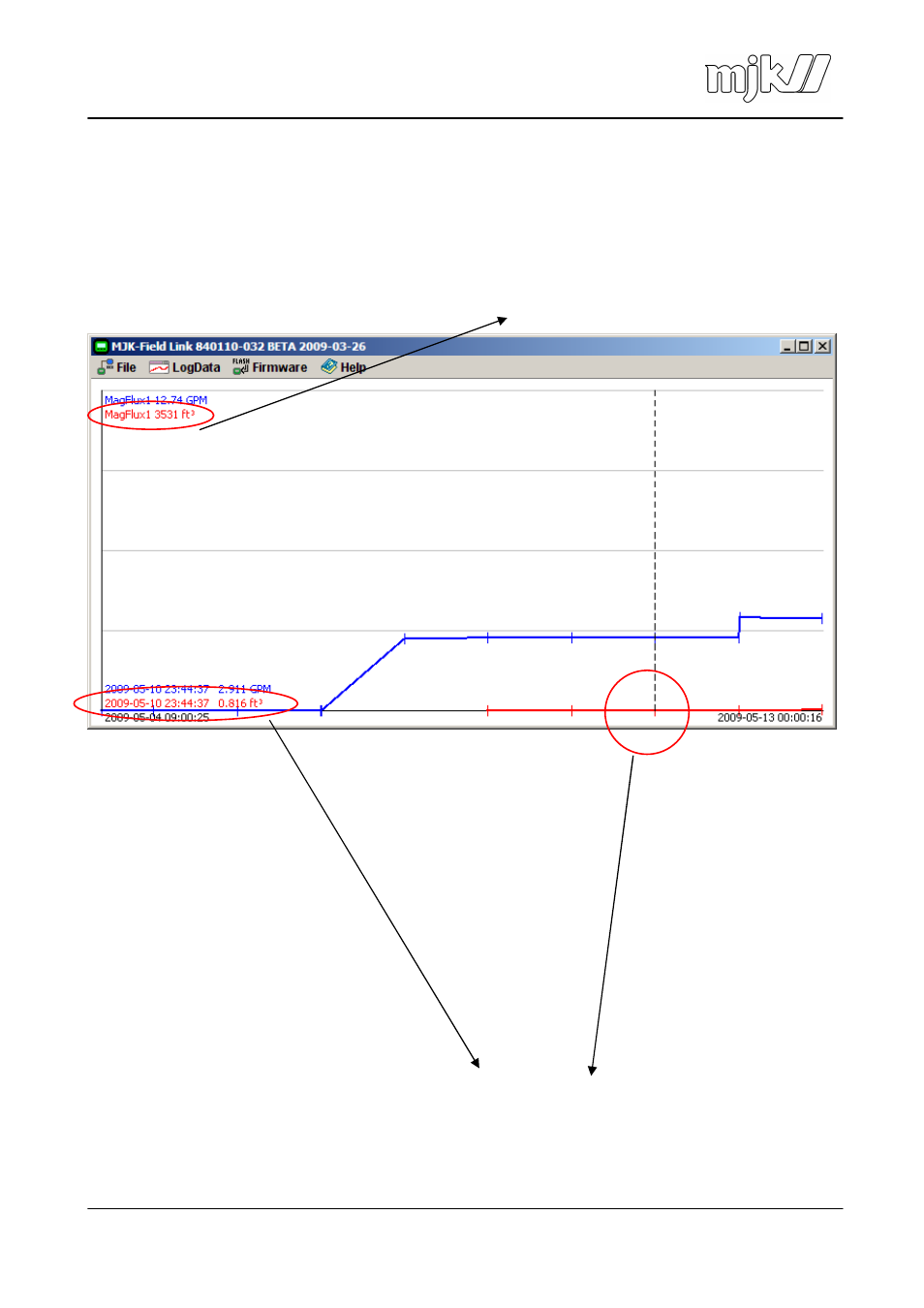

Data can be
viewed as a graph
by launching the
file using the MJK
Field Link Ver.:
840110-035 or
later.
The totalized Day
Flow is shown as
the red horizontal
graph.
By moving the
curser to the log
points, the value
can be seen on the
left side of the
screen.
