Connect a PC using MJK Field Link to the MagFlux Flow Meter
Using the Display USB connection.
1. Unscrew the four screws that hold the Display Unit.

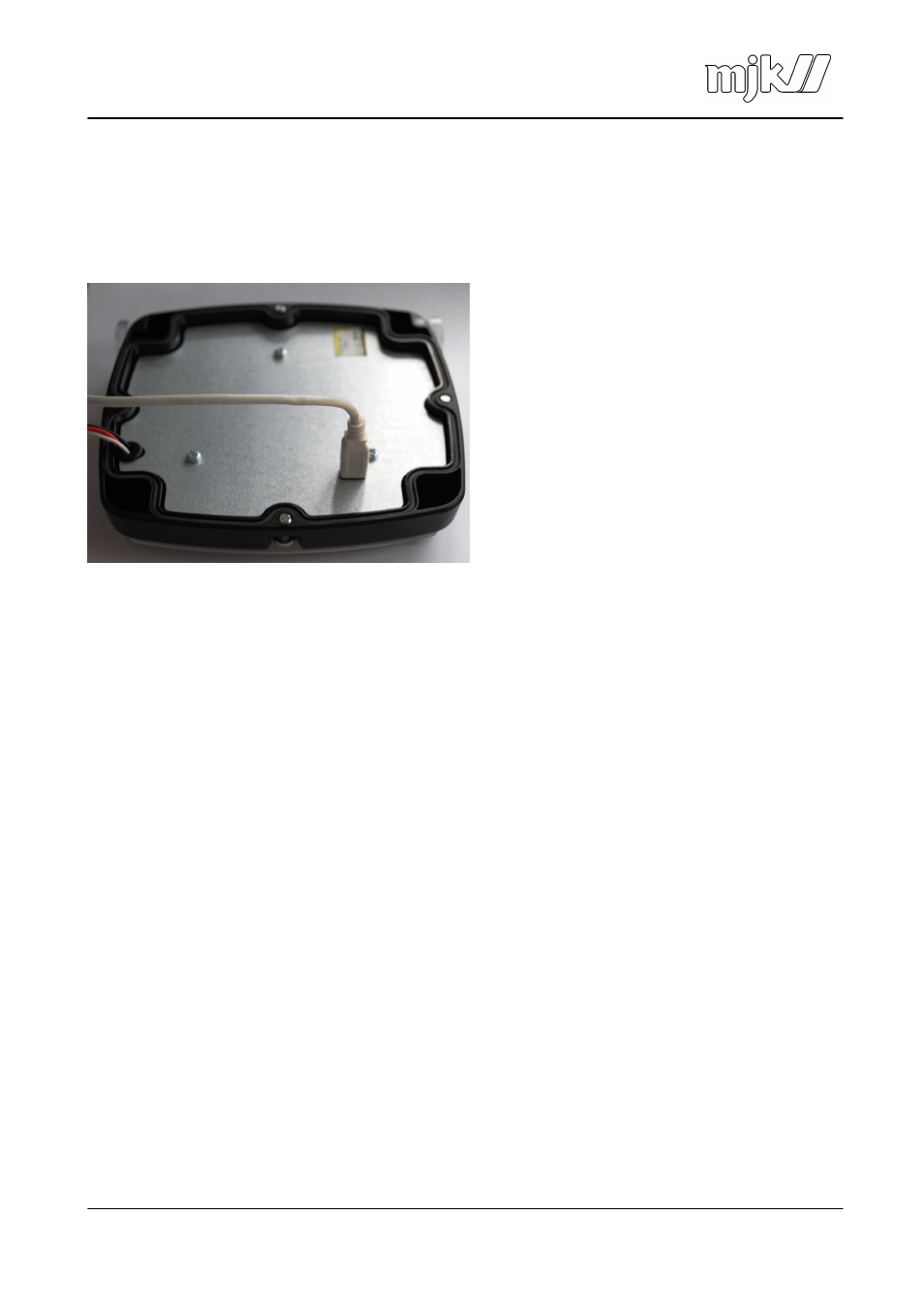

2. Lift out the Display Unit and connect a USB mini A/B cable to the mini USB female B
connector on the rear of the front panel.
3. Connect the other end of the USB cable (max. 4.7 metres long) to the PC.
4. Launch the MJK Field Link Ver.: 840110-035 supplied with the display
5. Select "File" in the menu bar and click "Mount USB".
If the connection is successful, a "Device Clock" window for PC and device time
synchronisation is displayed (if PC and device clock were out of sync.) along with a Field
link status display. Press OK if you wish to synchronize the PC and Display clock.
If the connection fails, first remove the cable and then re-connect it.
