Xylem MICRO-FLOW FLOW VERIFICATION SENSORS - Manual (Page 5)

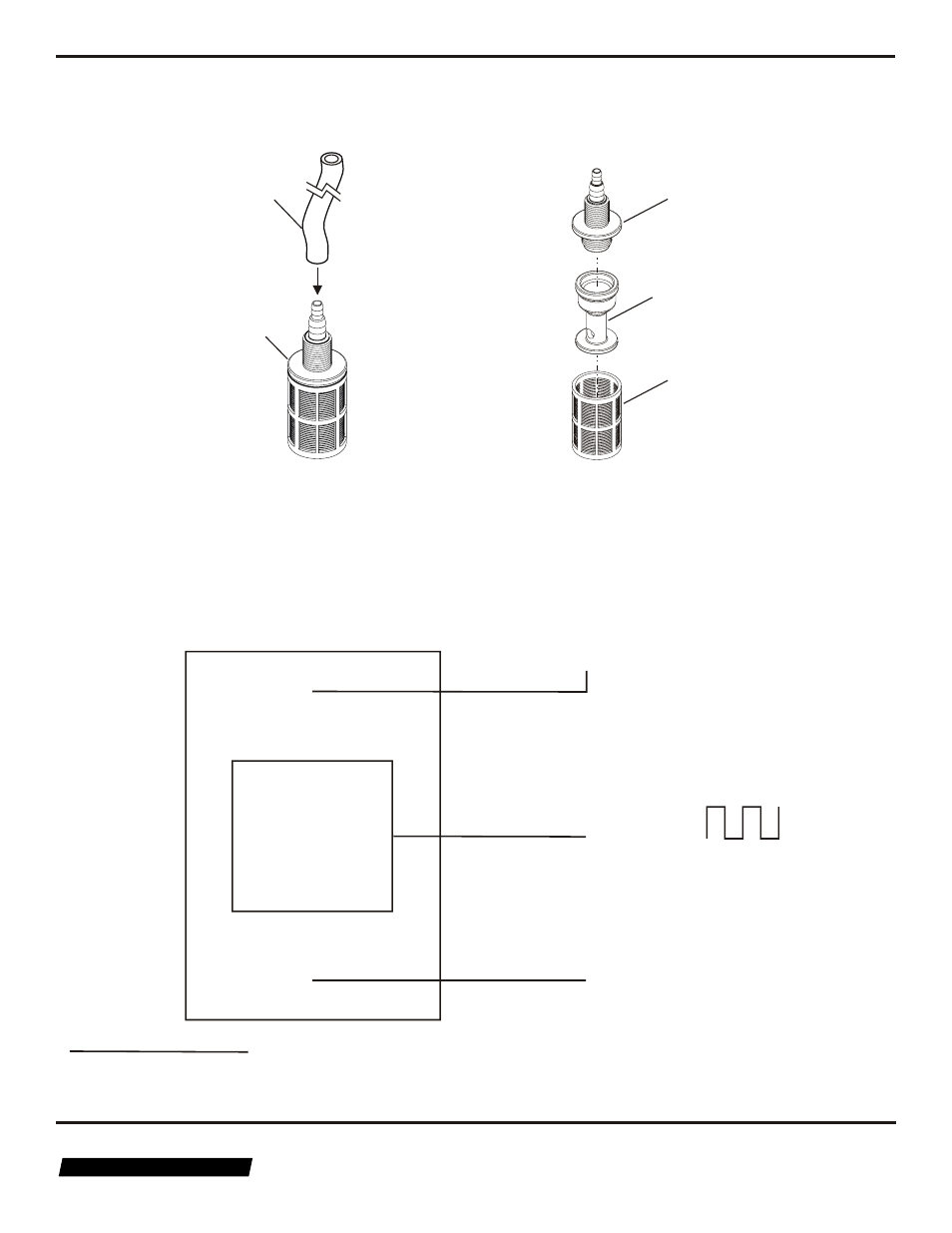

Wiring Diagram
Foot Strainer
Strainer Adapter
Strainer Body
Screen Strainer
Suction Tubing
Part Number
C-304X
Exploded View
When purchasing the FVS ( Flow Verification Sensor) you will also receive a Foot Strainer (see diagram below). This will
prevent any small particles from entering and clogging the Micro Body.
FVS Page 4
Sensor
+
_
Red
0v dc
(True digital Square-wave output)
+5v dc
Bare
Black
Ground
Sensor connections:
Input voltage (vdc) 8 to 28 vdc
Output voltage (v) “high state” 4 80 v dc min (5 vdc normal)
Output voltage (v) “low state” 0 2v dc max
(signal output)
Industries, Ltd.
Blue-White
Industries, Ltd.
®
NOTE: Blue-White recommends using the foot strainer part number, C-340X on Peristaltic pumps only.
Diaphragm pumps require a foot valve/ strainer. The part number for the foot valve/ strainer is C-340A.
