Exploded View and Parts List

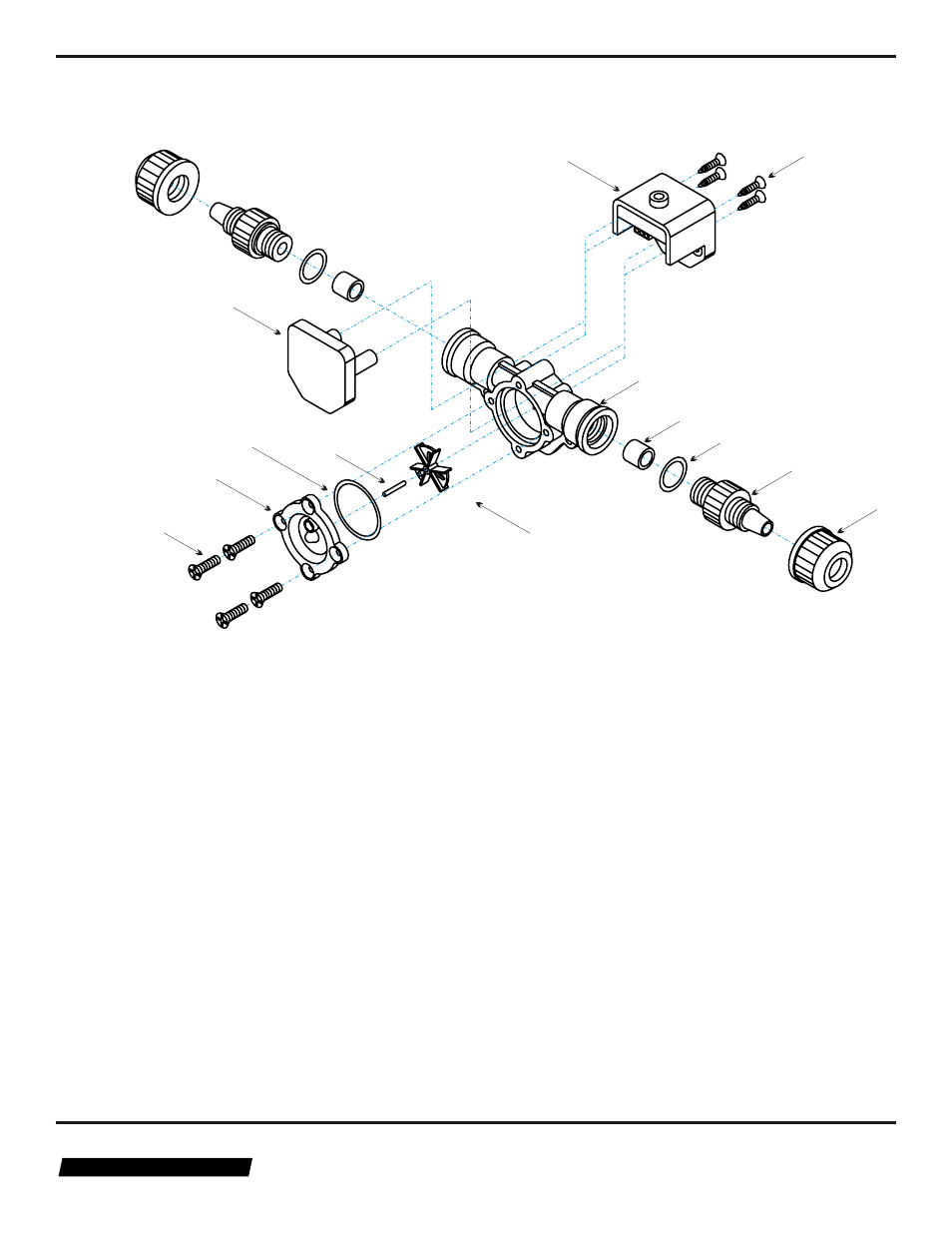

NOTE: The “Exploded View” drawing illustrates assembly of the FVS (Flow Verification Sensor) If your
FVS needs to be cleaned refer to this drawing when reassembling the unit.
Item Description Catalog number Quantity
1. Micro-Body .031 30-300ml/min 90002-226 1
.062 100-1000ml/min 76001-301
.093 200-2000ml/min 76001-302
.125 300-3000ml/min 76001-303
.156 500-5000ml/min 76001-304
.187 700-7000ml/min 76001-305
2. Tubing, PVC 76001-299 2
3. O-Ring, Viton 90003-012 2
4. Adapter, PVDF 90002-038 2
. (Optional Threaded Fitting PVC)
5. Tube Nut 90002-047 2
6. Sensor Assembly 90010-252 1
7. Screws, SS 90011-113 4
8. Screws, SS 90011-081 4
9. Lens Cap, PVC (Optional PVDF) 90002-227 1
10. Axel, PVDF 90007-592 1
11. Paddle, PVDF 90002-230 1
12. O-Rng, Viton 90003-143 1
1
2
3
4
5
6
6 7
8
9
10
11
12
