Overview LFOx1400(-ID)
28 ba75523e04 07/2011
1 Overview
1.1 Structure and function
The LFOx1400(-ID) is a modular sensor for conductivity, dissolved oxygen
(DO) and temperature. It consists of two basic components:
 Conductivity basic module, according to the quadripole measuring princi-
ple, with integrated temperature sensor
 Removable dissolved oxygen module, according to the galvanic measur-
ing principle

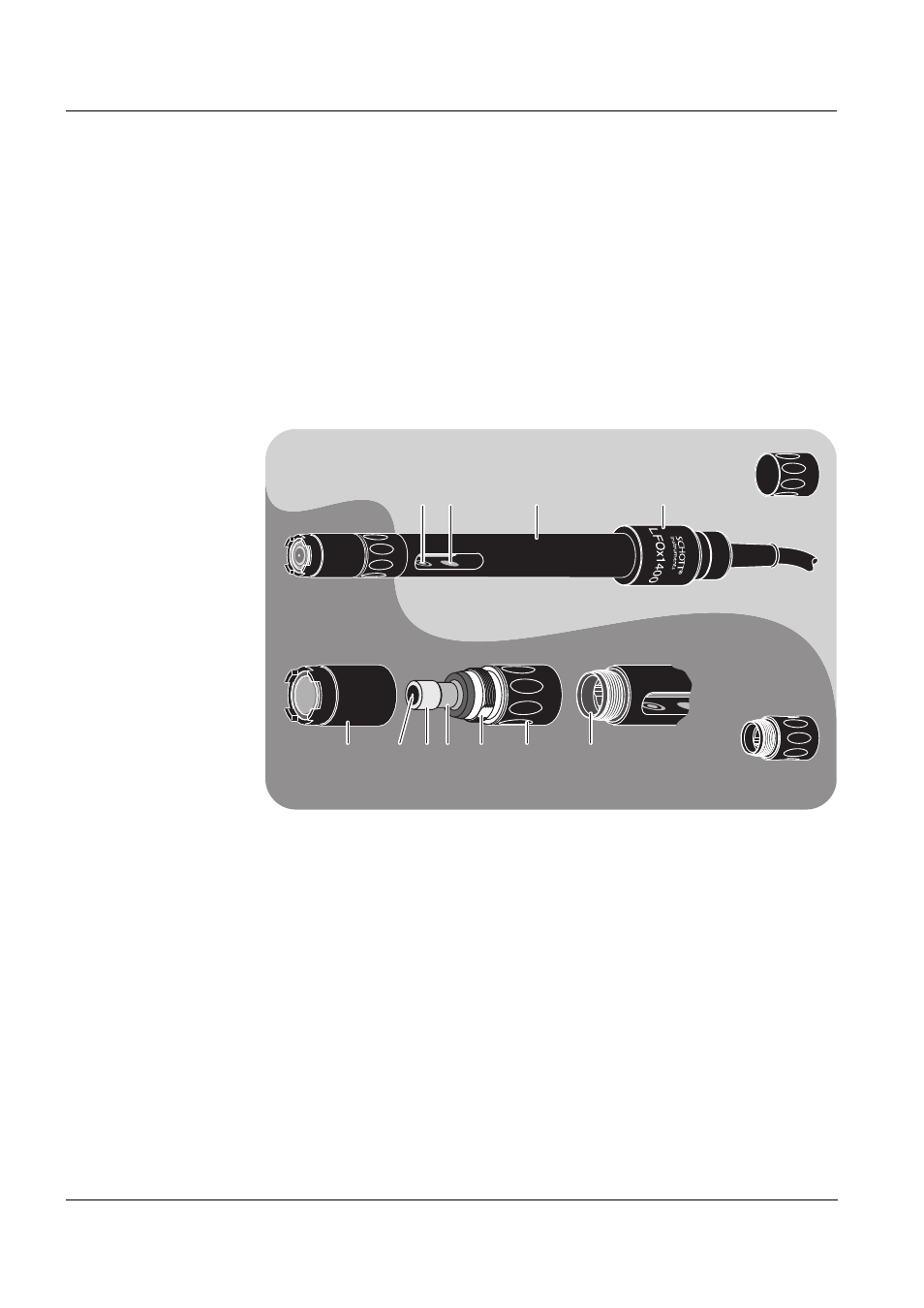

Structure of the
LFOx1400(-ID)
1 Voltage electrode (inside, 2x)
2 Current electrode (ring, 2x)
3 Temperature sensor in a graphite enclosure
4 Shaft
5 Connection head
6 Membrane cap (filled with electrolyte solution)
7 Gold working electrode (cathode)
8 Insulator
9 Lead counter electrode (anode)
10 Screw thread base with ventilation area
11 Cap nut
12 Plug connection
13 Closing cap for conductivity basic module
14 Closing cap for DO module
4 1, 2 3 5
7 8 9 6 11 10 12
13
14
Conductivity basic module
Dissolved oxygen (DO) module
