Appendix A: Calculations for Partially Filled Round Pipes
B
C
B
C
0.01
0.0013
0.51
0.4027
0.02
0.0037
0.52
0.4127
0.03
0.0069
0.53
0.4227
0.04
0.0105
0.54
0.4327

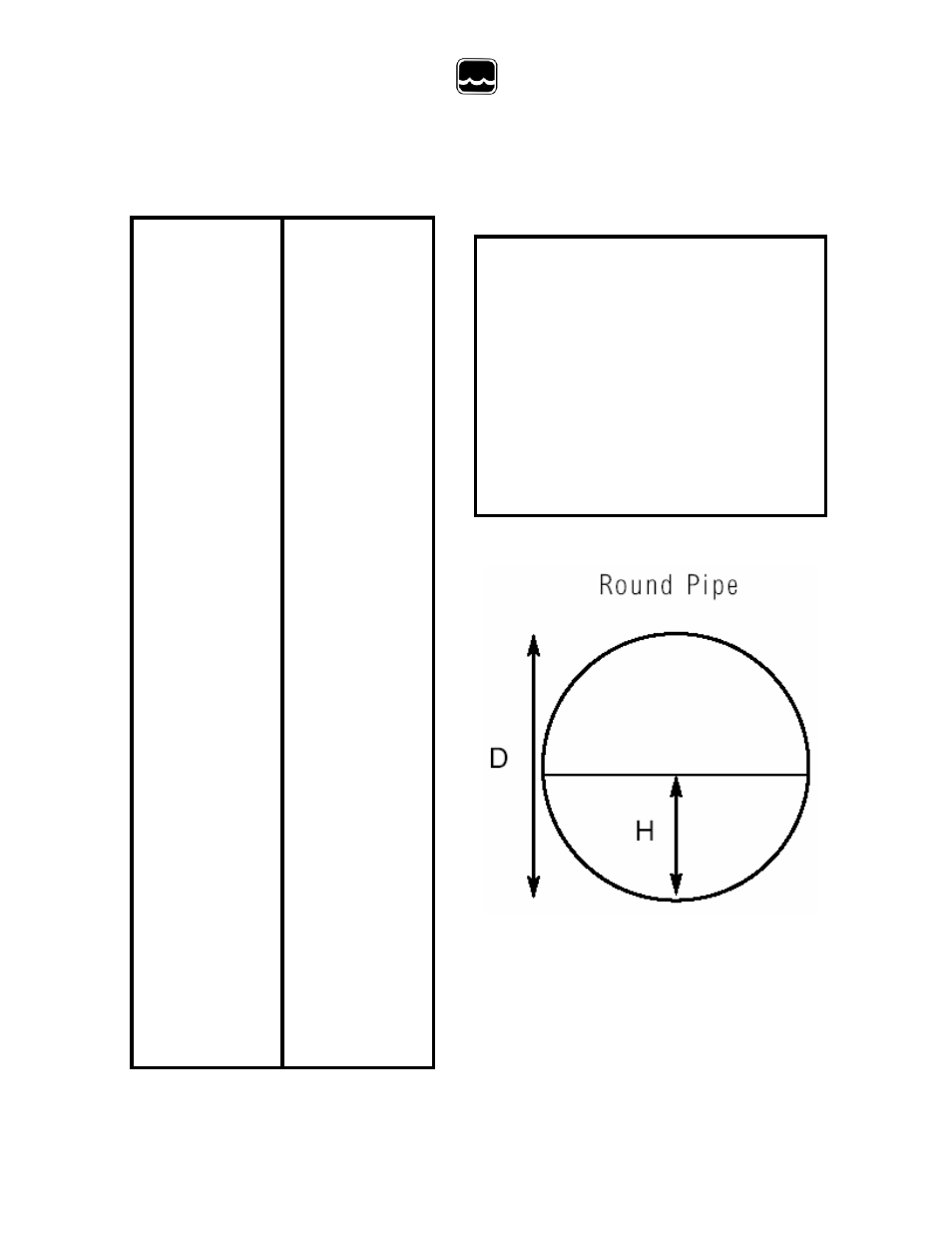

H= Height of water; D= Diameter of pipe
(in feet)
0.05
0.0147
0.55
0.4426
H/D = Column B
0.06
0.0192
0.56
0.4526
0.07
0.0242
0.57
0.4625
Read Column C adjacent to your pipe’s B
0.08
0.0294
0.58
0.4723
0.09
0.0350
0.59
0.4822
C x D2 = Filled area, A (sq.ft. )
0.10
0.0409
0.60
0.4920
0.11
0.0470
0.61
0.5018
A x Average Velocity = Volumetric flow
0.12
0.0534
0.62
0.5115
(CFS)
0.13
0.0600
0.63
0.5212
0.14
0.0668
0.64
0.5308
CFS x 448.83 = Gallons/minute (GPM)
0.15
0.0739
0.65
0.5404
0.16
0.0811
0.66
0.5499
GPM x 1440 = Gallons/day (GPD)
0.17
0.0885
0.67
0.5594
0.18
0.0961
0.68
0.5687
0.19
0.1039
0.69
0.5780
0.20
0.1118
0.70
0.5872
0.21
0.1199
0.71
0.5964
0.22
0.1281
0.72
0.6054
0.23
0.1365
0.73
0.6143
0.24
0.1449
0.74
0.6231
0.25
0.1535
0.75
0.6318
0.26
0.1623
0.76
0.6404
0.27
0.1711
0.77
0.6489
0.28
0.1800
0.78
0.6573
0.29
0.1890
0.79
0.6655
0.30
0.1982
0.80
0.6736
0.31
0.2074
0.81
0.6815
0.32
0.2167
0.82
0.6893
0.33
0.2266
0.83
0.6969
0.34
0.2355
0.84
0.7043
0.35
0.2450
0.85
0.7115
0.36
0.2546
0.86
0.7186
0.37
0.2644
0.87
0.7254
0.38
0.2743
0.88
0.7320
0.39
0.2836
0.89
0.7384
0.40
0.2934
0.90
0.7445
0.41
0.3032
0.91
0.7504
0.42
0.3130
0.92
0.7560
0.43
0.3229
0.93
0.7612
0.44
0.3328
0.94
0.7662
0.45
0.3428
0.95
0.7707
0.46
0.3527
0.96
0.7749
0.47
0.3627
0.97
0.7785
0.48
0.3727
0.98
0.7816
0.49
0.3827
0.99
0.7841
0.50
0.3927
1.00
0.7854
