KELLER AG für Druckmesstechnik DCX Operating Instructions
- 8 -

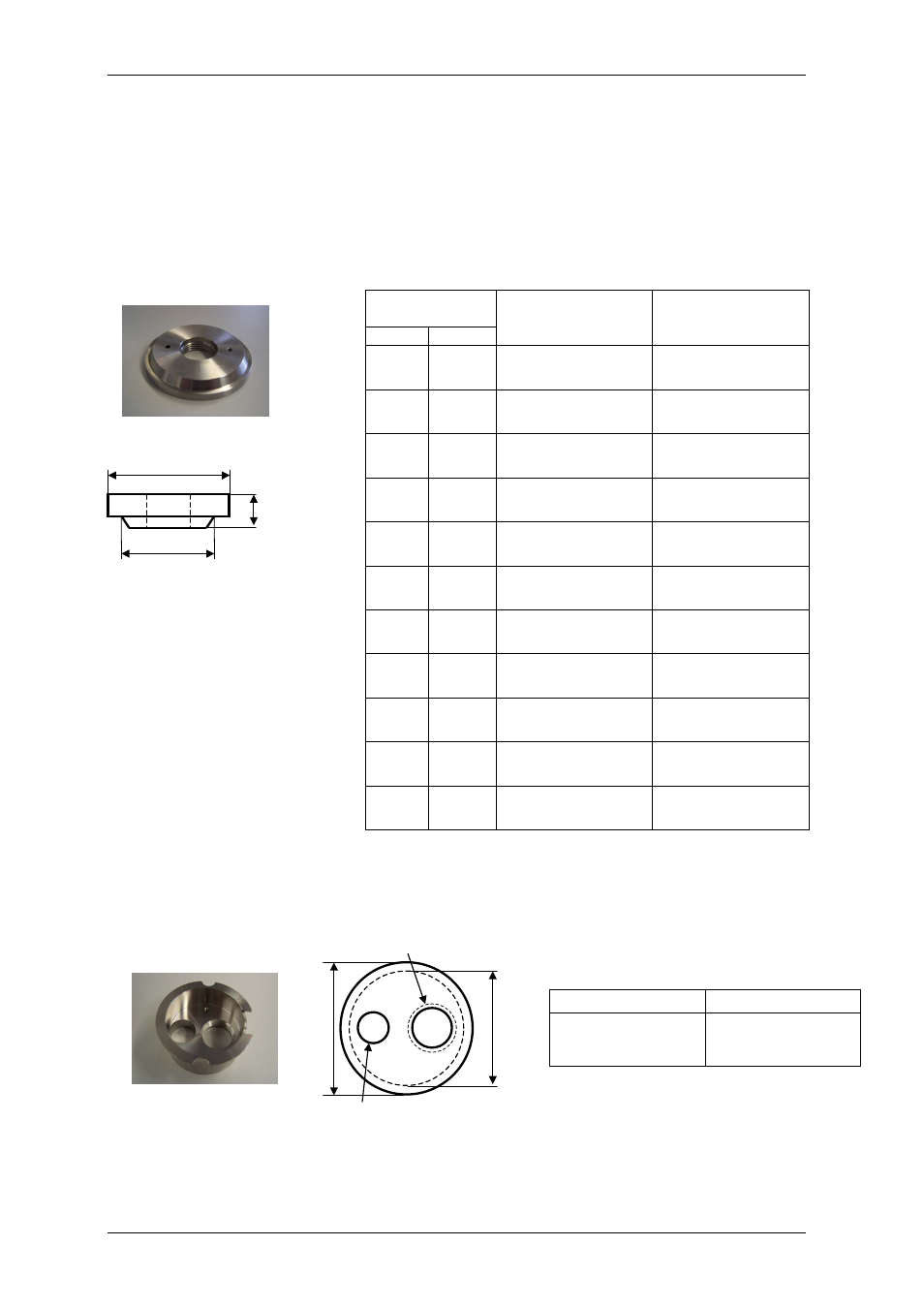

Adapter rings for use with sinking pipe (optionally available)
Suitable for:
- DCX-22 SG
- DCX-22 VG
- DCX-22 AA (round version)
Adapter ring for 2" sinking pipe closure with opening for sounder
Dimensions
[mm]
X Y
Drawing No. Product No.
30 25 33386 item 1 506810.0006
40 25 33386 item 2 506810.0018
49 39 33386 item 3 506810.0015
55 50 33386 item 4 506810.0019
60 55 33386 item 5 506810.0014
65 55 33386 item 6 506810.0020
35 32 33386 item 8 506810.0022
37 32 33386 item 9 506810.0025
42 32 33386 item 10 506810.0026
76 32 33386 item 11 506810.0027
125 32 33386 item 12 506810.0030
Drawing No. Product No.
33386-70 506810.0021
X
Y
9 mm
Opening for DCX (M20x1.5)
Opening for sounder ( ∅ 16mm)
46 54
