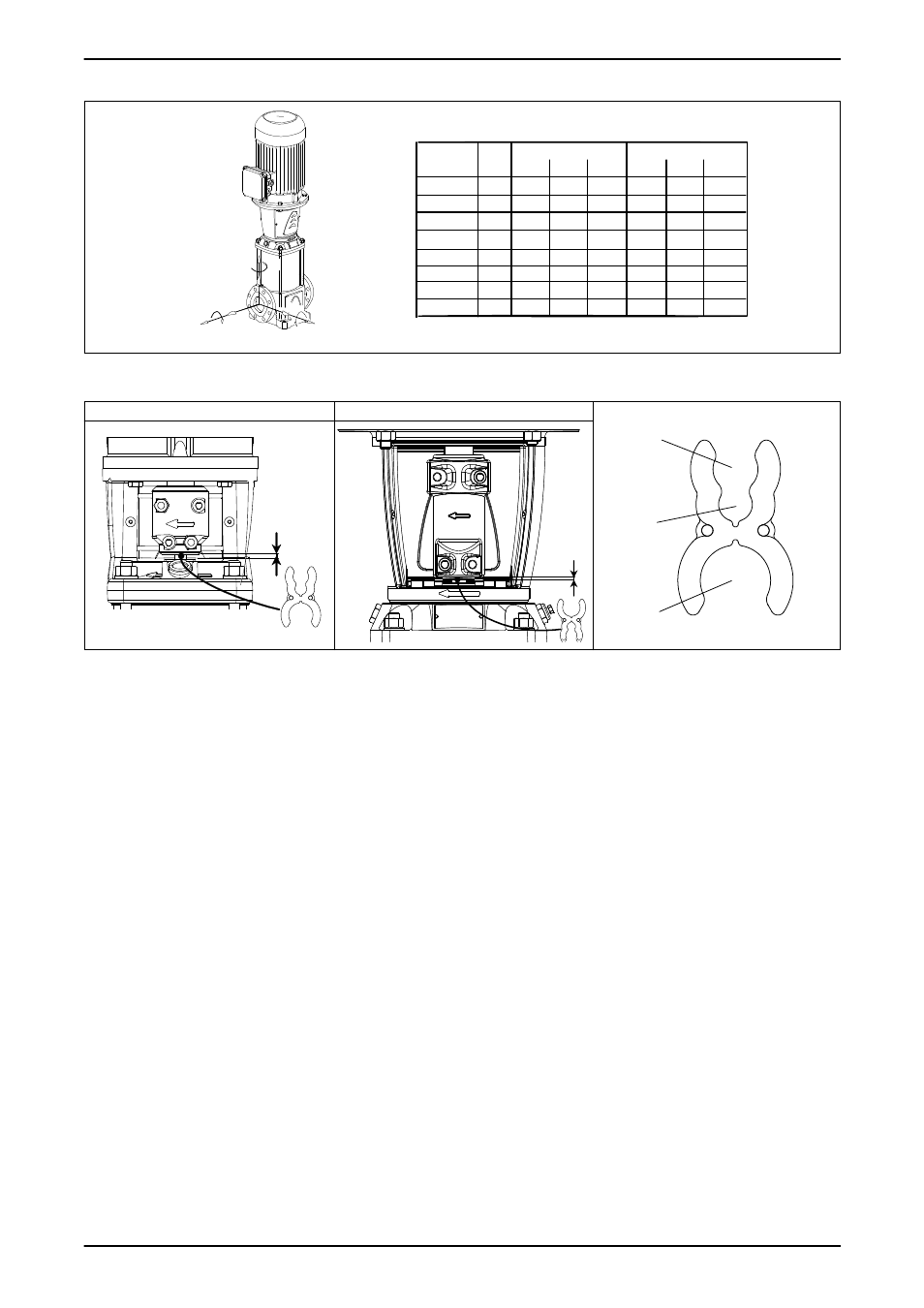

21.
PUMP
TYPE
DN Fx Fy Fz Mx My Mz
1-3 SV
25
200
180
230
240
160
190
5 SV
32
260
240
300
310
210
250
10 SV
40
330
300
370
390
270
310
15-22 SV 50
450
400
490
420
300
340
33 SV
65 1800 1700 2000 1500 1050 1200
46 SV
80 2250 2050 2500 1600 1150 1300
66-92 SV 100 3000 2700 3350 1750 1250 1450
125 SV 125 3700 3300 4100 2100 1500 1750
Forces (N)
Moments (Nm)
Fy
y
Fx
x
Mx
My
Mz
Fz
z
1-125sv-forza-FNG-en_a_td_a_td
22.
1, 3, 5, 10, 15SV
33, 46, 66, 92, 125SV
Ш 16
Ш 12
Ш 22
5 mm
5 mm
SV1125_M 0020_A_sc
