Xylem IM183 R09 3AB2 & 5AB2 Aquavar ABII Variable Speed Pump Controller User Manual
Page 6
6
Typical Motor Nameplate Showing Service Factor Amps (SF AMPS)
In this example, if controller is supplied with 208 V,
use the 4.2 Amp Motor Overload Setting that is closest
to 4.2A without going over. For 230V input, use the setting
that is closest to 4.0A without going over.
Service Factor Amps (SF AMPS)
that are used to set the Motor
Overload Setting Dial.

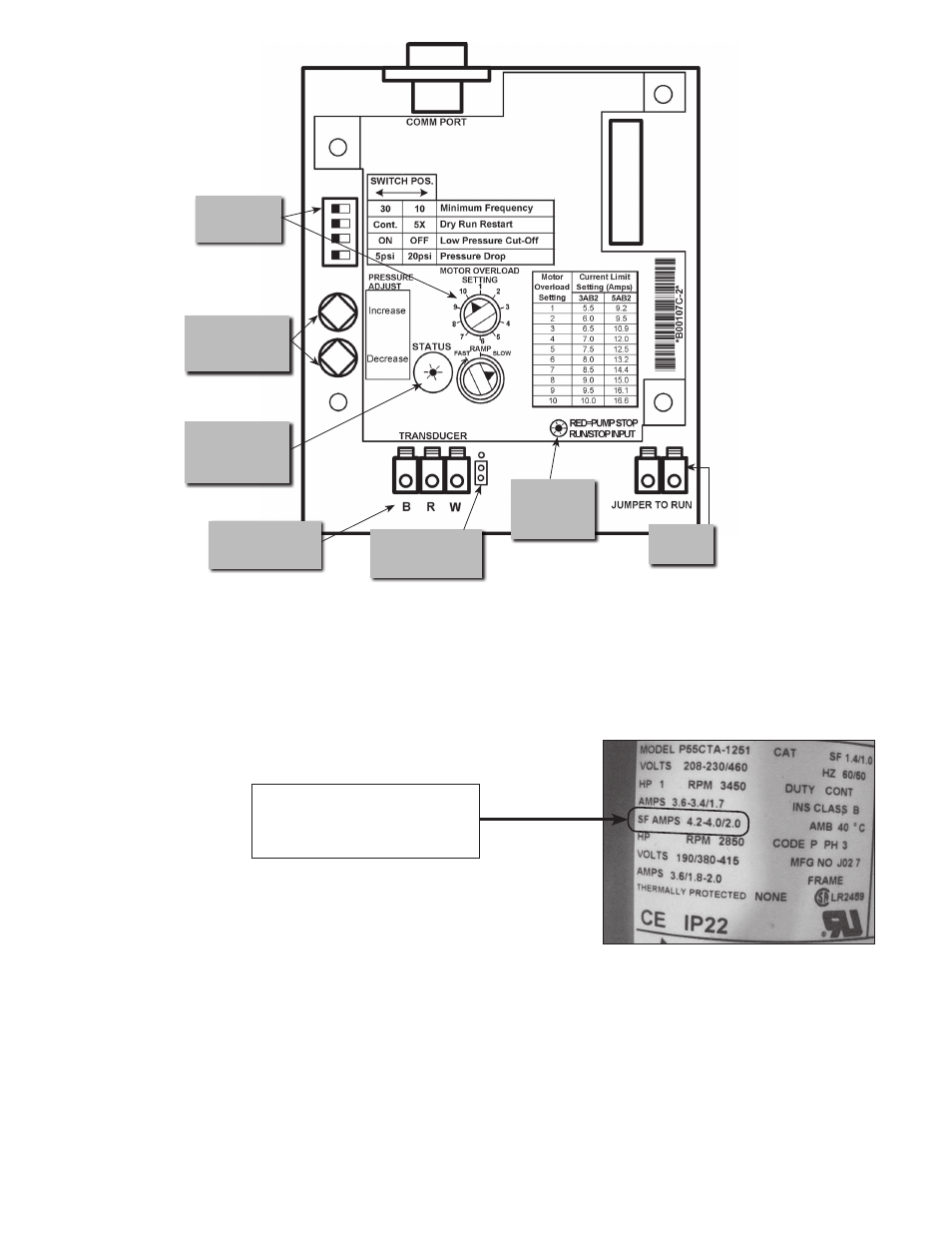

Figure 3: UIB (User Interface Board)
Switch
Input
Switch
Input
Indicator
Transducer
Input
Transducer
Jumper
Drive
Settings
Pressure
Adjust
Controller
Status
Indicator
Figure 4: Typical Motor Nameplate
