Instalación típica, Controlador, Cómo abrir la cubierta del controlador – Xylem IM183 R09 3AB2 & 5AB2 Aquavar ABII Variable Speed Pump Controller User Manual

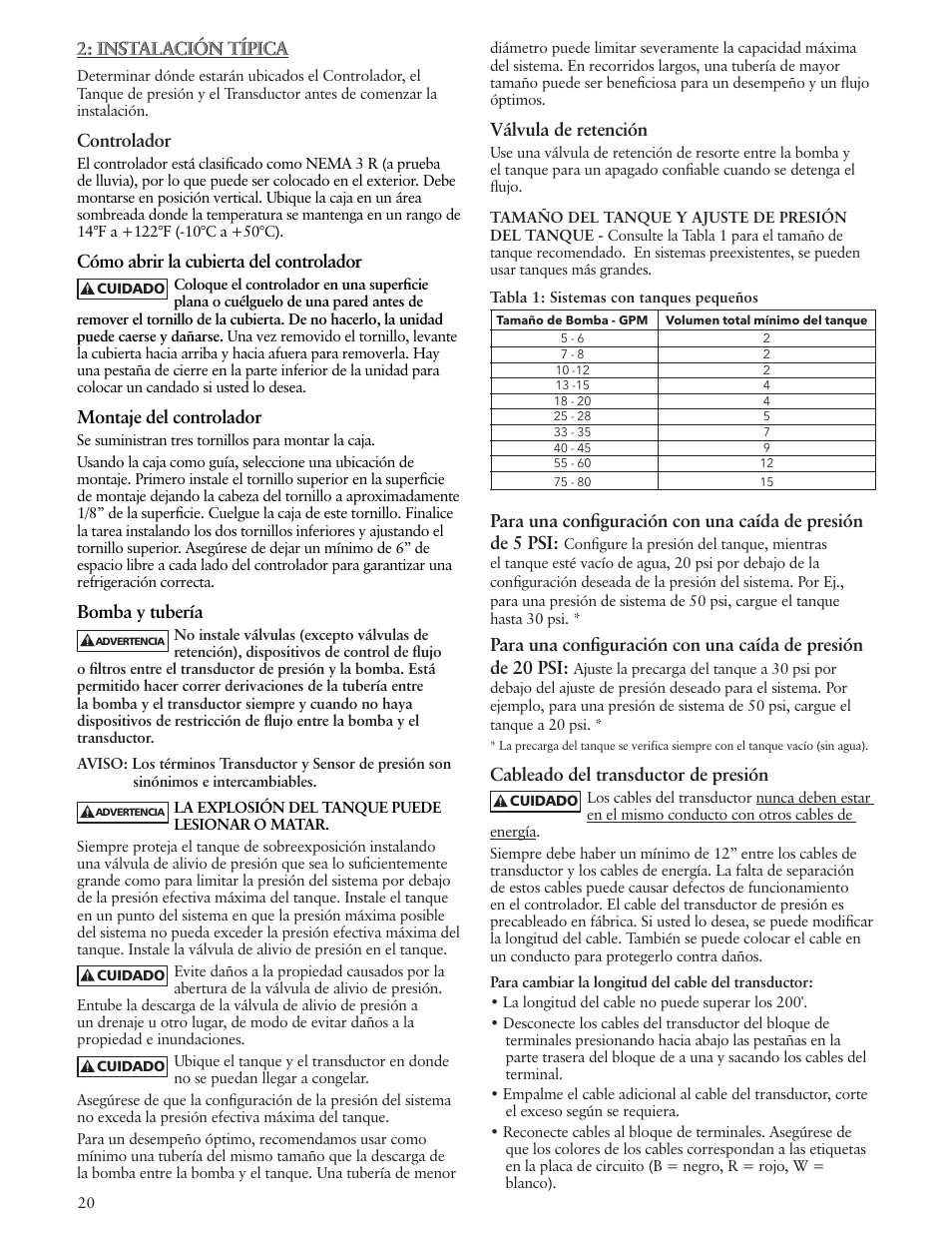

Page 20: Montaje del controlador, Bomba y tubería, Válvula de retención, Cableado del transductor de presión
