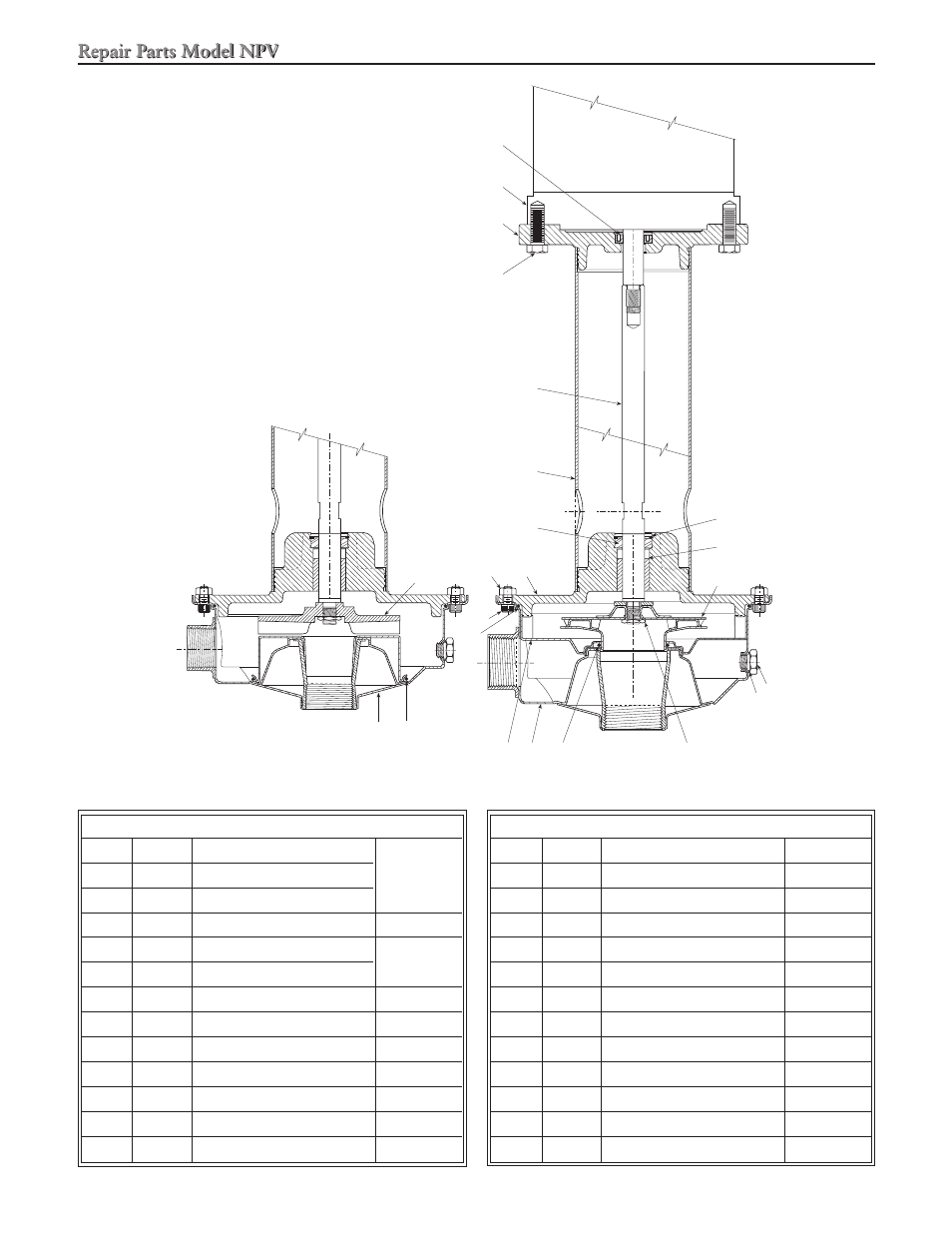

Repair Parts Model NPV
Item # Quantity
Description
Material
1
1
Casing (Model SL)
AISI 316
2
1
Casing (Model SR)
Stainless Steel
3
1
Guidevane
4
1
O-ring - Casing
Viton/EPR
5
8
Socket Head Cap Screw
AISI 304
6
8
Hex Nut
Stainless Steel
7
1
Pump Mounting Plate
AISI 303 SS
8
4
Hex Head Bolt
Plated Steel
9
1
Motor Plate
Cast Iron
10
1
Motor
Electrical
11
1
Support Tube
AISI 304 SS
12
1
Shaft Extension
AISI 304 SS
12A
1
Shaft, Ceramic Coated
AISI 304 SS
Item # Quantity
Description
Material
13
1
Internal Snap Ring
Stainless Steel
14
1
Bushing
Nitronic 60 SS
15A
1
Bearing
Viton
15B
1
Bearing
Carbon
15C
1
Bearing
EPR
16
1
Impeller (Model SR)
AISI 316 SS
17
1
Impeller (Model SL)
AISI 316 SS
18
1
Plug, Drain and Vent
AISI 316 SS
19
2
O-ring (Drain and Vent Plug)
Viton/EPR
20
1
Impeller Nut
AISI 300 SS
21
1
O-ring (Impeller)
Viton/EPR
22
1
O-ring - Casing
Viton/EPR
23
1
U-cup Seal
Teflon™
16
2
22
(1SR ONLY)
7
6
5
4
3
1
21
20
19
18
17
15A/15B/15C
13
14
11
12/12A
8
9
10
23
Model SR — Open Impeller
Model SL — Closed Impeller
