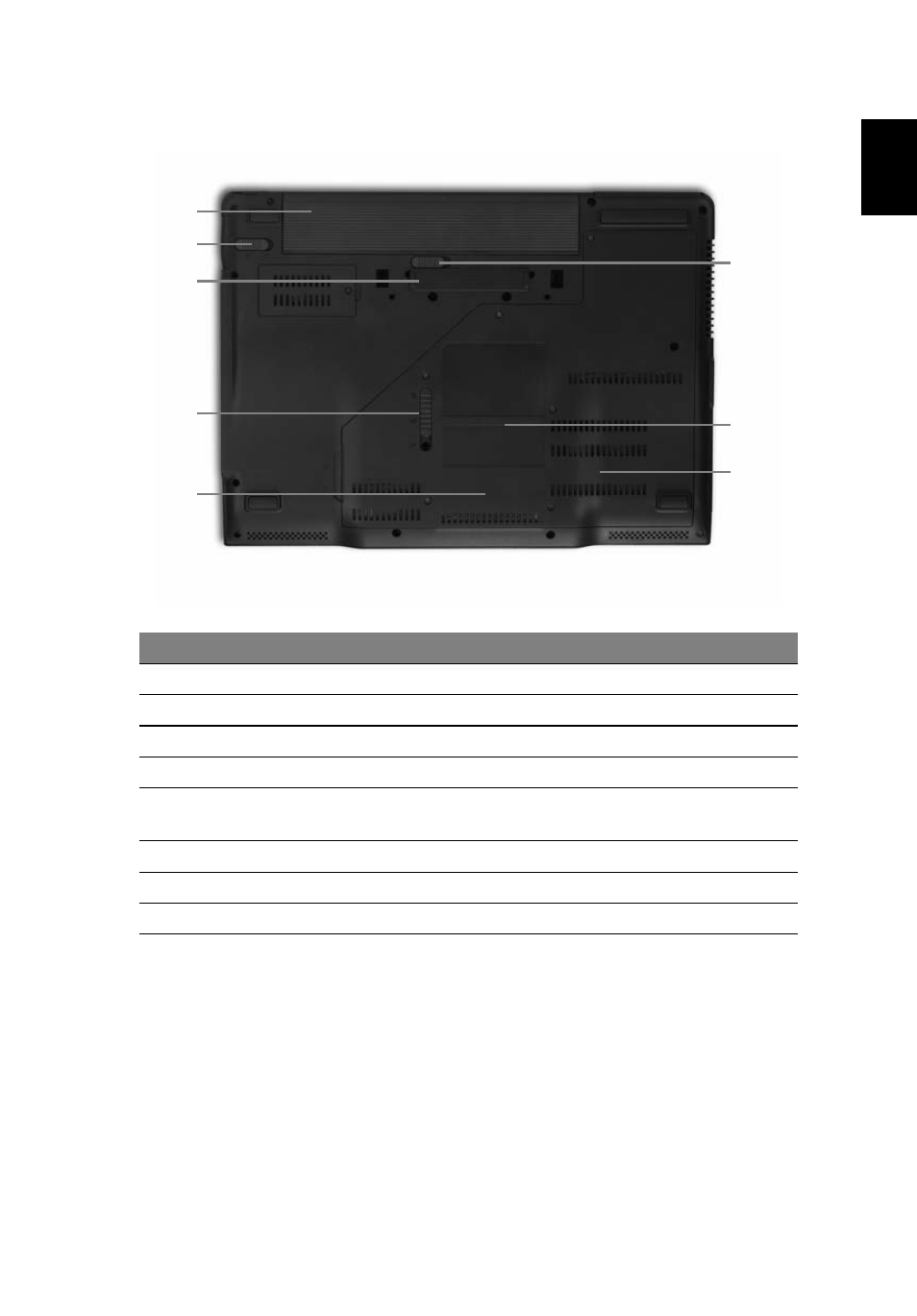

Base view
# Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery lock Locks the battery in position.
3 ezDock II/II+ connector Connects to Acer ezDock II/II+.
4 Acer MediaBay release latch Lock or unlock Acer MediaBay device.
5 Hard disk bay Houses the computer's hard disk
(secured with screws).
6 Memory compartment Houses the computer's main memory.
7 Acer DASP Disk Anti-Shock Protection
8 Battery latch Release the battery pack.
