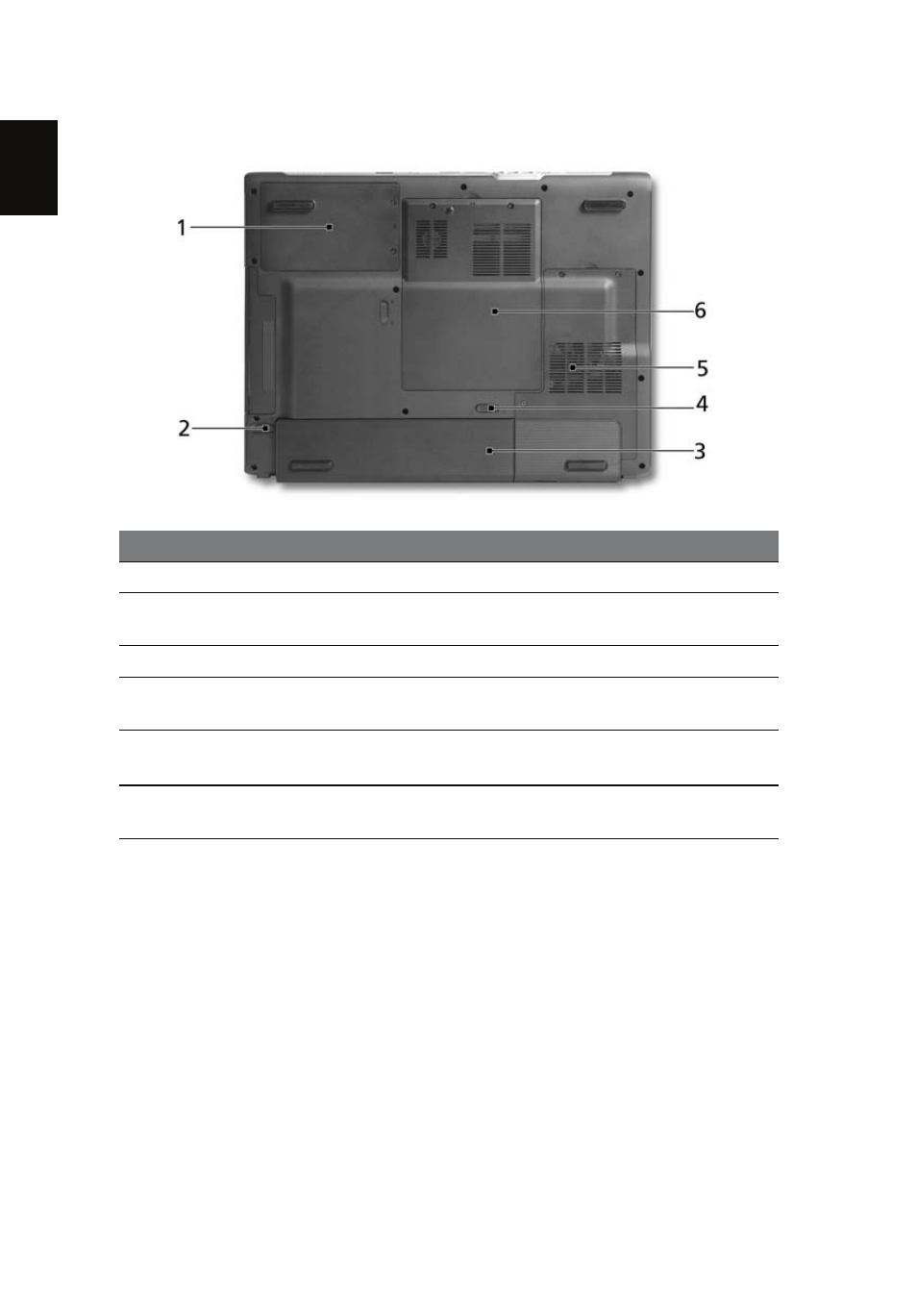

Base view
# Item Description
1 Hard disk bay Houses the computer's hard disk (secured with screws).
2 Battery release
latch Releases the battery for removal.
3 Battery bay Houses the computer's battery pack.
4 Battery lock
latch Locks the battery in place.
5 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the opening of the fan.
6 Memory
compartment Houses the computer's main memory.
