• S5201B/T111E/PS-X11K/S5301WB/T121E/PS-W11K
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: "*" USB drive limitation, do not support power.

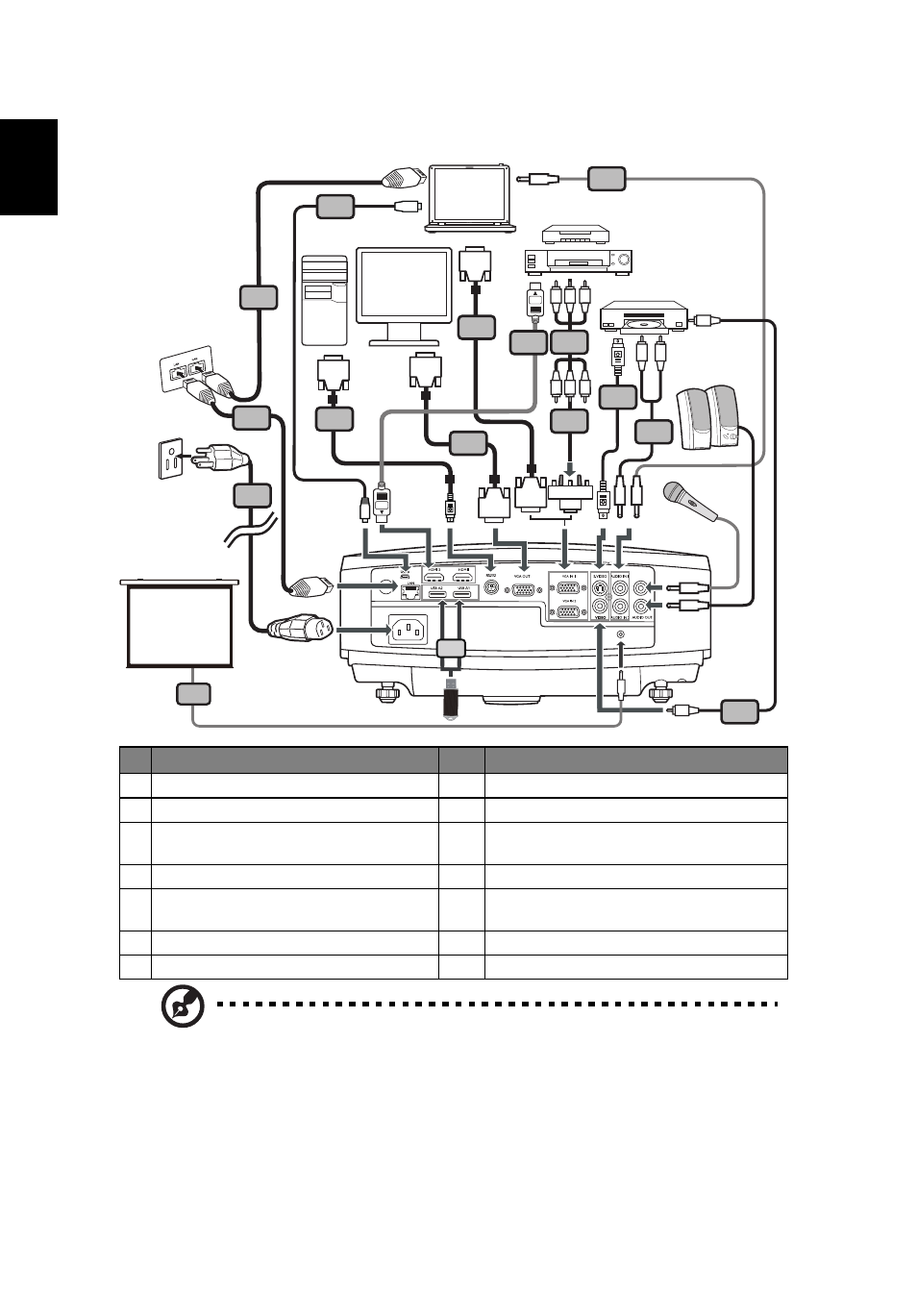

# Description # Description
1 Power cord 8 HDMI cable
2 VGA cable 9 3 RCA component cable
3 VGA to component video/HDTV
adapter
10 RJ45 cable
4 Composite video cable 11 USB cable
5 Audio cable 12* USB storage device/USB Wifi adapter
(Optional)
6 S-Video cable 13 12V DC cable
7 RS232 cable
MIC.
RS232
R B G
R B G
HDTV adapter
D-Sub
D-Sub
13
7
D-Sub
D-Sub
2
6
4
5
2
1
Y
5
R W
9 8
3
Y
10
10
11
USB
USB
DC OUT
12
DVD player, Set-top box,
HDTV receiver
VGA
RS232
S-Video/Video Output
Speakers
Display
Microphone
Screen
