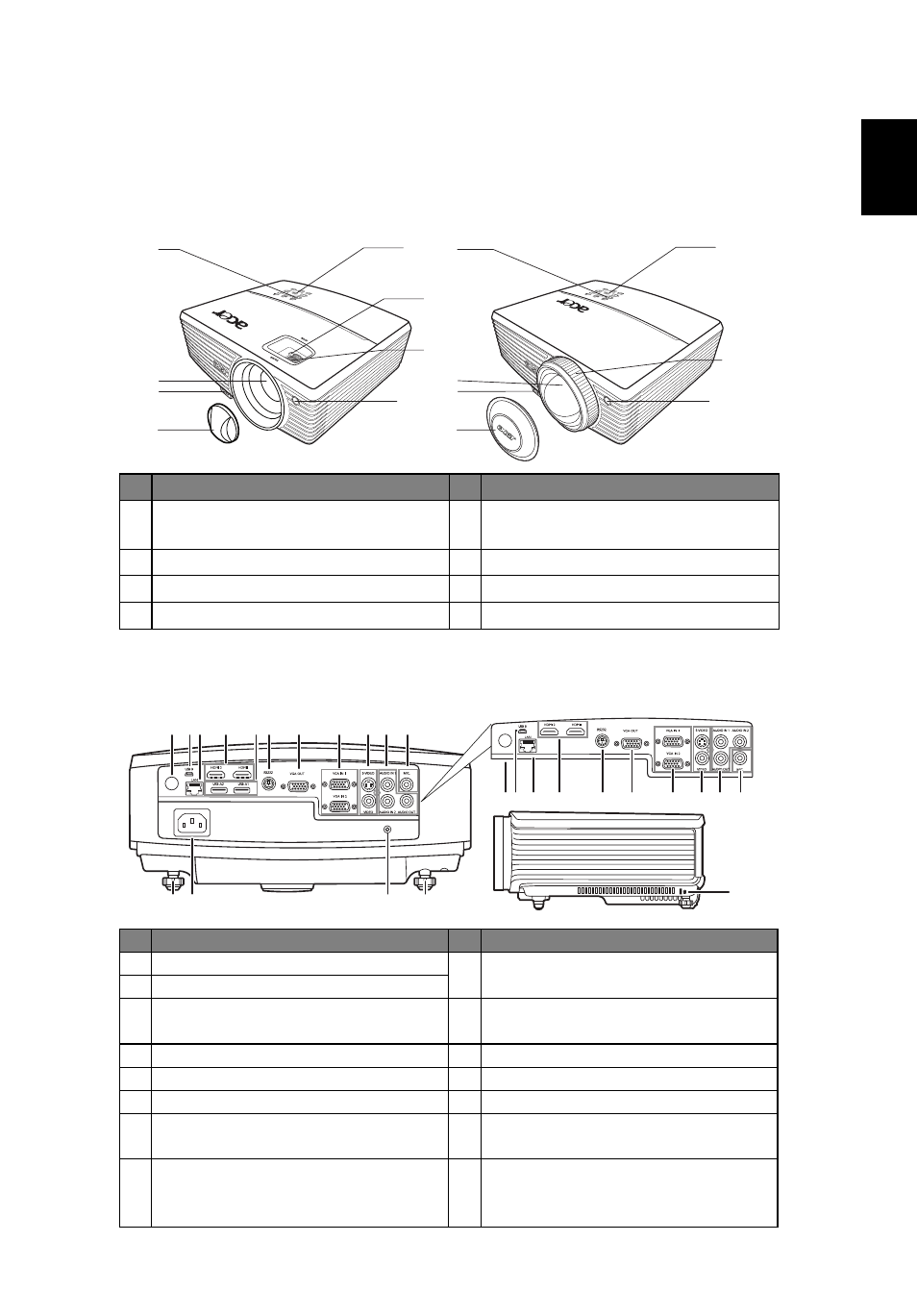

Projector Overview
Projector Outlook
Front / upper side
Rear side
#
Description
#
Description
1
Power key and Power indicator
LED
5
Control panel
2
Projection lens
6
Zoom ring
3
Elevator button
7
Focus ring
4
Lens cap
8
Remote control receiver
#
Description
#
Description
1
Remote control receiver
9
S-Video input connector/
Composite video input connector
2
USB connector (Type mini B)
3
LAN (RJ45 port for 10/100M
Ethernet)
10 Audio input connector/
Audio output connector
4
HDMI connector
11 Microphone input connector
5
USB connector (Type A)
12 Tilt adjusting wheel
6
RS232 connector
13 Power socket
7
Monitor loop-through output
connector
14 12V DC output connector
8
PC analog signal/HDTV/component
video input connector (VGA IN 1/
VGA IN 2)
15 Kensington™ lock port
1
4
3
2
1
4
3
2
6
7
8
7
8
5
5
(P5206/N216/PN-X14)
(S5201/T111/PS-X11/S5201B/T111E/
PS-X11K/S5301WB/T121E/PS-W11K)
DC OUT
4
7
6
8
3
5
2
1
9 10 11
12
12
14
15
13
4
7
6
8
3
2
1
9 10 11
(S5201B/T111E/PS-X11K/S5301WB/
T121E/PS-W11K)
(P5206/N216/PN-X14/S5201/T111/
PS-X11/)
