Installation, Application diagram – C2G 39960 4 Port VGA over UTP Extender- Base Unit User Manual
Page 3
Installation
1. Turn off the PC and monitor(s).
2. Connect the HD-15 female input connector on the VGA over UTP Extender Base Unit with the
HD-15 male to male cable to the PC.
3. At each remote location, connect the HD-15 female output connector on the VGA over UTP
Extender Remote Unit (sold separately) with HD-15 male cable from your monitor(s).
4. If you have local monitor, connect the HD-15 male cable from that monitor to the female output
connector on the Base Unit.
5. Connect the Base and Remote units together with a CAT5E cable.
6. Connect a power adapter to both the Base and Remote unit.
7. Turn on the monitor(s) and PC.

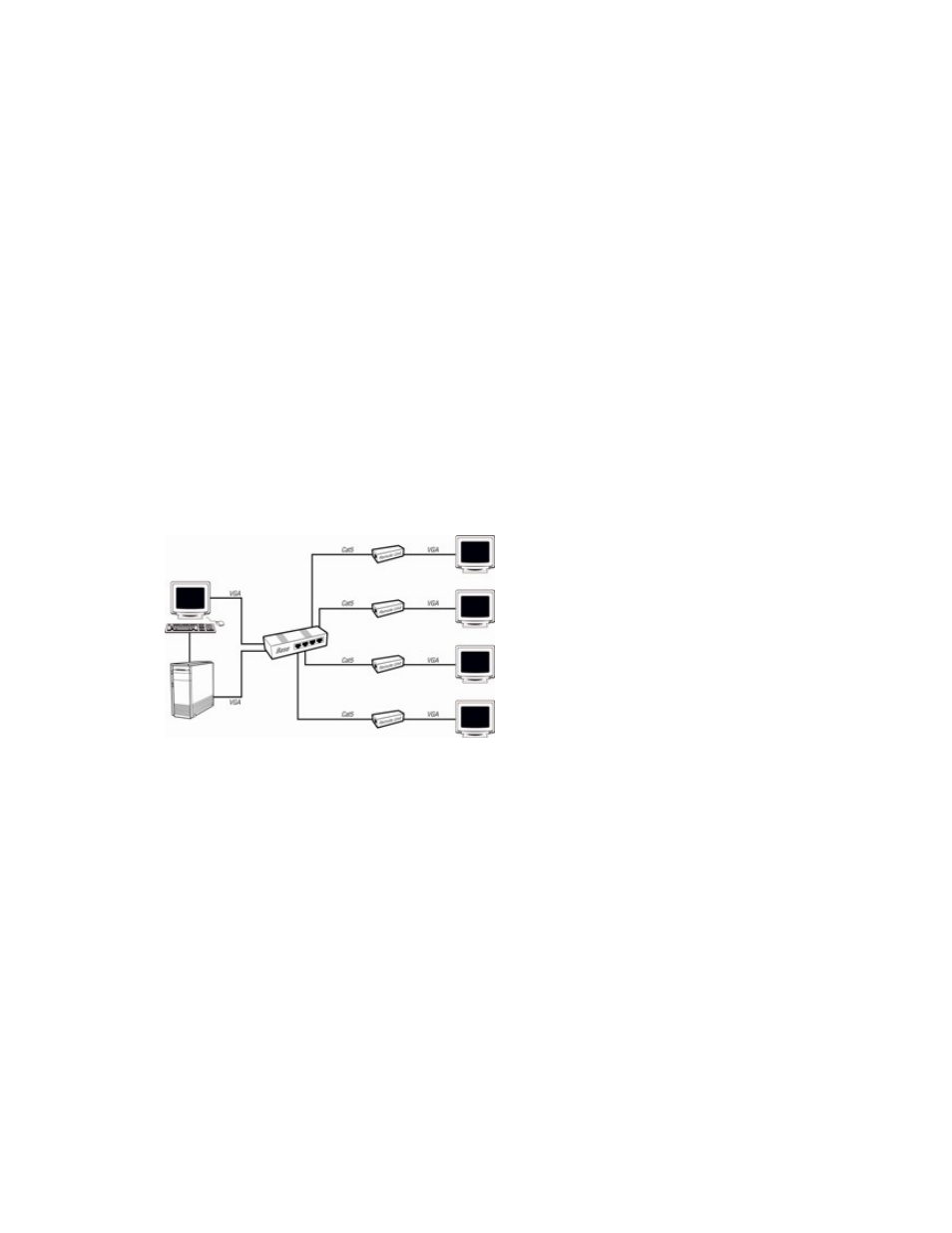

Application Diagram
REAR PORTS
1. VGA In (HD-15 Female Connector)
2. VGA Out (HD-15 Female Connector)
3. Power jack
4. Power LED
FRONT PORTS
1.
Four CAT5 (RJ-45) connectors
