C2G 39973 TruLink VGA Matrix Switch w_Audio User Manual
Page 5
2

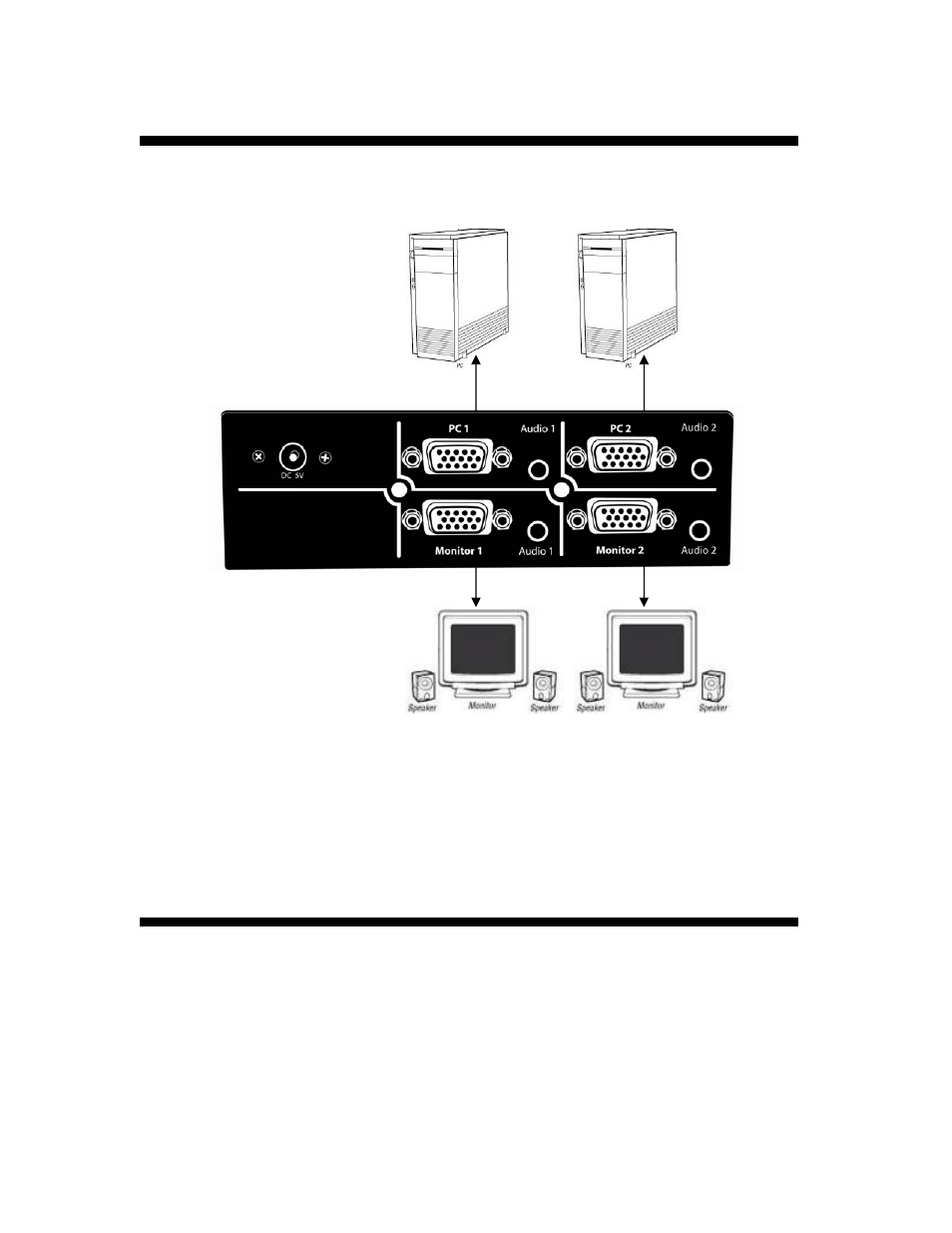

Diagram of connections:
Back of 39973
Operating the VGA Matrix Switch
Operating the VGA Matrix Switch with the remote control
On the remote control, there are two groupings of controls. Your set of Monitor buttons initialize
control for the VGA Matrix Switch. You cannot switch between your PCs until you hit one of the
Monitor buttons. The PC buttons allow you to switch between your PCs.
