C2G 29578 WIRELESS USB HOST ADAPTER User Manual
Page 24
A
PPENDIX
P
IN
A
SSOCIATION
P
ROCEDURE
PIN association steps: Examples/Figures shown used with the association of the TruLink Wireless VGA
Device Adapter.
1. Make sure your Certified Wireless USB Device is
powered on and your Wireless USB Host Adapter is
connected to your computer. Click the “Discovery
Mode” button (Figure: Discovery Mode Screen).

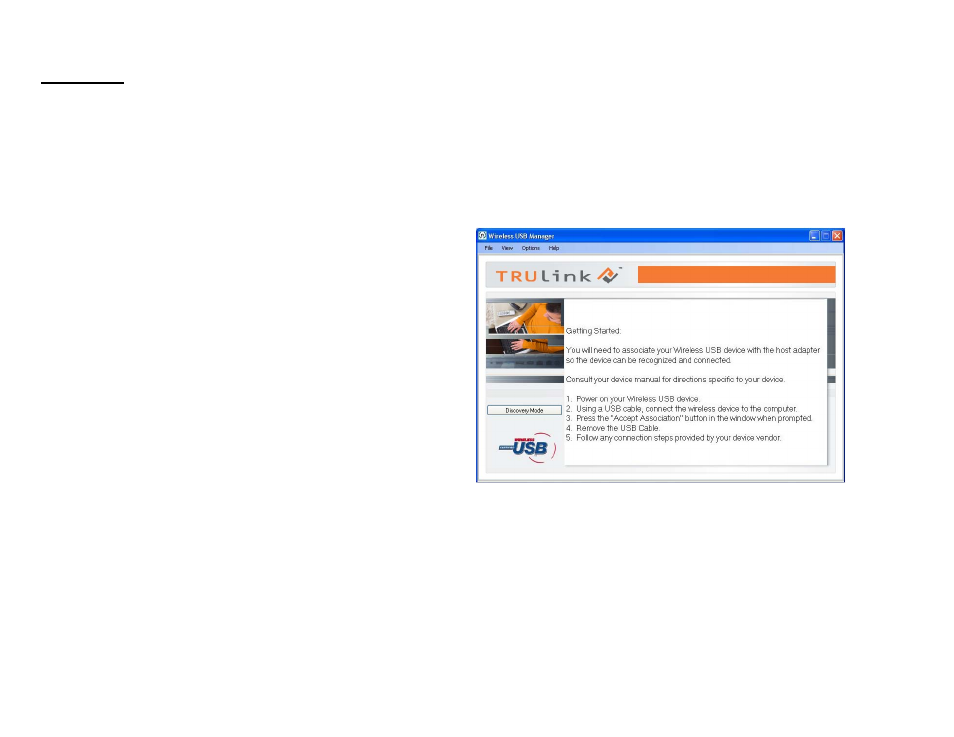

Figure: Discovery Mode Screen
23
