154.290UK User Manual

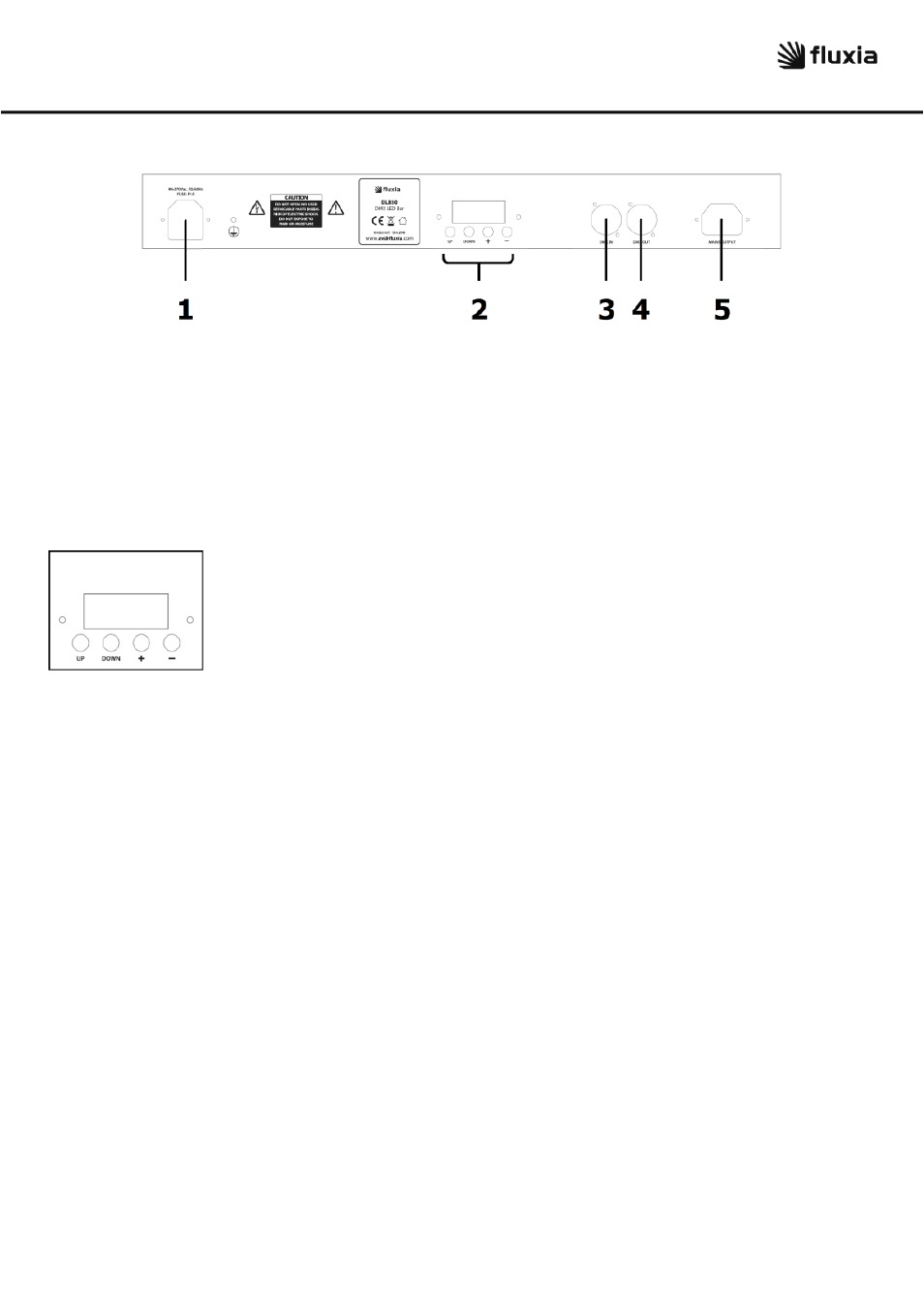

Panel layout
1. IEC mains inlet and fuse
2. Control panel and display
3. DMX IN connector (XLRM)
4. DMX OUT connector (XLRF)
5. IEC mains daisy-chain outlet
Control panel & display
UP
Press to step up through menu options
DOWN Press to step down through menu options
+
Press to increase value
- Press to decrease value
Setting up
Connect the IEC inlet (1) of the DLB50 to mains power using the IEC mains lead provided.
Power for additional DLB50 bars can be daisy-chained using IEC outlets (5) for up to 30 units.
Connect DMX from a controller or previous lighting fixture to the DMX IN XLR connector (3)
Connect DMX on to further units from the DMX OUT XLR connector (4)
Depending upon the position of the DLB50, the best effect can be achieved by aiming the
beam across a flat surface, such as a wall or ceiling. Adjust the tilt accordingly for best results.
The DLB50 can operate via various DMX modes or from internal programs. Using the control
panel and display, step through the menu pages for the desired settings and adjust values to
suit. This process is shown in detail on the next page.
When not in use for long periods, disconnect the DLB50 from the mains supply.
