178.274UK User Manual

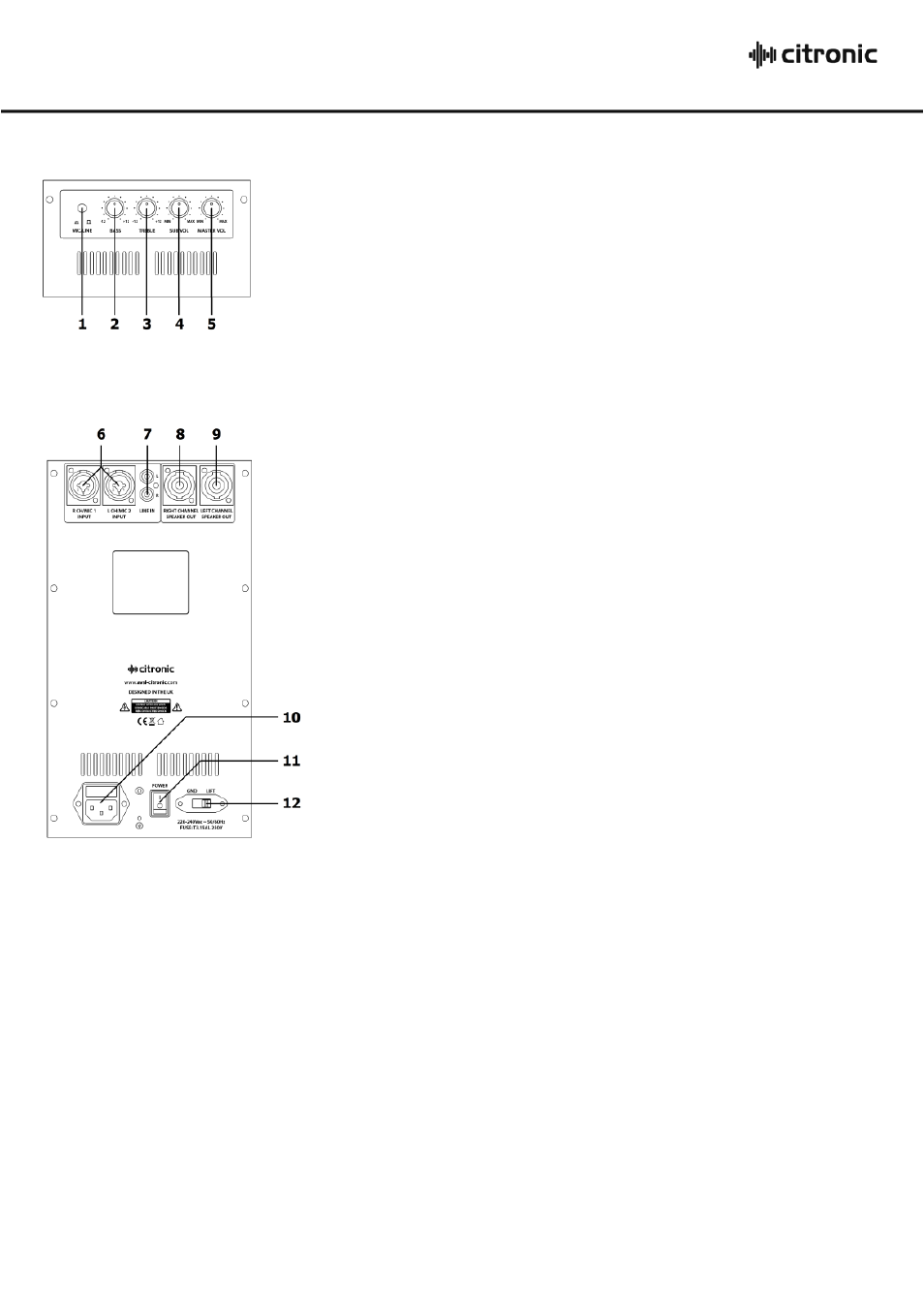

Top Panel
Rear Panel
Setting up
The CXB10A subwoofer has an internal class D amplifier which can also power 2 or 4 satellite
speakers. The ideal placement for any subwoofer is on the floor, against a wall and if possible,
in a corner. Any surfaces that the cabinet is adjacent to will help to optimize the delivery of
low frequencies.
If satellite cabinets are to be powered from the CXB10A, connect these to the L+R speaker
outputs (pin1, pin1-) on the rear panel, ensuring a minimum impedance of 4Ω is connected to
each output. Satellite power output is 125Wrms @ 8Ω and 170Wrms @ 4Ω per channel.
Connect L+R inputs via jack or XLR to the combo inputs (6) or on RCA inputs (7) on the rear
panel. These input connectors are wired in parallel so that the unconnected pair can be used
to continue the signal onto other equipment (amps, active speakers etc.)
1. Mic / Line level switch
2. Bass EQ control
3. Treble EQ control
4. Sub volume control
5. Master volume control
6. R+L combo XLR/jack inputs
7. R+L RCA inputs
8. Right satellite speaker output
9. Left satellite speaker output
10. IEC mains inlet and fuse holder
11. Mains power on/off switch
12. Ground lift switch
