Introduction:
Thank you for choosing the QR series active speaker cabinet. Please read this manual prior to use.
The QR active speaker range has been designed to serve many varied applications, delivering clear, powerful sound reinforcement wherever
it is needed. Please note: your QR active speaker cabinet may be supplied with more than 1 IEC or Fig.8 mains lead. Be sure to use the
correct lead, taking note of the outlet voltage and rating.
Warning:
To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the
cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
Safety

Prior to connecting mains, ensure that the supply voltage is correct and the mains lead is in good condition.
 Avoid ingress of water or particles into the enclosure.
 If the mains fuse blows, refer the unit to qualified service personnel
Placement

Keep the unit out of direct sunlight and away from heat sources.

Keep the unit away from moisture or dusty environments.
Cleaning
Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.

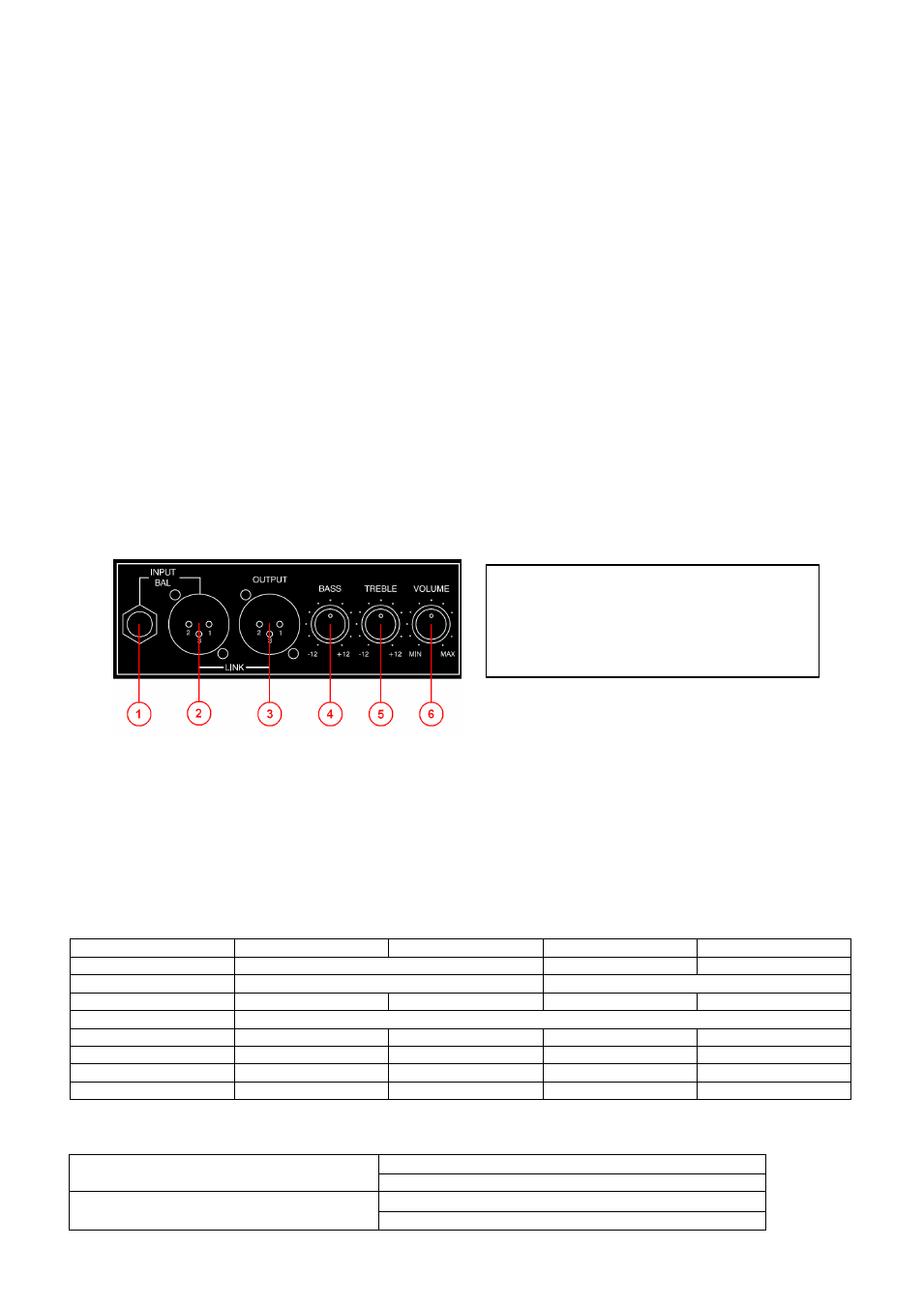

Control Panel
Operation
With VOLUME turned down and power switch off, connect the IEC or Fig.8 lead to an appropriate mains outlet.
Connect output of mixer or any line level signal to the INPUT via 6.3mm jack or XLR.
If the signal is to continue to further active speakers, connect these from the OUTPUT line level XLR.
BASS and TREBLE controls should remain pointing vertically (12-o-clock position).
Press the power switch on and gradually increase the VOLUME until the input signal is heard through the speaker.
Your QR active speaker should now be ready to operate.
.
SPECIFICATIONS QR8A QR10A QR12A QR15A
Power supply 220-240Vac 50/60Hz (Fig.8 220-240Vac 50/60Hz (IEC)
Main driver 20cm (8”) 4Ω 25cm (10”) 4Ω 30cm (12”) 4Ω 38cm (15”) 4Ω
HF unit 2.5cm (1”) titanium compression driver
Output power (max) 200W 300W 400W 500W
Output power (RMS) 100W 150W 200W 250W
Dimensions 400 x 290 x 220mm 470 x 320 x 260mm 570 x 350 x 300mm 680 x 430 x 360mm
Weight 6.5kg 7.5kg 11.2kg 15.8kg
Troubleshooting
No output and no LEDs lit
Check POWER switch is on
Check mains lead is connected and fuse hasn’t blown
Power LED lit but no sound from external inputs
Check leads are OK and connected properly
Check VOLUME control is not fully down
© QTX Sound 2011
1) INPUT– 6.3mm TRS jack line input
2) INPUT– XLR line input
3) OUTPUT link – Balanced XLR signal out
4) BASS – Low frequency 12dB cut/boost
5) TREBLE – High frequency 12dB cut/boost
6) VOLUME – Output level control
