User Manual – PB-1 Foldable PAR BAR 151.559UK
6
8. Setup Guide :
1. Setup the stand first and set your desired height.
2. Place the PB1 unit on to the stand and secure using the thumb screw
3. Unfasten the safety clip on the rear, fold the PAR Bar in to place and
secure the safety locks on the front.
4. Plug in the Foot controller (or DMX cables)
5. Plug the IEC connector in to the PAR bar then plug into the mains.

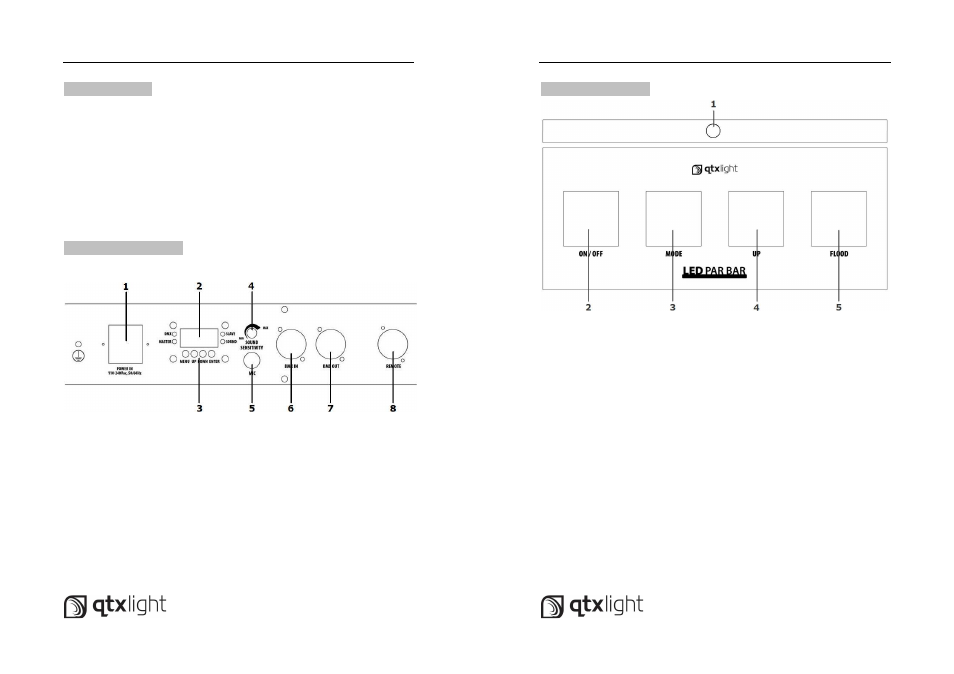

9. Rear Panel Layout :
1. Power IN
2. LED Display
3. Control operation
4. Sound sensitivity
5. Microphone
6. DMX IN
7. DMX OUT
8. Remote connection
User Manual – PB-1 Foldable PAR BAR 151.559UK
7
10. Foot Controller :
1. Remote connection
2. Switch PAR BAR ON/OFF
3. Scroll through various modes
4. Scroll though various sub modes
5. Press and hold for full white. Tap your foot to create a strobe effect
*The rear display on the bar will give an indication what mode the PAR
BAR is in. (see next page)
