AVSL 160.458 FH-700 - Manual (Page 8)

160.458UK User Manual

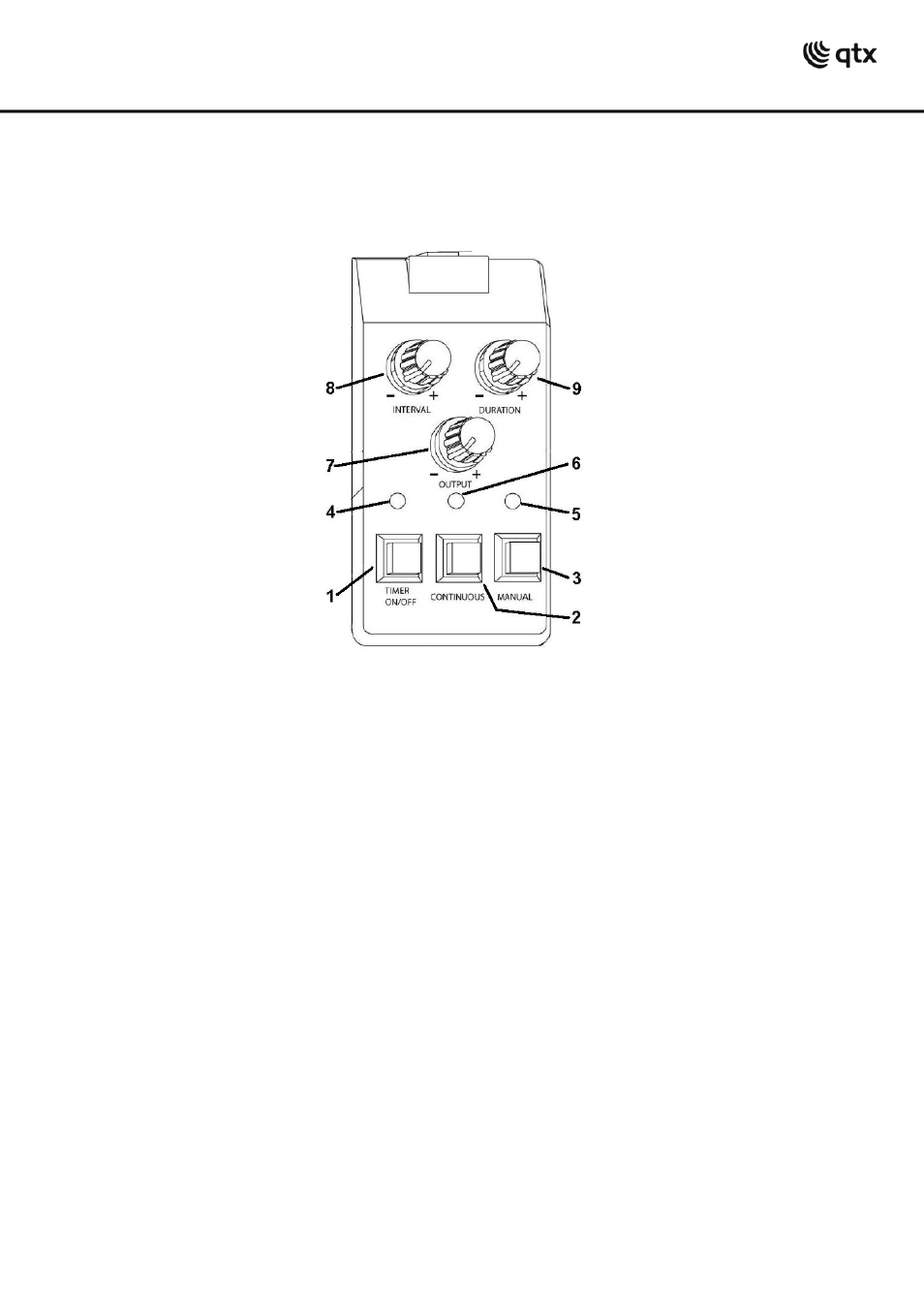

TIMER CONTROLLER
1. Timer on/off button
2. Continuous output
3. Manual override button
4. Timer LED indicator (Illuminated Yellow when timer active)
5. Manual ready indicator (Illuminates Green when ready)
6. Power indicator (Illuminates red when power is on)
7. Adjust the output level between 0-100%. Generally 0-30% is haze effect and 31-100%
is Fog level output.
NOTE:
The below controls are only used when in timer mode
8. Adjust the interval gap between each release (between 0 – 30 Min approximately)
9. Adjust the duration the Haze / Haze is released at each interval (between 0 – 15
seconds approximately)
For best results select “continuous” and adjust output to achieve desired effect, note it
can take around 30 seconds for the machine to produce the correct output.
