AVSL 151.579 LED NEUTRON II User Manual
Page 2
151.579UK User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Introduction
Thank you for choosing the LED Neutron II centre-piece light as part of your effect lighting setup. This
unit has been designed to provide wide angle, dynamic beam effects for dance floors and live shows.
Please read the following instructions for best results.
Unpacking
Your LED Neutron II should reach you in good condition, supplied with appropriate mains lead(s) and
mounting bracket. If there is any damage or items missing from the packaging, contact your dealer
immediately.
Warning
To prevent risk of fire or electric shock, do not expose any components to rain or moisture.
If liquids are spilled on the housing, disconnect mains, allow unit to dry out and have the unit checked by
qualified personnel before further use.
No user serviceable parts inside – do not open – refer all servicing to qualified personnel.
Safety
Check for correct voltage and condition of IEC lead before connecting to power outlet
Ensure DMX leads are in good condition with no short connections or damaged plugs
Placement
The LED Neutron II is fitted with 4 feet for handling purposes to protect the mirrors
If mounted at height, use the integral bracket and attach a drop cable for safety
Ensure adequate air-flow to the housing for cooling
Ensure adequate access to controls and connections
Cleaning
Use a soft dry or slightly damp to clean the cabinet and lenses. Do not use solvents

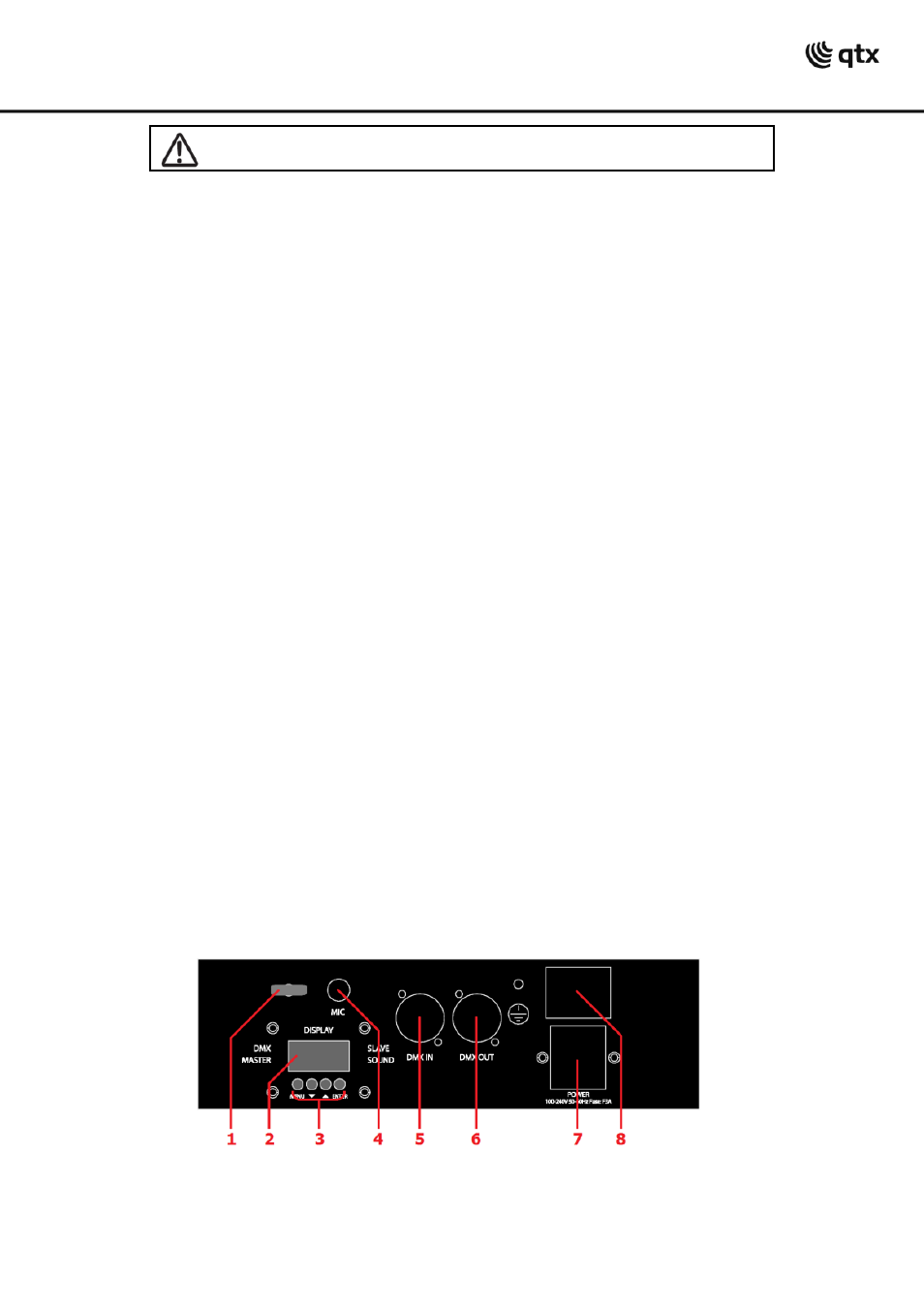

Connections and controls
1.
Safety cable eyebolt
5.
DMX in (3-pin XLR)
2.
LED display
6.
DMX out (3-pin XLR)
3.
Control panel buttons
7.
Mains inlet (IEC) & fuse holder
4.
Internal microphone
8.
Mains daisy-chain output (IEC)
