CAUTION:
If the demisting shields need to be cleaned, make sure the shields are dry and only use dry lens
paper. If the demist shields are wiped while wet or with wet lens paper, you will damage the
coating.
NOTE:
If inclement operating conditions are known to be a possibility prior to your mission (e.g. sig-
nificant temperature change and high humidity), install the demist shields before operation in
order to minimize diopter lens fog.
1. Carefully remove the eyecups.
2. Carefully press a demist shield onto each eyepiece. Be careful not to smudge the eyepieces or demist
shields.
3. Replace the eyecups (see paragraph 3.3.
E. Installation of the sacrificial Window. Perform the following procedure to install the sacrificial
window. Refer to Figure 3-3.
CAUTION:
If adverse operating conditions (dust or sand), are known to exist, attach the sacrificial window
to protect the objective lens from scratches or other damage.
1. If the compass assembly or lens cap is in place, remove it.
2. Carefully push the sacrificial window over the objective lens until it stops. Turn the sacrificial window
clockwise until it snaps into place.
F. Installation of the Compass Assembly.
NOTES:
a. Prepare the PVS-7 for operation (paragraph 3.3.1).
b. Ensure the neck cord is secured to the compass and clothing before installing.
1. If the sacrificial window or lens cap is in place, remove it.
2. Turn the PVS-7 on.
Ir Spot/flood lenS
compaSS
SacrIfIcIal
wIndow
demISt
ShIeldS

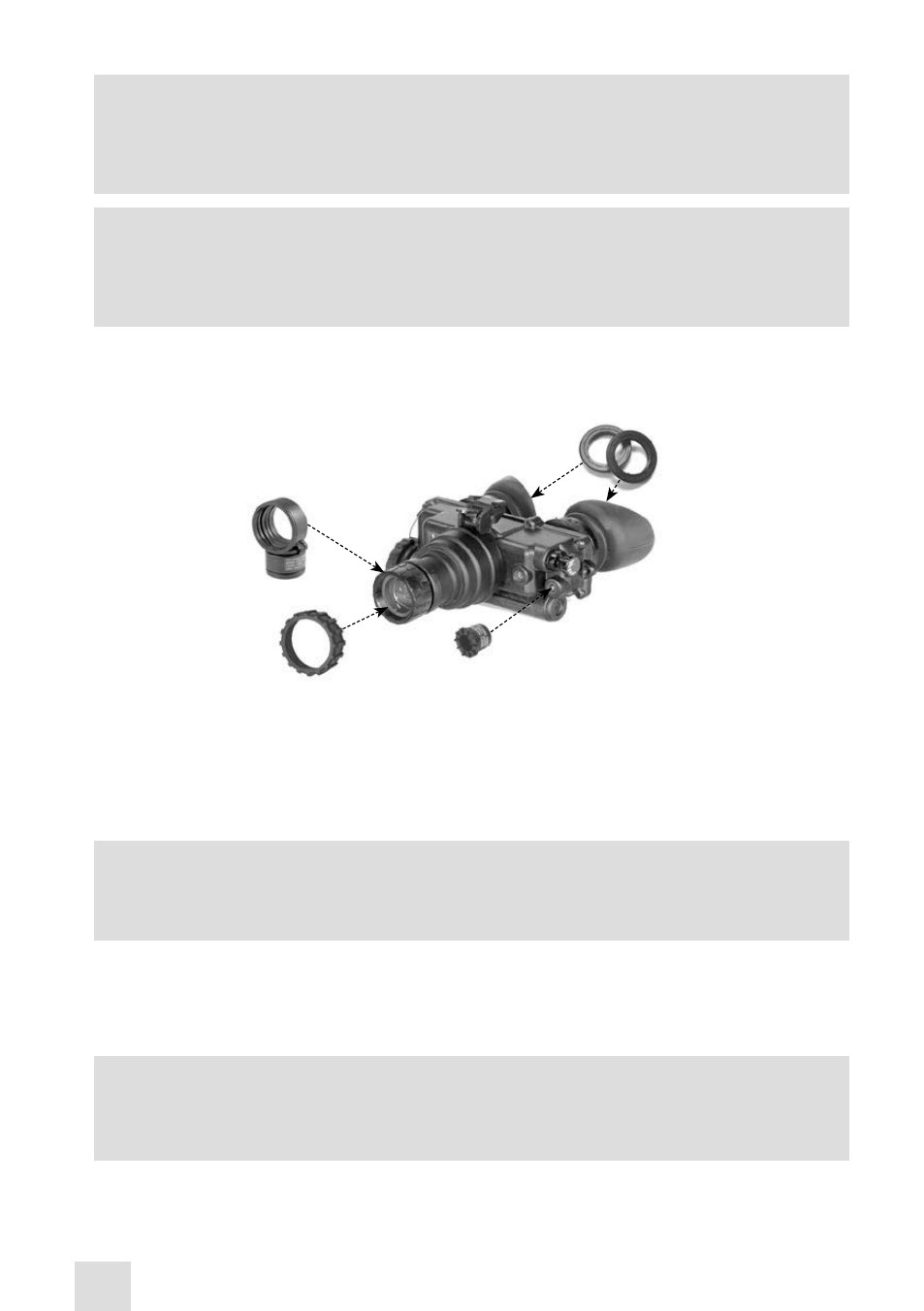

FIGURE 3-3. INSTALLATION OF DEMIST SHIELDS, SACRIFICIAL WINDOW
