12
1
2
5
4
6
8
13
9
10
3* 12
11
7

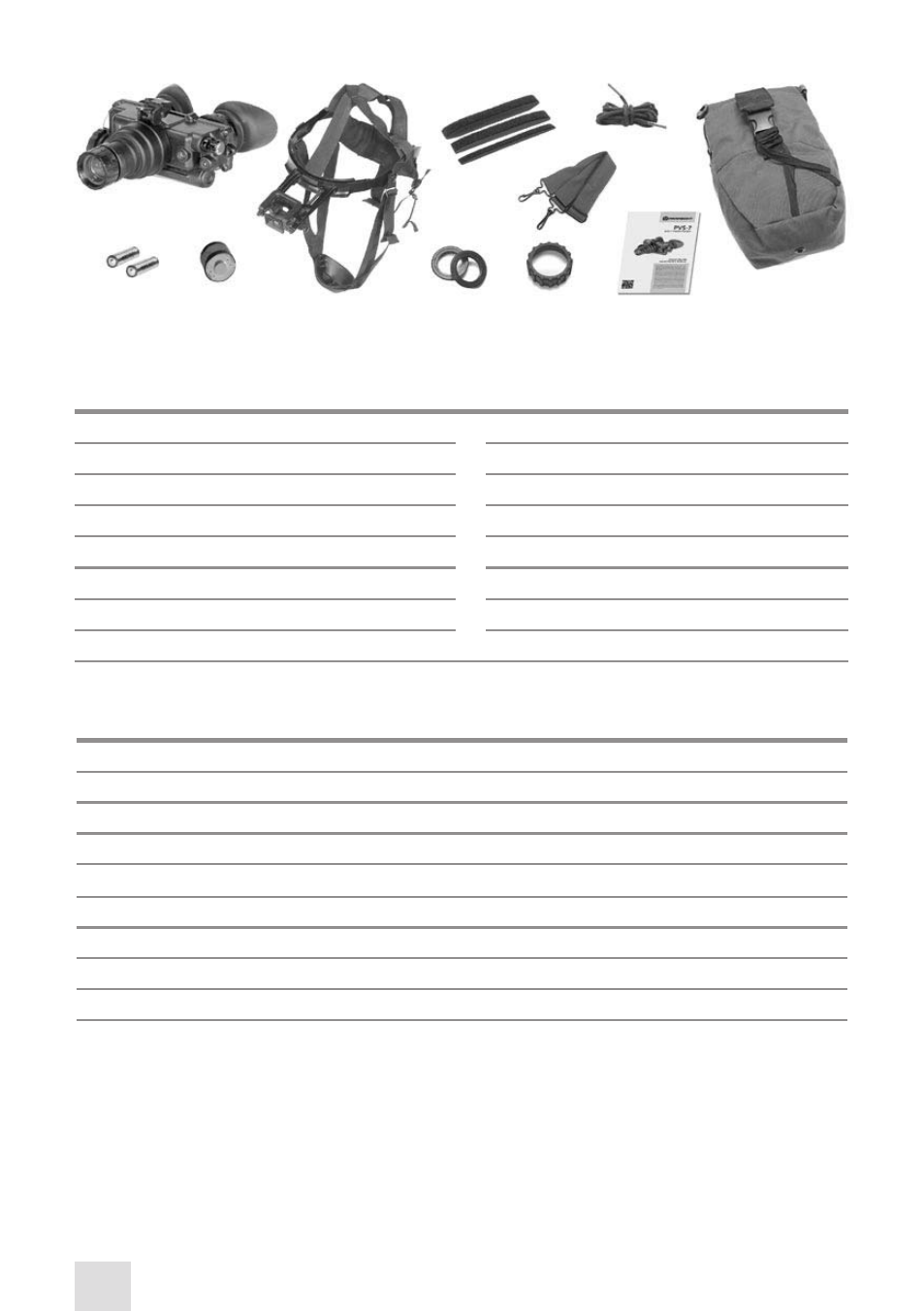

FIGURE 2-1. PVS-7 COMPONENTS
TABLE 2-1. PVS-7 SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 PVS-7 Assembly 8 Neck Cord
2 AA Alkaline Batteries 9 Shoulder Strap Assembly
3* Image intensifier Tube 10 Demist Shield Assembly
4 Large Brow Pad Head mount Assembly 11 Sacrificial Window
5 Large Brow Pad 12 Operator’s Manual
6 Medium Brow Pad 13 Carrying Case
7 Thin Brow Pad 14 Lens Paper (Not Shown)
* Equipment with variants.
TABLE 2-2. PVS-7 OPTIONAL EqUIPMENT
ITEM DESCRIPTION PART NO.
1 MICH Helmet Mount Assembly USA #107 ANHM000005
2 PASGT Helmet Mount Assembly USA #108 ANHM000006
3 3x Mil-Spec Magnifier Lens #99 ANAF3X0003
4 5x Mil-Spec Magnifier Lens #100 ANAF5X0001
5 Magnetic Compass #110 ANKI000009
6 IR850 Detachable Long Range Infrared illuminator #76 IAIR850IR000001
7 SKB Mil-Standard Hard Shipping/Storage Case (F100) ANHC000001
8 IR Spot/Flood Lens
