Air Suspension SK-2461 REV 2 User Manual
Page 5
5
REV 2
02/12/2013
SK-2461
SK-
2461
ARNOTT REMANUFACTURED
REAR LEFT ABC STRUT FOR
2002-2006
MERCEDES-BENZ S-CLASS (AMG)
2002-2006
MERCEDES-BENZ CL-CLASS (AMG)

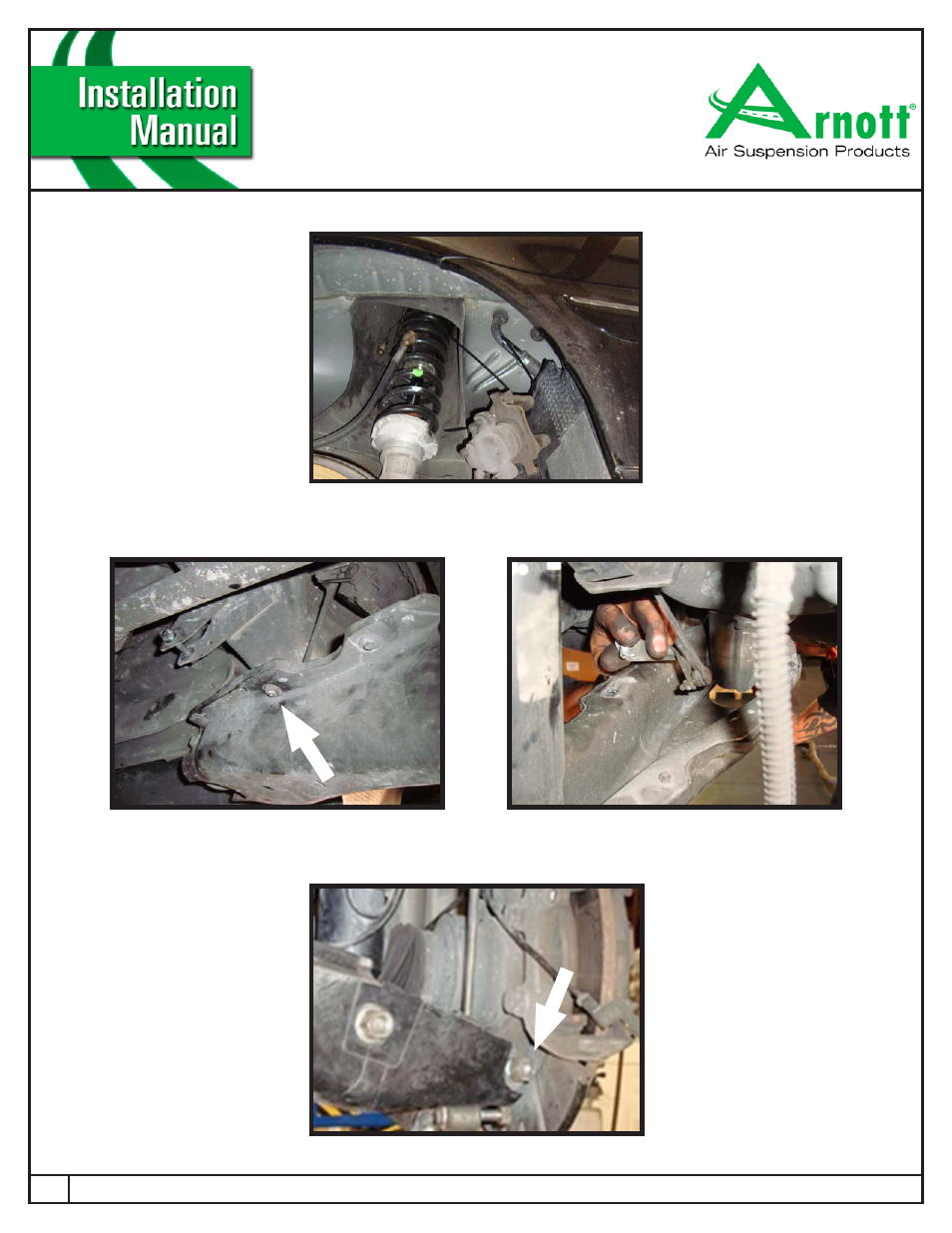

11.
SECURE THE CALIPER. (FIGURE G)
12.
REMOVE THE NUT TO DISCONNECT THE TRAVEL SENSOR. (FIGURE H)
13.
DISASSEMBLE THE OUTER SUSPENSION ARM. (FIGURE I)
FIGURE G
FIGURE H
FIGURE I
