Air Suspension SK-2461 REV 2 User Manual
Page 4
4
REV 2
02/12/2013
SK-2461
SK-
2461
ARNOTT REMANUFACTURED
REAR LEFT ABC STRUT FOR
2002-2006
MERCEDES-BENZ S-CLASS (AMG)
2002-2006
MERCEDES-BENZ CL-CLASS (AMG)
8.

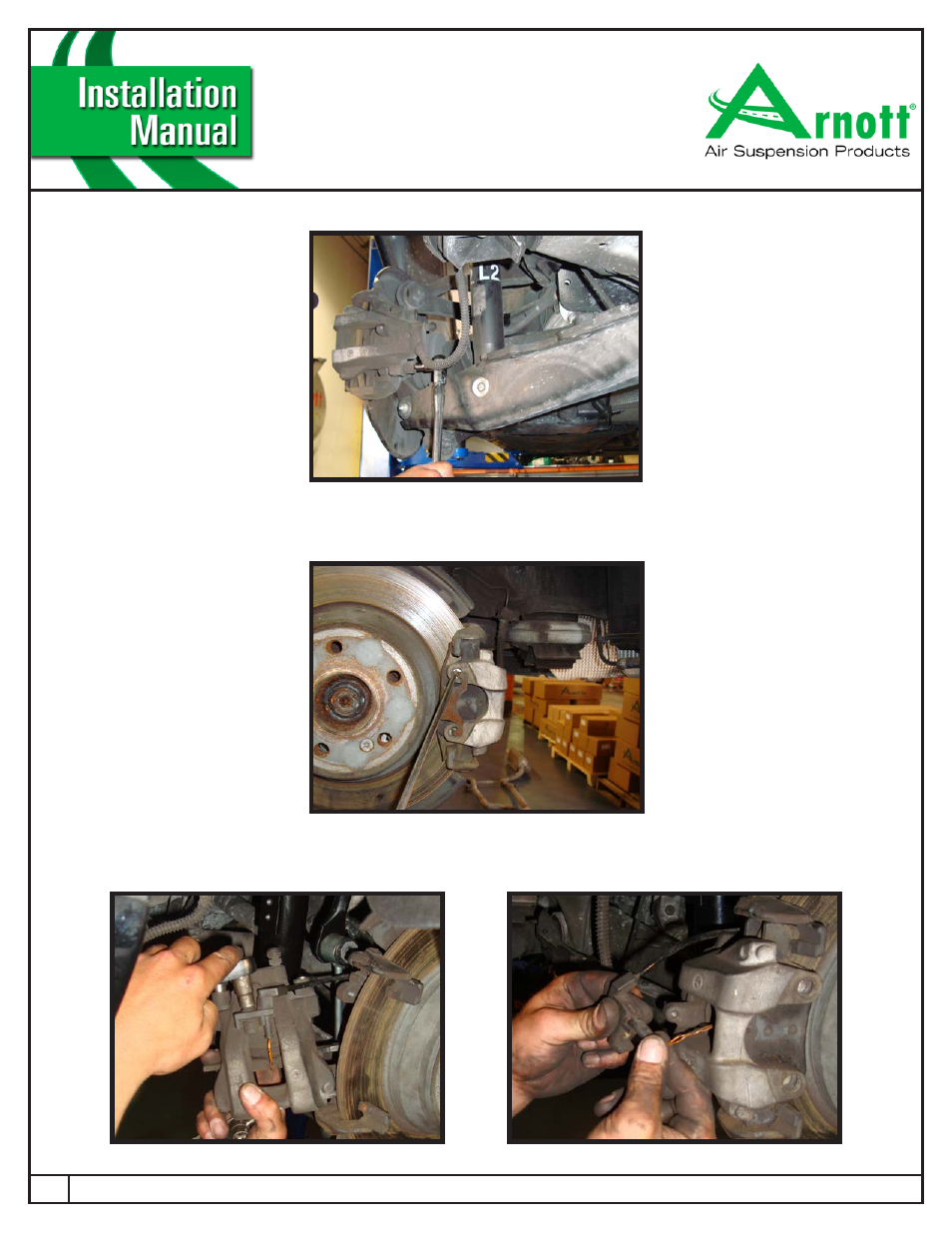

REMOVE TWO (2) BOLTS ON THE BACKSIDE OF THE CALIPER. (FIGURE D)
9.
REMOVE THE RETAINING CLIP. (FIGURE E)
10.
REMOVE THE BRAKE PAD SENSOR BRACKET (PASSENGER SIDE ONLY). (FIGURE F)
FIGURE D
FIGURE E
FIGURE F
