8 REV 3 06/06/2014 C-2293
C -2293
ARNOTT high pERfORmANCE
COil spRiNg CONVERsiON kiT
fOR 2003-2006
liNCOlN NAVigATOR/fORD EXpEDiTiON

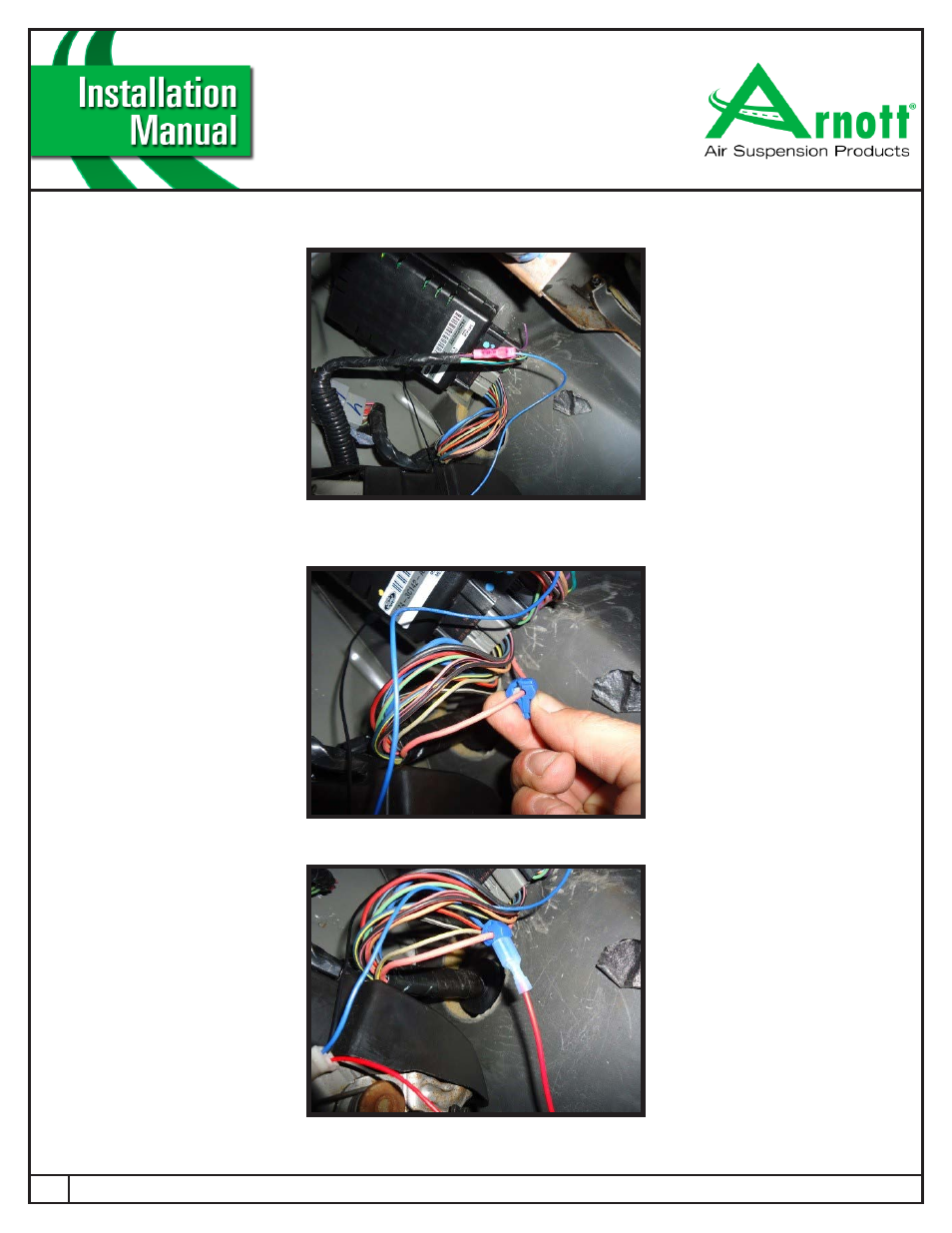

4. strip tHe enD oF tHe Wire anD criMp tHe BlUe Wire FroM tHe electronic BYpass MoDUle to
tHe pUrple Wire on tHe veHicles siDe oF tHe control MoDUles Wiring Harness. (FigUre D)
5. locate pin# 5 (larger reD Wire) oF tHe greY plUg. Using tHe sUpplieD 3-WaY Wire splice, criMp
tHe connector to tHe Wire. (FigUre e)
6. connect tHe reD Wire FroM tHe electronic BYpass MoDUle to tHe 3-WaY Wire splice. (FigUre F)
FigUre D
FigUre e
FigUre F
7. installation coMplete.
