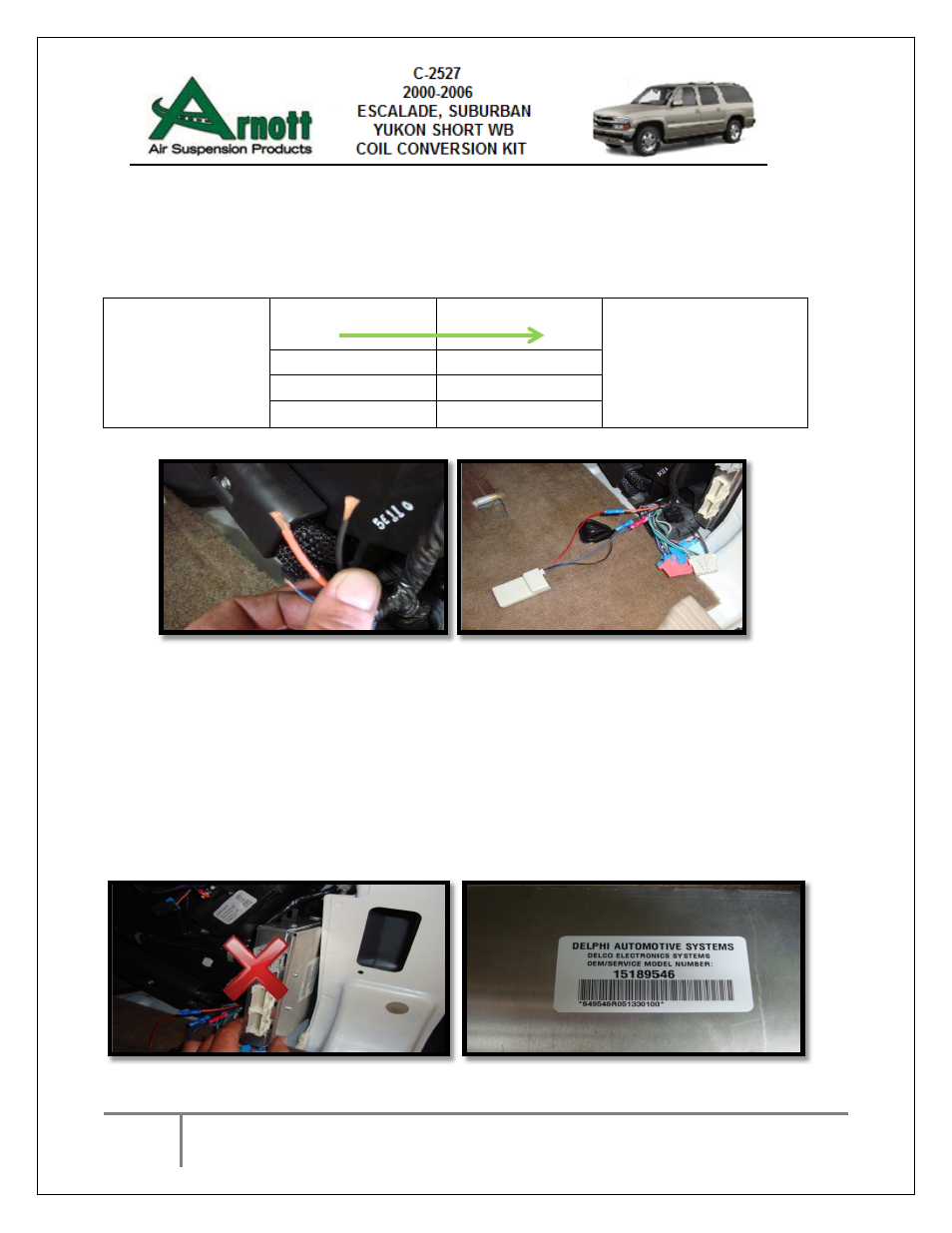

Air Suspension C-2527 Rev 2 User Manual
Page 8
8
C-2527 REV 2 05/24/13
3.0 LOCATE PIN B-8 ON PINK 24 PIN CONNECTOR AND CUT WIRE.
(FIGURE C)
4.0 CONNECT TO THE
WIRING HARNESS SIDE!
(CHART10-4) (FIGURE D)
CHART 10-4
FIGURE C
FIGURE D
5.0 CONTROLLER (FIGURE E)
6.0
CONTROLLER I.D. PLATE (FIGURE F)
7.0
DO
NOT
RECONNECT AIR RIDE CONTROLLER!
8.0 REPLACE FACTORY 25 A FUSE WITH SUPPLIED 5 A FUSE.
FIGURE E FIGURE F
SPOOFER
SIDE
FROM
TO
WIRING
HARNESS SIDE
BLUE
BLUE
RED
ORANGE
BLACK
BLACK
