Air Suspension C-2527 Rev 2 - Manual (Page 6)

6 C-2527 REV 2 05/24/13

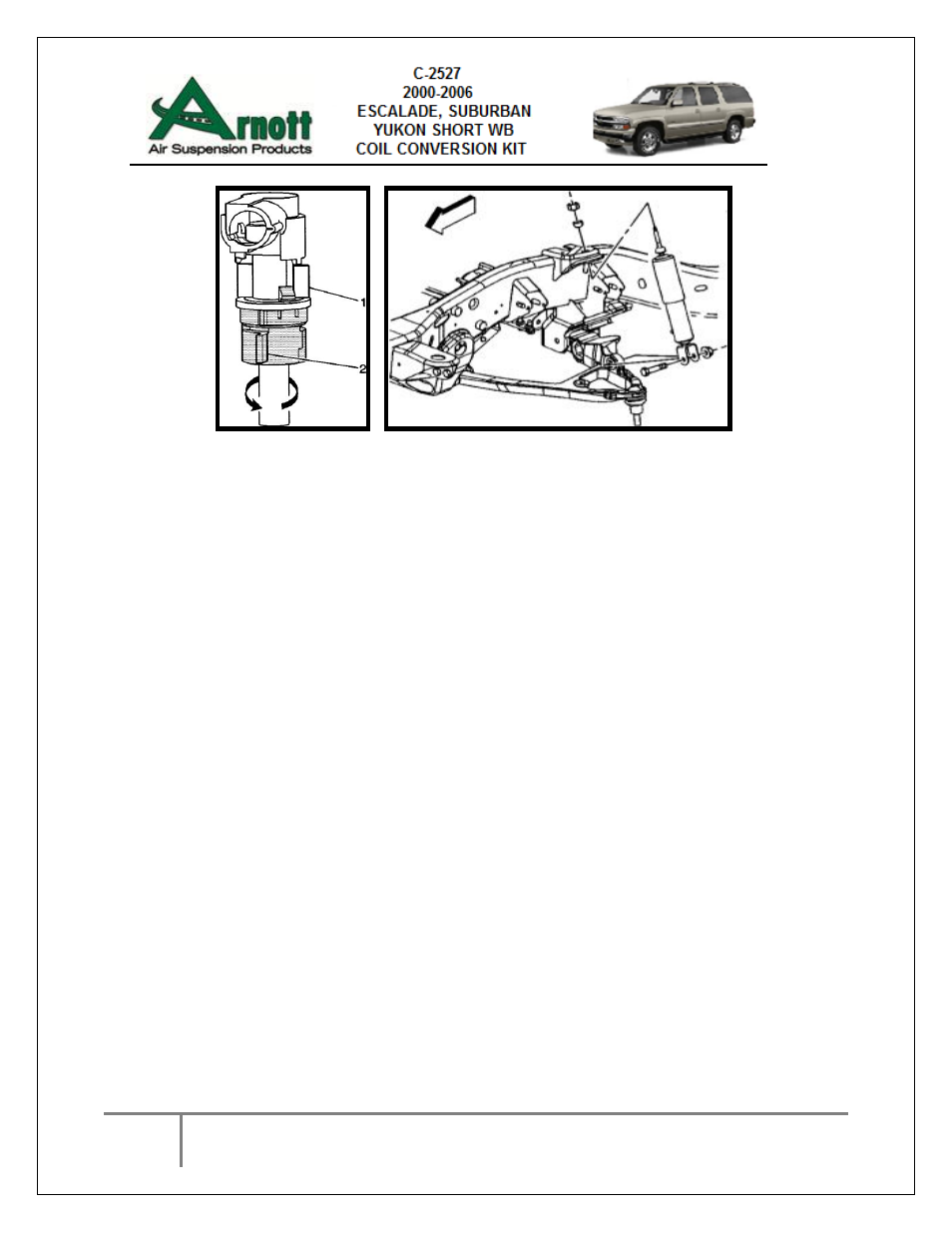

FIGURE 10-2 FIGURE 10-3
3.0 Remove the upper insulator.
4.0 Remove the shock absorber mounting bolts at the lower control arm. Remove the
shock absorber through the lower control arm from below. (FIGURE 10-3)
Installation:
1.0 Support the lower control arm with a suitable jack in order to align the tennon with
the mounting hole if equipped with selectable ride.
2.0 Install shock absorber through the lower control arm from below .
3.0 Connect tennon through the mounting hole in the upper spring pocket . (FIGURE
10-4)
4.0 Align the shock absorber with the mounting hole in the lower control arm.
(FIGURE 10-5)
5.0 Install shock absorber mounting bolt to the lower control arm. Tighten to 70 ft. lbs.
(25 Nm). (FIGURE 10-5)
6.0 Connect upper insulator to the shock absorber . (FIGURE 10-3)
7.0 Install nut to the tennon end. Do not tighten the nut.
8.0 Remove the safety stands.
9.0 Lower the vehicle. Hold the tennon end with a wrench while torquing the nut.
Tighten the nut to 15 ft. lbs. (20 Nm).
