Air Suspension C-2527 Rev 2 User Manual
Page 3
3
C-2527 REV 2 05/24/13
4.0
Disconnect the air line
by turning clip 90 ̊. Locate and disconnect ride height
sensor.
5.0
Remove the upper air shock nut and bolt.
6.0
Disconnect brake line which is bolted to rear axle differential.
7.0
Disconnect sway bar and link. Have a floor jack under axle.
8.0
Remove the lower air shock nut and bolt.
9.0
Remove air shock, (Install Spring before completing shock Install).
10.0
Removal complete, installation is in the reverse order of removal. Install upper
shock bolt, and allow shock to hang until spring installation is complete. Torque
shock bolts to 70 ft-lbs.

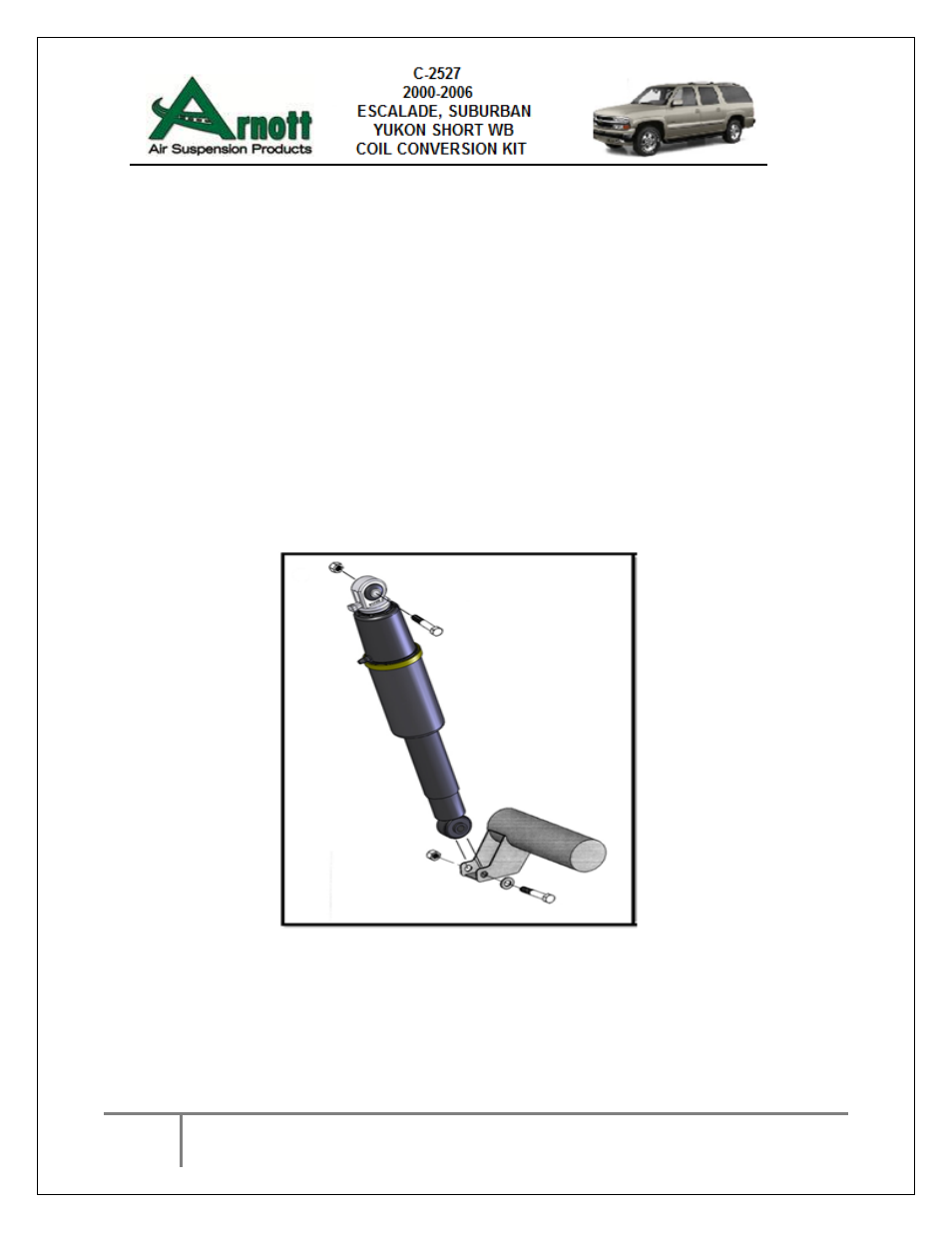

FIGURE B
