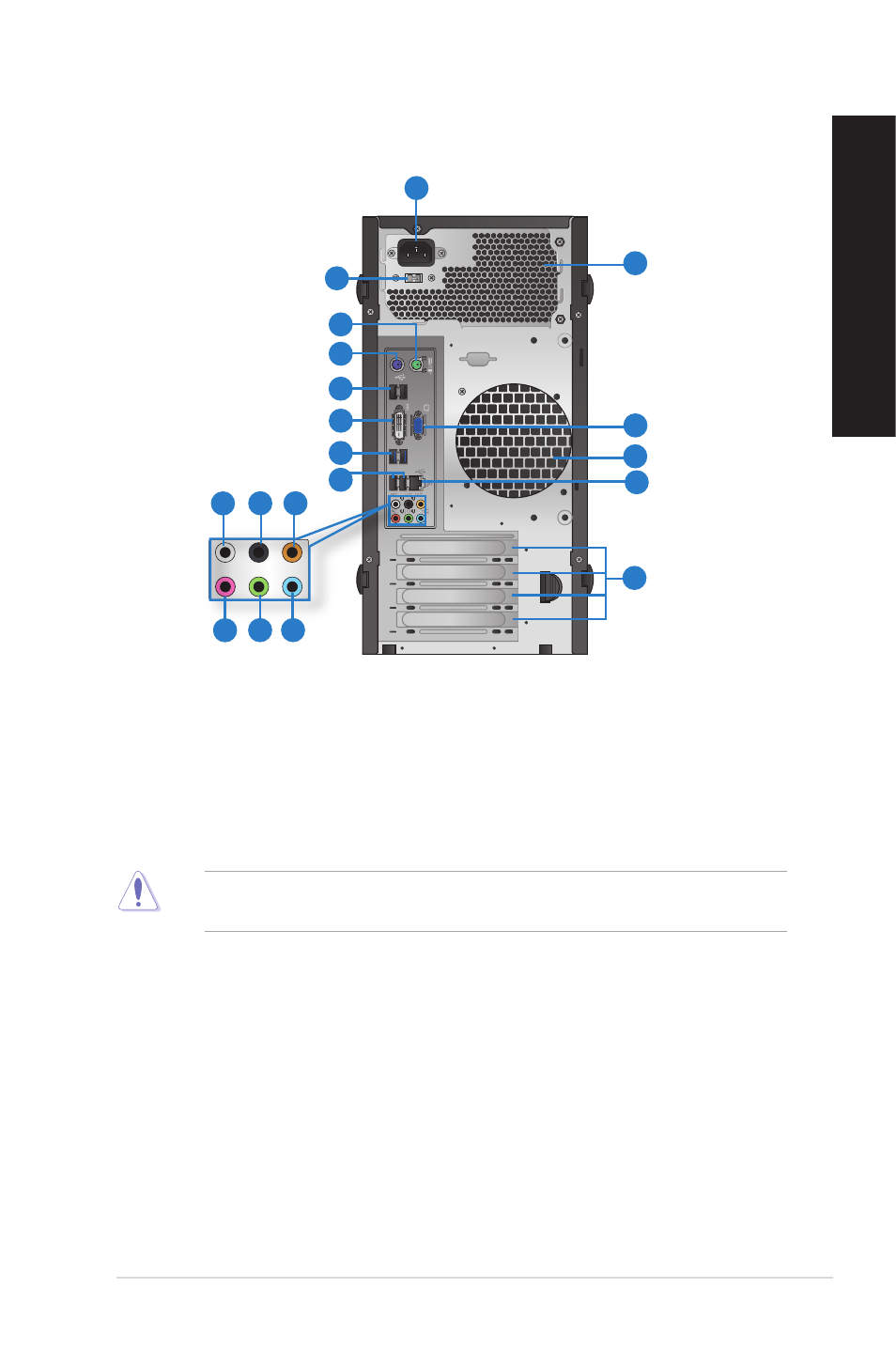

Rear panel
1. Power connector. Power connector. Plug the power cord to this connector.
Setting the switch to 115V in a 230V environment or 230V in a 115V environment will
seriously damage the system!
3. PS/2 mouse port (green). This port is for a PS/2 mouse.
4. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
5. USB 2.0 ports. These Universal Serial Bus 2.0 (USB 2.0) ports connect to USB 2.0
devices such as a mouse, printer, scanner, camera, PDA, and others.
6. D�I-D port. D�I-D port. This port is for any DVI-D compatible device and is HDCP compliant
allowing playback of HD DVD, Blu-ray, and other protected content.
BM6630/MD510 and BM6330
1
2
4
3
5
6
7
5
14
15
16
16
17
8 9 10
11 12 13
2 . �oltage selector. Use this switch to select the appropriate system input voltage
according to the voltage supply in your area. If the voltage supply in your area is 100-
127V, set the switch to 115V. If the voltage supply in your area is 200-240V, set the
switch to 230V.
