ASUS SK8N motherboard user guide 2-5
2.4.2 Installing the CPU
Follow these steps to install a CPU.

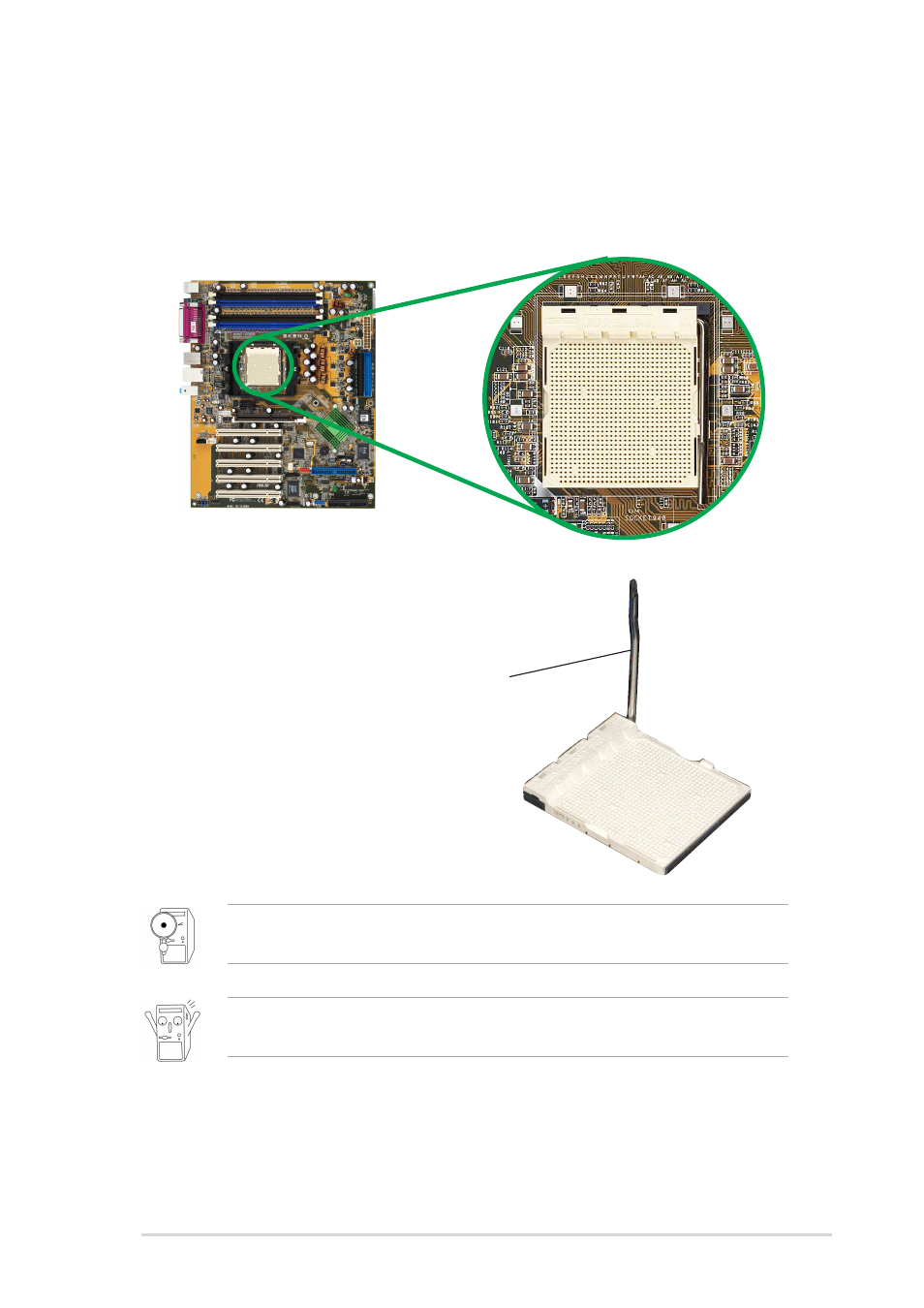

1. Locate the 940-pin ZIF socket on the motherboard.
2. Unlock the socket by pressing the
lever sideways, then lift it up to a
90°-100° angle.
Socket Lever
Make sure that the socket lever is lifted up to 90°-100° angle,
otherwise the CPU does not fit in completely.
Incorrect installation of the CPU into the socket may bend the pins and
severely damage the CPU!
