ASUS CG8580 15
English
English
Activity/Link.LED............................Speed.LED
Status
Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN.port
SPEED.
LED
ACT/LINK.
LED

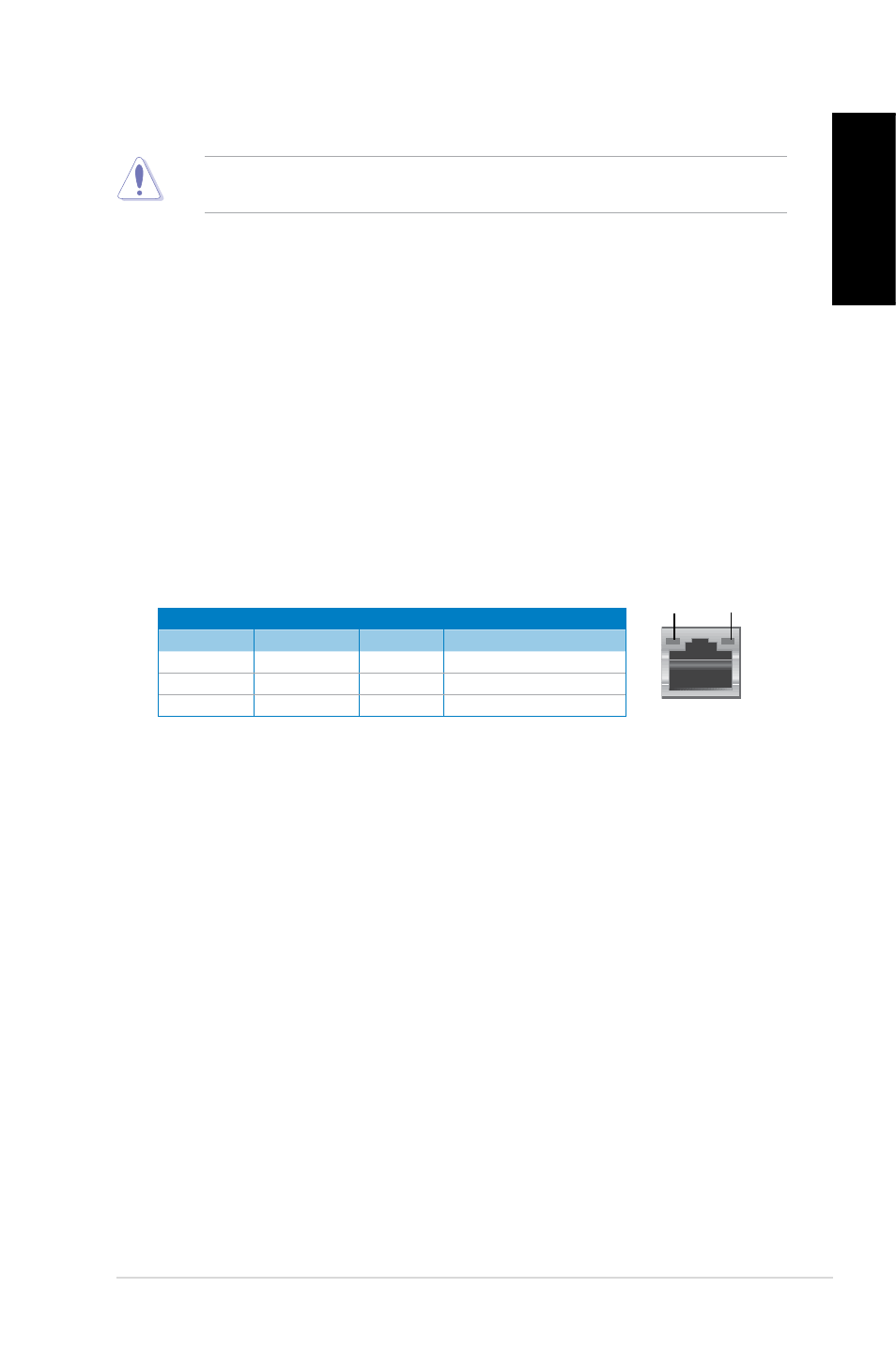

LAN.port.LED.indications
21. Sound card ports (removable). . Sound.card.ports.(removable)..These ports connect to your output devices such as
microphone, headset and speakers.
22.. ASUS Graphics Card (optional). ASUS.Graphics.Card.(optional). The display output ports on this optional ASUS
Graphics Card may vary with different models.
23.. Expansion slot bracket. Expansion.slot.bracket. Remove the expansion slot bracket when installing an
expansion card.
13.. Air.vents. These vents allow air ventilation.
14.. Power.switch..Switch to turn ON/OFF the power supply to your computer.
15... Power.connector.(input.rated:.100~120/200~240Vac,.60/50Hz,.10/5A)..Plug the
power cord to this connector.
16.. PS/2.Keyboard./.Mouse.combo.port. This port is for a PS/ keyboard or mouse.
17.. Optical S/PDIF�OUT port.
Optical.S/PDIF�OUT.port. This port connects to an external audio output device via
an optical S/PDIF cable.
18.. HDMI.port. This port is for a High-Definition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
19. VGA port. . VGA.port. This port is for VGA-compatible devices such as a VGA monitor.
20.. LAN (R�-45) port. LAN.(R�-45).port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
DO NOT block the air vents on the chassis. Always provide proper ventilation for your
computer.
