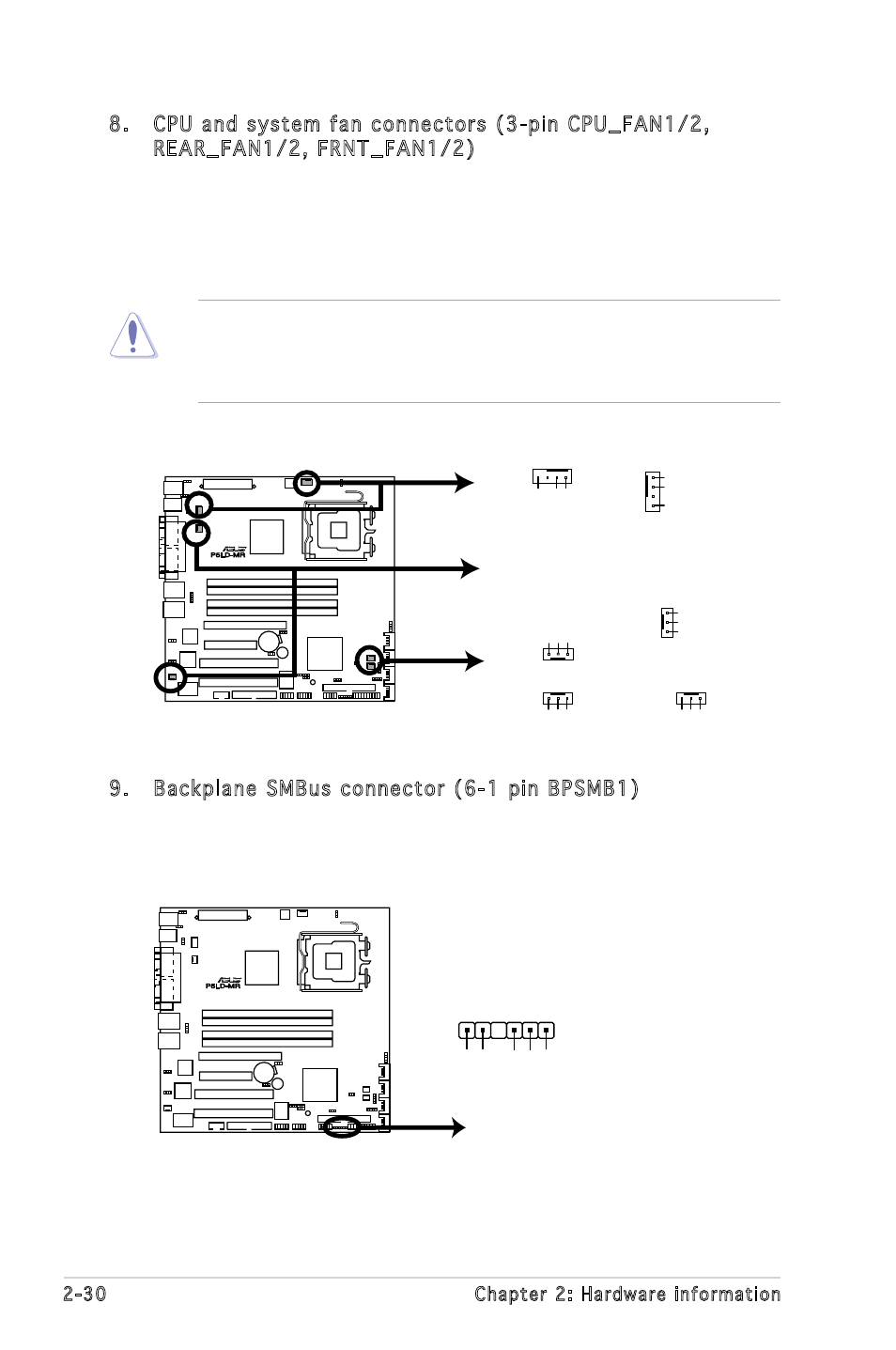

2-30 Chapter 2: Hardware information
8. CPU and system fan connectors (3-pin CPU_FAN1/2,
REAR_FAN1/2, FRNT_FAN1/2)
The fan connectors support cooling fans of 350 mA ~ 740 mA (8.88
W max.) or a total of 2.1 A ~ 4.44 A (53.28 W max.) at +12V.
Connect the fan cables to the fan connectors on the motherboard,
making sure that the black wire of each cable matches the ground pin
of the connector.
Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! Do not place jumper caps on the
fan connectors!
9. Backplane SMBus connector (6-1 pin BPSMB1)
This connector allows you to connect SMBus (System Management
Bus) devices. Devices communicate with an SMBus host and/or other
SMBus devices using the SMBus interface.
R
P5LD-MR
P5LD-MR Fan Connectors
REAR_FAN2 REAR_FAN1
FRNT_FAN2 FRNT_FAN1
GND
Rotatio
n
+12V
CPU_FAN1 CPU_FAN2
GND Rotatio
n
+12V
GND
Rotation
+12V
GND
Rotatio
n
+12V
FRNT_FAN2
FRNT_FAN1
REAR_FAN1
REAR_FAN2
GND
FANPWR2
FANOUT4
CPU_FAN2 CPU_FAN1
GND FANPWR2 FANOUT4
P5LD-MR SMBus Connector
BPSMB1
1
I2C_CLK
GN
D
I2C_D
AT
A
+5V
FANOUT
R
P5LD-MR
