1 - 2 8

C h a p t e r 1 : P r o d u c t i n t r o d u c t i o n

9 .

I n t e r n a l a u d i o c o n n e c t o r s ( 4 - p i n C D 1 , A U X 1 )

I n t e r n a l a u d i o c o n n e c t o r s ( 4 - p i n C D 1 , A U X 1 )
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, MPEG card or modem.

P5S800-VM

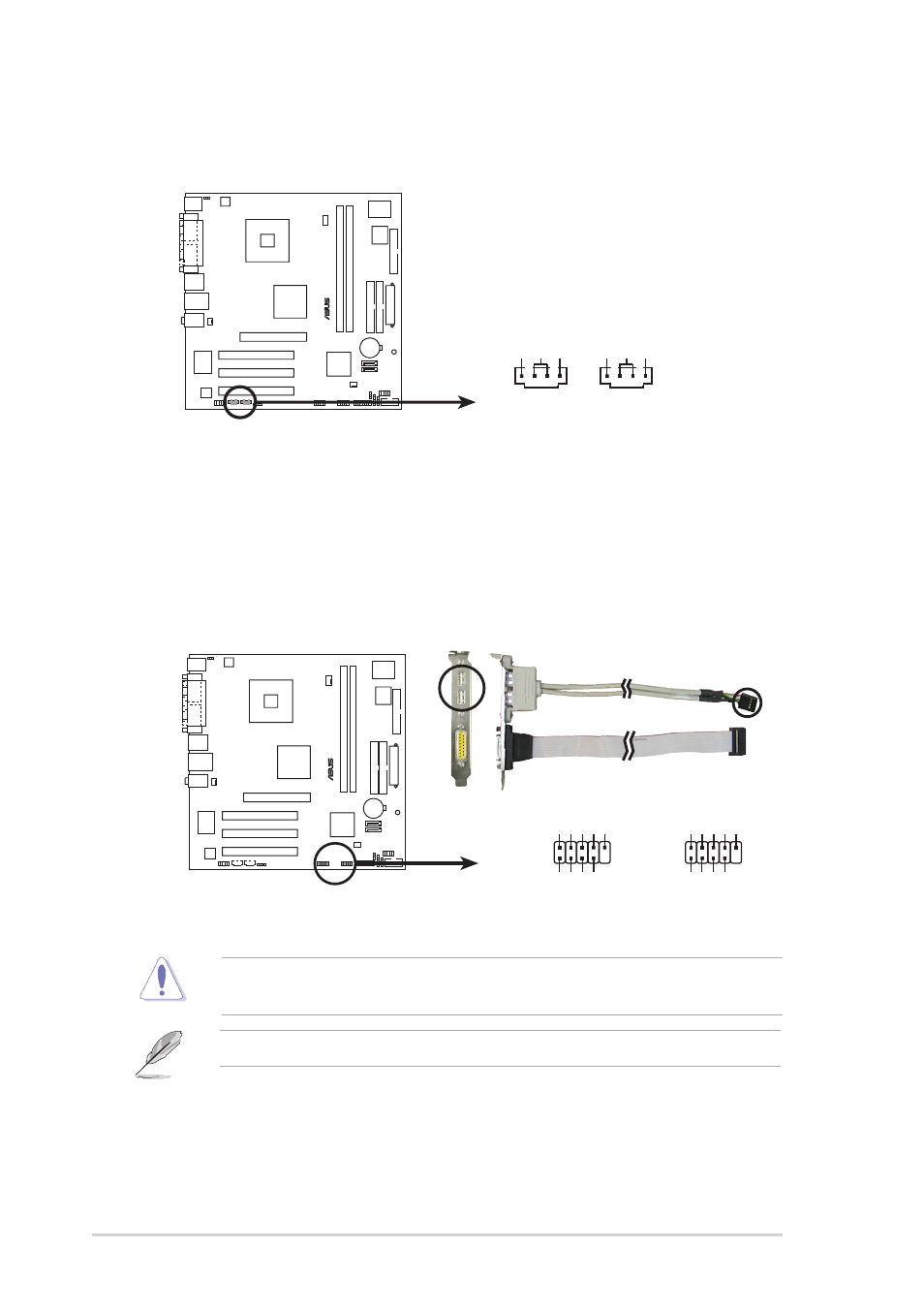

P5S800-VM Internal audio connectors

AUX1 (White) CD1 (Black)

Right A

udio Channel

Left A

udio Channel

Ground

Right A

udio Channel

Left A

udio Channel

Ground

1 0 .

1 0 . USB connectors (10-1 pin USB56, USB78)

U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 )

These connectors are for USB 2.0 ports. Connect the optional
USB/GAME module cable to any of these connectors, then install the
module to a slot opening at the back of the system chassis. These
USB connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.

P5S800-VM

P5S800-VM USB 2.0 connectors

USB56

USB+5V

USB_P6-

USB_P6+

GND

USB+5V

USB_P5-

USB_P5+

GND

USB78

USB+5V

USB_P8-

USB_P8+

GND

USB+5V

USB_P7-

USB_P7+

GND

Never connect a 1 3 9 4 c a b l e

1 3 9 4 c a b l e

1 3 9 4 c a b l e to the USB connectors. Doing so will

damage the motherboard!

The USB/GAME module is purchased separately.
