Page 16

Chapter 1: Product introduction

1-6

1.6

Internal features

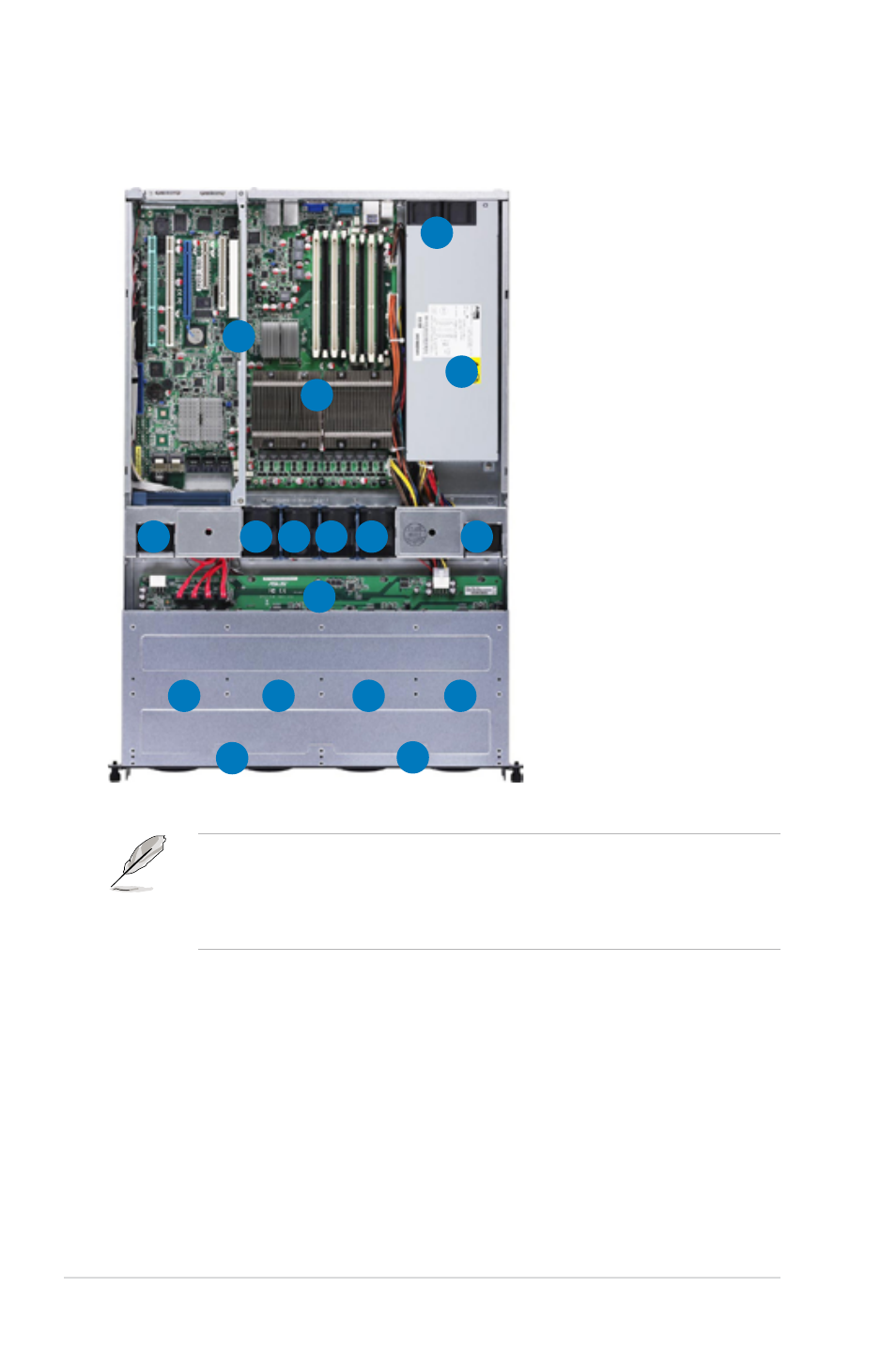

The barebone server includes the basic components as shown.

• The barebone server does not include a floppy disk drive. Connect a USB

floppy disk drive to any of the USB ports on the front or rear panel if you

need to use a floppy disk.

• Only ASUS CD/DVD-ROMs fit the optical drive bay.

1. PCI Express x16 riser

card bracket

2. Power fans
3. ASUS DSEB-DG/SAS/

RS160-S5 server board

4. Power supply
5. System fans
6. SATA II /SAS backplane

(ASUS BP4LX-R10)

7. Hot-swap HDD tray 1 -

Connects to SATA1 port

(Port 0)

8. Hot-swap HDD tray 2 -

Connects to SATA1 port

(Port 1)

9. Hot-swap HDD tray 3 -

Connects to SATA1 port

(Port 2)

10. Hot-swap HDD tray 4 -

Connects to SATA1 port

(Port 3)

11. Front I/O board (hidden)
12. Slim-type optical drive
