Chapter 3: General Instruction

Focus: reduces the Horizonal-line noise and Vertical-line noise

of the image by adjusting (Phase) and (Clock) separately. The

adjusting range is from 0 to 100.

Phase adjusts the phase of the pixel clock signal. With a wrong phase

adjustment, the screen shows horizontal distrubances.

Clock (pixel frequency) controls the number of pixels scanned by one

horizontal sweep. If the frequency is not correct, the screen shows vertical

stripes and the image i not proportional.

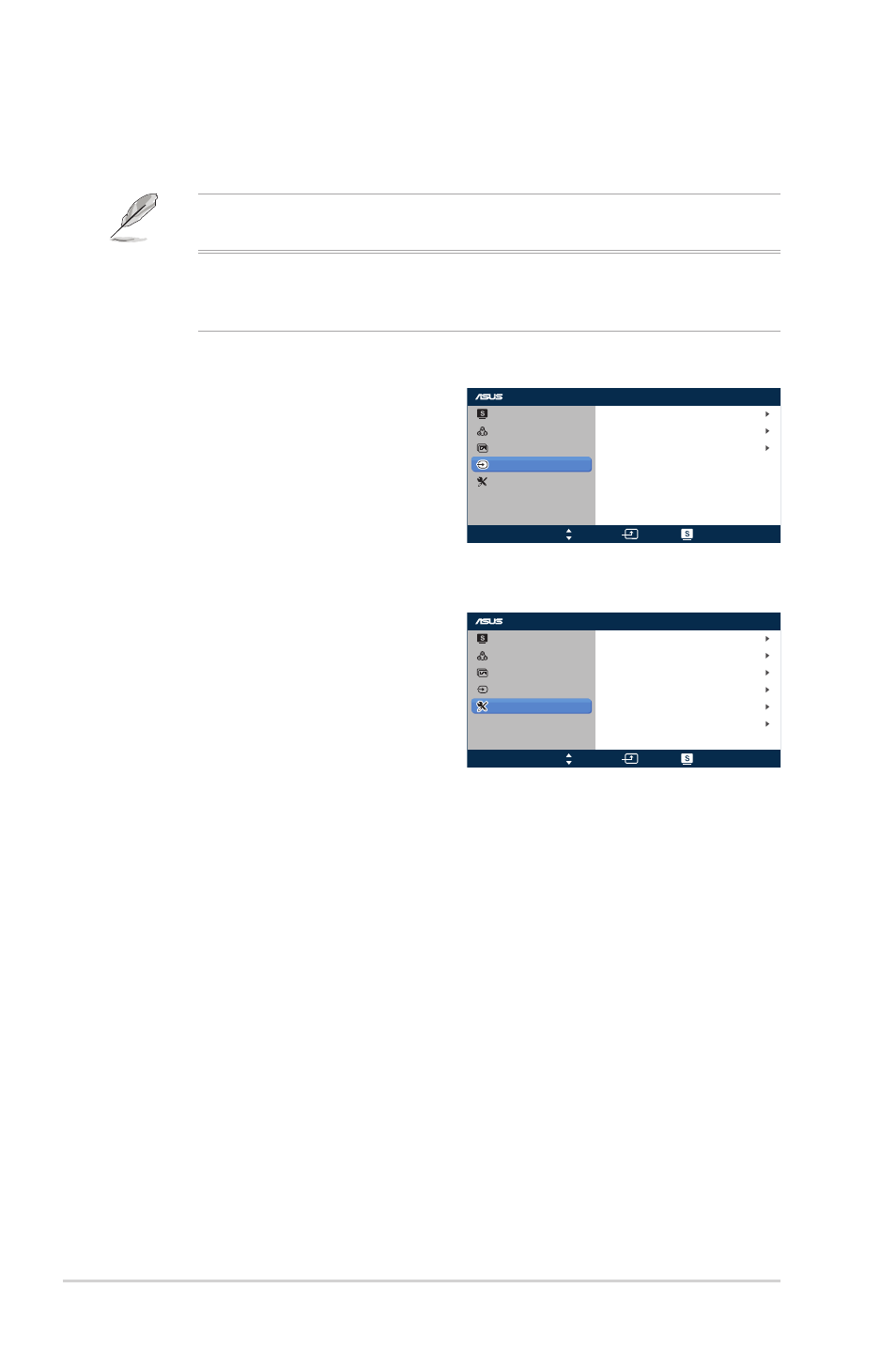

4. Input Select

In this menu, you can select your

desired input source: VGA, DVI,

or HDMI.

DVI: Available for model

VX238T, VX238N only.

HDMI: Available for model

VX238H only.

5. System Setup

Allows you to adjust the system.

Splendid Demo Mode:

splits the screen into two for

Splendid mode comparison.

Volume: Adjust the

earphone output volume

level. The adjusting range

is from 0 to 100.

ECO Mode: Activate the ecology mode for power saving. (Some

gray levels may not be distinguished if ECO is ON. Its brightness

is lower than that when setting the Contrast Ratio to 100.)

OSD Setup: Adjust the horizontal postition (H-Position), vertical

position (V-Position), OSD Timeout, DDD/CI, and Transparency

of the OSD screen.

Language: Select OSD language. The selections are English,

French, German, Spanish, Italian, Dutch, Russian, Traditional

Chinese, Simplified Chinese, and Japanese.

Information: Display the monitor information of Input Port,

Resolution, H-freq., V-freq, and Model Name.

All Reset: Set to “Yes” to revert all settings to the factory default

status.
