2.3 Connecting the cables

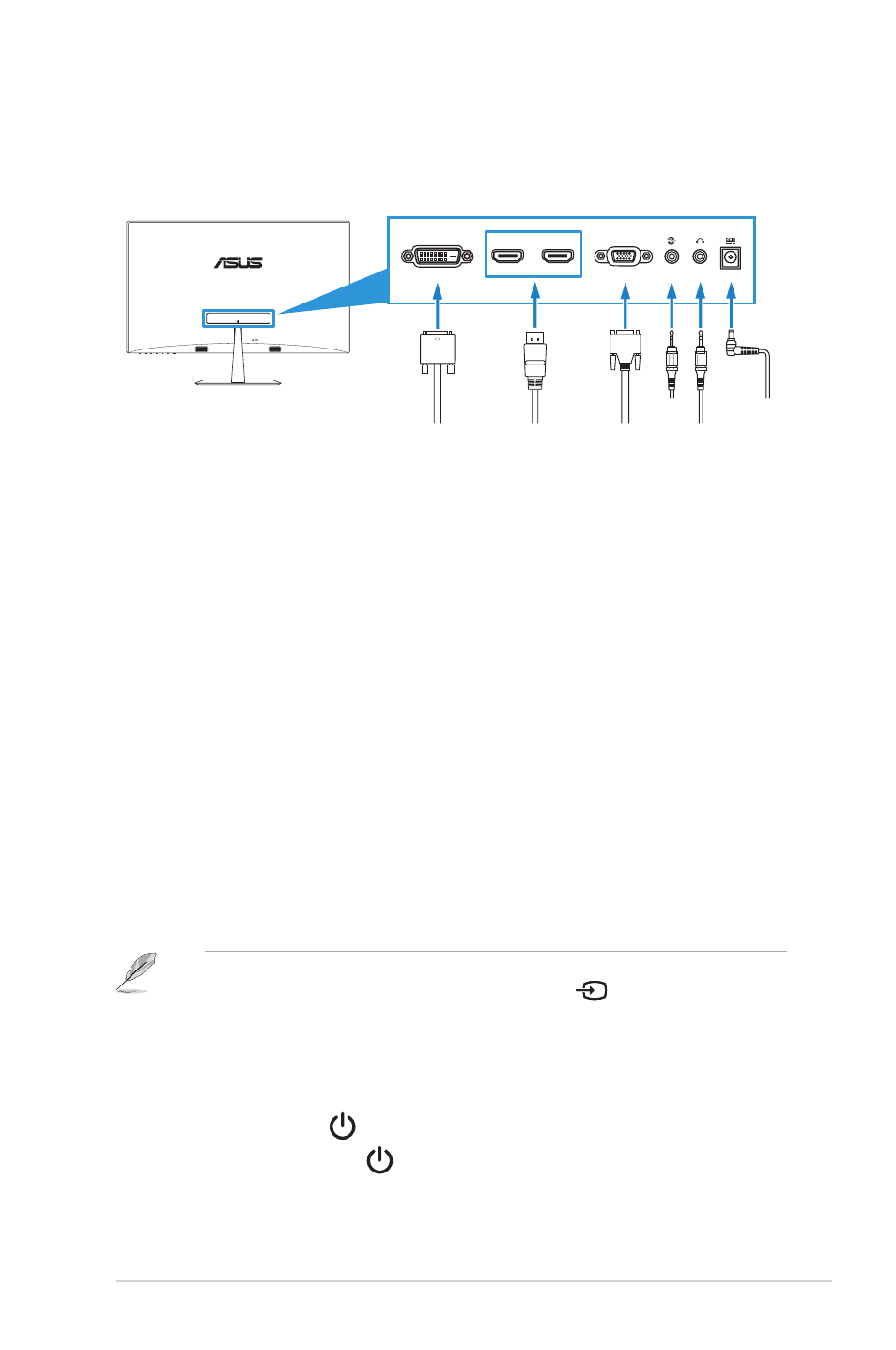

Connect the cables according to the following instructions:

VGA

HDMI-2

DVI

HDMI-1

DVI

HDMI

Audio-in

DC-IN

VGA Earphone jack

To connect the audio cable: connect one end of the audio cable to

the monitor’s Audio-in port, the other end to the computer’s audio-out

port.

To connect the power cord:

a. Connect the adapter to the monitor's DC input.
b. Connect one end of the power cable to the adapter, and the other

end to a power outlet.

To connect the VGA/DVI/HDMI cable:

a. Plug one end of the VGA/DVI/HDMI cable to the monitor's VGA/

DVI/HDMI port.

b. Connect the other end of the VGA/DVI/HDMI cable to your

computer's VGA/DVI/HDMI port.

c. Tighten the two screws to secure the VGA/DVI connector.

To use the earphone: connect the end with plug type to the monitor’s

earphone jack.

For VX238H/T/N models, when multiple video signal cables are connected,

you can choose the desired signal by pressing the

Input Select key (for

VX238H) or select from the Input Select item in the OSD menu.

2.4 Turning on the monitor

Press the power button

. See page 1-2 for the location of the power

button. The power indicator

lights up in white to show that the monitor

is ON.
