Page 10
1-4
Chapter 1: Product introduction
1.5
Card installation

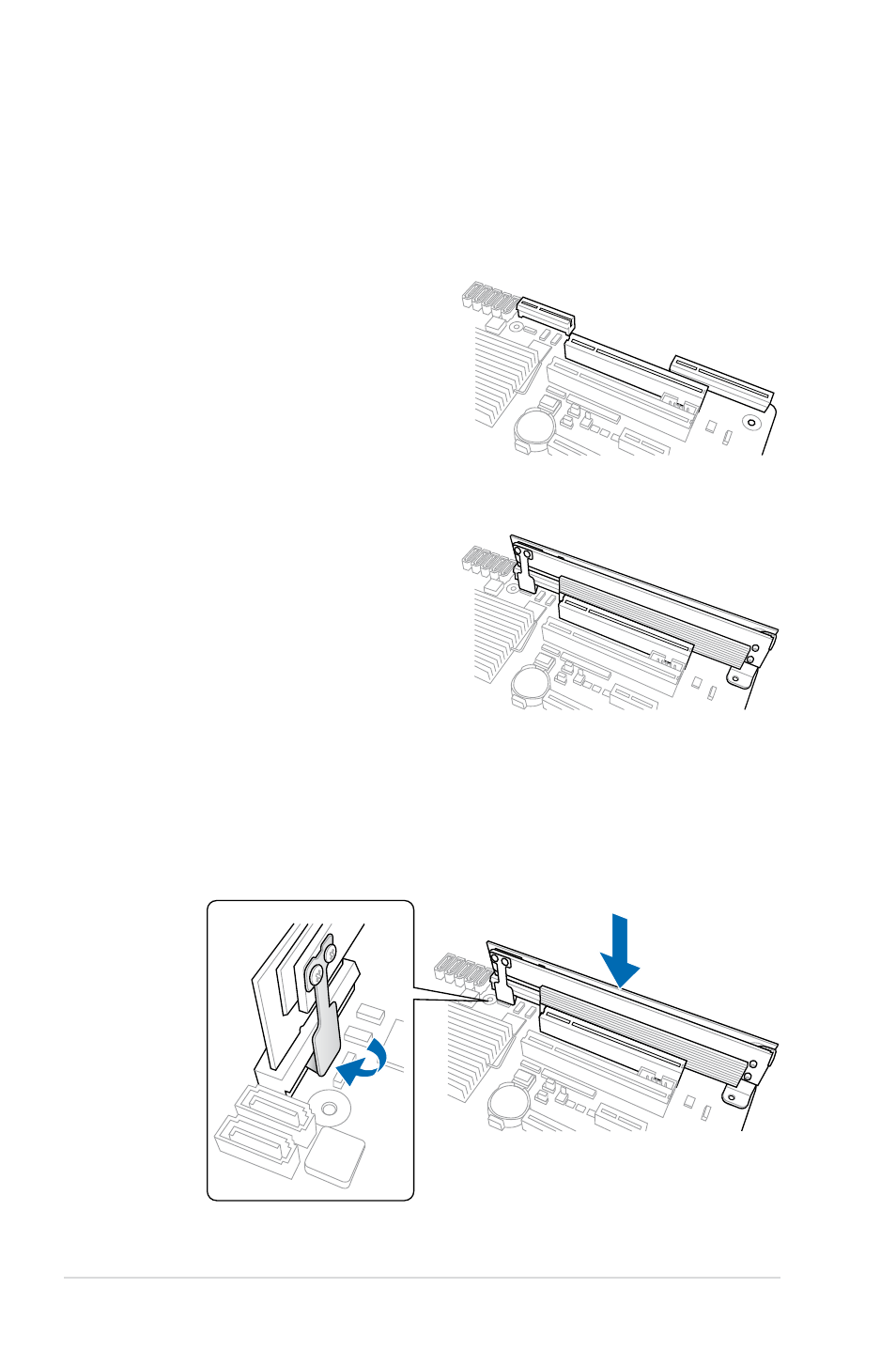

Follow the below instructions to install the RAID card on your motherboard.
For 2U, 5U, or pedestal server
To install ASUS PIKE 2308 SAS RAID card on a 2U, 5U, or pedestal server
1.
Locate the PIKE RAID card slot on the
motherboard.
2.
Align the golden fingers of the RAID
card with the PIKE RAID card slot.
3.
Insert the RAID card into the PIKE RAID card slot. Ensure the card is completely
inserted into the card slot, and the heatsink latch is completely hooked to the edge of
the card slot.
