WL-500gP Wireless Router User Manual

3

2. Connecting ADSL modem and wireless router

1. Package contents

• WL-500gP wireless router x 1
• Power adapter x 1
• Utility CD x 1
• RJ45 cable x 1
• Quick Start Guide x 1

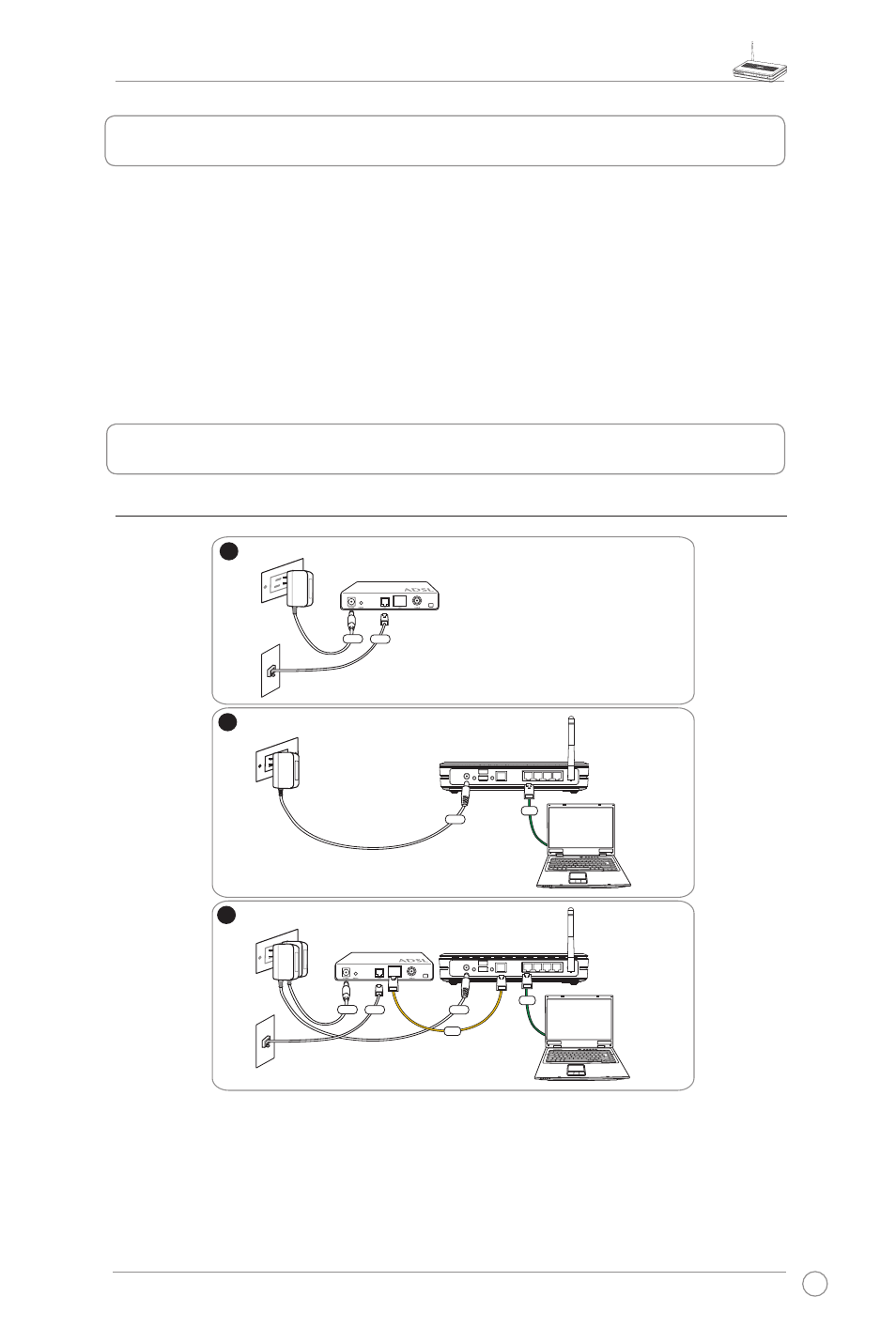

1) Cable connection

1

Modem

Wall telephone outlet

Wall power outlet

Phone

Power

2

Wall power outlet

ASUS Wireless Router

LAN

3

Modem

Wall telephone outlet

Wall power outlet

LAN

Power

Phone

Power

ASUS Wireless Router

WAN

Power
